A Comprehensive Guide to Understanding Switch Power Supplies

Have you ever wondered what makes your devices work or why the lights in your home are turned on? Switching power supplies are likely one of the reasons. Switching power supplies are essential in all electrical systems and have been keeping equipment up and running since the 19th century.

This blog post will explore what they are, how they work historically and today, and some best practices for choosing the right one for your needs. Armed with this information, you will be able to make an informed decision when considering purchasing a switching power supply!

A Comprehensive Guide to Understanding Switch Power Supplies title=

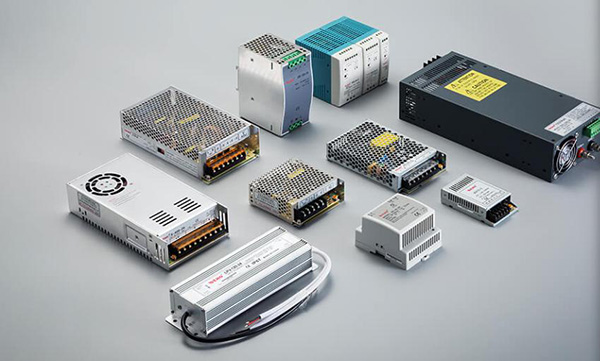

What is a switch power supply and why is it important?

A switching power supply, also known as a switching power supply or a switch-mode power supply, is an electronic device that converts electrical energy from one voltage level to another.

Unlike traditional linear power supplies that use a linear regulator to step down the voltage, a switching power supply utilizes a switching regulator to effectively regulate the voltage.

Switching power supplies are important for several reasons. First, they are commonly used in many electronic devices, including computers, televisions, and mobile phones, because they offer many advantages, including smaller size, lighter weight, and greater efficiency.

These power supplies also provide stable and reliable power to ensure the normal operation of electronic equipment.

Furthermore, as the demand for portable electronic devices continues to increase, the importance of switching power supplies has become more significant.

These power supplies enable efficient conversion of energy, extending battery life and reducing power consumption in portable devices.

The components of a switch power supply

Switching power supplies are complex electronic devices consisting of multiple key components that work together to convert and regulate voltage efficiently. Understanding these components is critical to understanding the inner workings of a switching power supply.

The first component is the input rectifier, which converts alternating current (AC) from the power supply into pulsating direct current (DC). This pulsating DC is then filtered by the input capacitor to smooth out the ripple and provide a more stable input voltage to the next component.

Next is the power switch, which is usually a transistor that controls the current flowing through the switching regulator. The switching regulator is the heart of the switching power supply. It continuously switches the power supply on and off at high frequency to regulate the output voltage.

To provide isolation and protection for connected equipment, many switching power supplies also contain an output transformer. The transformer steps down the voltage to the required level and provides galvanic isolation between the input and output circuits.

Additionally, other components such as feedback control circuitry, output capacitors, inductors, and diodes play a key role in maintaining output voltage stability, filtering noise, and regulating current flow.

Understanding the Basics of a Switch Power Supply

How does a switch power supply work?

Let’s delve into the inner workings of this complex device. Understanding how switching power supplies work is critical to understanding how efficiently and reliably they can power electronic devices.

The core working principle of a switching power supply is to convert and regulate voltage through a series of rapid power switching cycles.

This process involves several key stages:

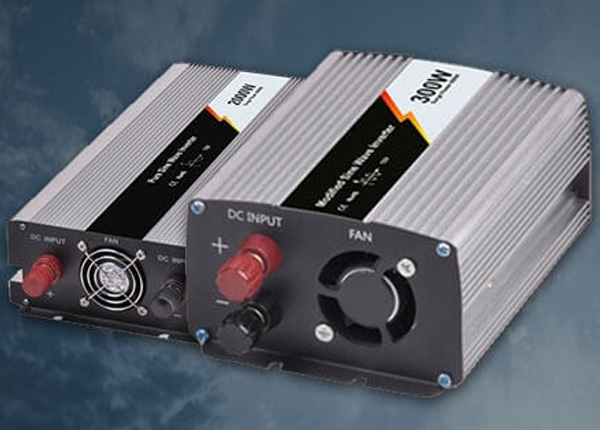

How to Choose the Right Switch Power Supply for Your Needs

Input rectification and filtering:

As mentioned in the previous section, the AC input voltage is rectified and filtered to produce a stable and smooth pulsating DC voltage.

Switching and Control:

Power switches (usually transistors) turn current on and off rapidly at high frequencies (usually tens or hundreds of kilohertz).

The feedback control circuit monitors the output voltage and adjusts the switching frequency or duty cycle to regulate the desired output voltage.

Types of Switch Power Supplies Available

Output regulation:

In order to ensure that the output voltage is stable and stable, the switching power supply uses a variety of technologies such as feedback loops, error amplifiers, and voltage reference circuits.

These components work together to maintain the desired output voltage level despite fluctuations in input voltage or load conditions.

Energy transfer:

Energy is transferred from the input circuit to the output circuit through a switching action.

This energy transfer is facilitated by switching regulators, which control the current and adjust the voltage level according to the load requirements.

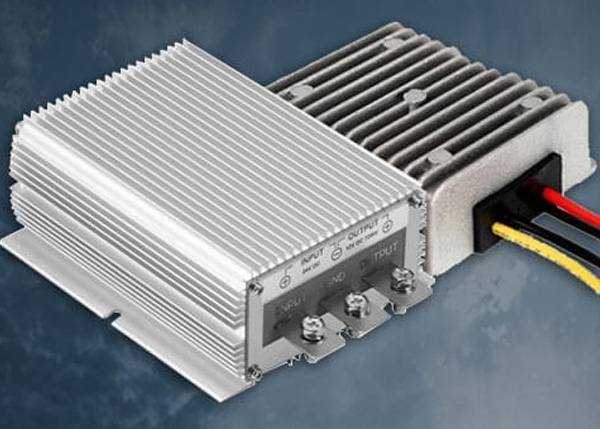

Types of switch power supplies available

Switching power supplies is a popular choice when it comes to powering electronic devices. Fortunately, there are several types of switching power supplies to meet various needs. A switching power supply converts AC power from an outlet into DC power that electronic devices can use.

Some common types of switching power supplies include AC-DC converters, DC-DC converters, and battery chargers. Other types of switching power supplies are also available, each with its own unique benefits. Whether your computer, smartphone, or other device needs switching power, there is sure to be a suitable type for you.

A Comprehensive Guide to Understanding Switch Power Supplies title=

Factors to consider when choosing a switch power supply

When choosing a switching power supply, there are several key factors to consider. These considerations will ensure that you select a power supply that is suitable for your specific application and meets your requirements.

The first factor to consider is power output. Determine how much power your device or system requires and make sure the switching power supply you choose can consistently provide that power. It is critical to consider maximum and minimum power requirements to ensure stability and efficiency.

Another important factor is the input voltage range. Different devices and systems have different input voltage requirements, so it is critical to choose a switching power supply that can accommodate the specific range required. This will ensure compatibility and prevent any potential damage to your device due to incorrect voltage levels.

Next, consider the efficiency of the switching power supply. Look for a power supply with a high-efficiency rating, as this will minimize energy waste and reduce heat production. A more efficient power supply will not only save you energy costs but also extend the overall lifespan of your equipment.

In addition, it is crucial to evaluate the reliability and durability of the switching power supply. Look for a power supply with high-quality components and a good reliability record. Consider factors such as temperature tolerance, resistance to shock and vibration, and any specialized certifications or ratings that indicate ruggedness.

Finally, consider the size and form factor of the switching power supply. Depending on your application and available space, you may need a compact or low-profile power supply. Make sure the power supply you choose will fit easily into your system and meet any installation or installation requirements.

A Comprehensive Guide to Understanding Switch Power Supplies title=

Conclusion

Understanding the basics of a switch power supply, along with its many benefits and advantages, can help you determine what kind of unit is right for your needs.

If you have any questions about using a switch power supply based on information from this blog post or need additional resources for further research, let me know your opinions in the comments below or send an inquiry to us by the contact page.
