As technology improves, the need for effective power supply conversion is ever-increasing. A functional Switching Power Supply that works well enhances the performance of many power driven devices.
In this blog, we will discuss the workings and the pros of a high power switching power supply, along with tips on how to purchase them from WehoPower.
What is the High Power Switching Power Supply Design?
A power supply unit such as the Switching Power Supply (SMPS) is designed to transform electric power from high AC or alternating current voltage to direct current, DC voltage. These types of power supplies are applicable in situations that need extensive energy such as industrial machinery, server systems, and other powered devices.
Some of the most crucial design features are as follows:
| Feature | Description |
| Power conversion | Steps down power and voltage for devices using DC power. |
| Switching technology | Uses fast electronic switches to control power flow, reducing heat loss compared to linear power supplies. |
| Cooling systems | Includes fans or heat sinks to prevent overheating. |
| Protective features | Equipped with safety features like overcurrent, overvoltage, and thermal protection for reliable operation. |
Power Conversion: High Power Switching SMPS units have the ability to step down power and voltage using loads that consume DC power.
Switching Technology: Their regulation of the power output differs from a linear power supple, which exhibits lost heat as excess power energy. A switching power uses quick electronic switches that constantly turn on and off to control the power flowing through it.
Cooling Systems: To avoid overheating due to the massive power output, cooling systems like fans or heat sinks are implemented in the hosted design.
Protective Features: A reliable operation in harsh conditions is achieved with the use of heavy-duty safety features like overcurrent, overvoltage, and thermal protection in high power SMPS units.
How Does a High Power Switching Power Supply Work?
A high power SMPS works through a series of steps to convert electrical energy efficiently:
| Step | Description |
| AC input | Receives power from the grid in AC (alternating current). |
| Rectification | Converts AC voltage to DC using diodes and a bridge rectifier. |
| Switching | Uses a MOSFET to turn power on and off at high frequency, reducing energy loss. |
| Transformer | Adjusts voltage (increases or decreases) based on application needs. |
| Filtering & regulation | Removes ripples and stabilizes DC output voltage. |
| Output | Delivers steady DC power to industrial machines, servers, or other devices. |
AC Input: This involves receiving power from the grid in alternating current (AC) for starters.
Rectification: This conversion of voltage is can be initiated with diodes where the AC voltage rectification is turned into DC voltage. A bridge rectifier circuit is usually where this gets done.
Switching: This system regulation rectifies the output and transfers the provided DC which goes into a switching transistor, A MOSFET, and alternates is turned on and off on a high frequency. This process is the base of the efficiency of the SMPS because energy loss is reduced compared to the traditional linear regulation.
Transformer: Subsequently, the resultant high-frequency switching signal is routed through a transformer where the voltage can be increased or decreased depending on the application specific requirements.
Filtering and Regulation: The output is first filtered to eliminate ripple and is also regulated to achieve a static DC output voltage within specified loading conditions.
Output: Now the power supply can deliver regulated DC output to the load, which can be an industrial machine, a server, or any other high power device.
Advantages of High Power Switching Power Supplies
High power switching power supplies offer several advantages over traditional linear power supplies:
| Advantage | Description |
| High efficiency | Converts power with over 90% efficiency, reducing energy waste and heat. |
| Compact size | Smaller and lighter than linear power supplies, saving space. |
| Better heat management | Produces less heat, making it ideal for high-power applications. |
| Wide input voltage range | Works with different voltage standards worldwide. |
| Cost-effective | Saves energy, lowering operational costs. |
| Reliable & durable | Built to withstand harsh conditions and power fluctuations. |
Efficiency: High power switching power supplies have one of the most significant advantages, and that is higher efficiency. Switching Mode Power Supplies (SMPS) can achieve efficiencies greater than 90%. In addition, since they produce comparatively less heat, they tend to waste less energy during the conversion process, which makes them suitable for large scale applications.
Compact Size: The higher the power rating of a SMPS unit, the more compact and lighter it is compared to its linear counterpart, which consumes a lot more space due to larger transformers and other auxiliary devices needed to dissipate the excess energy in the form of heat.
Heat Management: In general, heat produced by SMPS units is small compared to that produced by switching linear power supplies. This is extremely important in high-power applications where heat can be an issue.
Wide Input Voltage Range: These supplies have shown a lot of versatility, as opposed to others, because they can accept a wide range of input voltages from different parts of the world with different electrical standards.
Cost Effective: Owing to their greater efficiency, high power SMPS tends to be more economical in contrast with its competing technologies because of reduced operational cost from low power consumption.
Reliability and Longevity: The rugged construct together with the sophisticated protection features makes high power SMPS highly reliable even in very rough industrial conditions. They are capable of withstanding changes in input power and external shocks.
Find the best High Power Switching Power Supply at WehoPower

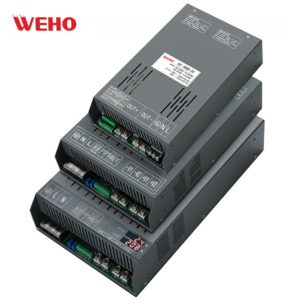

The WehoPower SE Series features the most powerful High Power Switching Power Supplies within single output range. The SE-5000W Single Output Switching Power Supply stands at the front of this family. The SE-5000 is a 5 kW single output AC to DC / DC to DC power supply aimed for the most ultra industrial applications. Its input voltage is wide ranging from 180-264VAC / 250-370VDC and gives dependable DC output.
For reliable performance at high operating temperatures of 60 degrees Celsius, each unit is equipped with internal speed controlled fan for efficient cooling. The SE-5000 possesses many built-in functions including, but not limited to adjustable output voltage and current, control from a distance on/off switch, and an auxiliary power supply to cater diverse design needs.
