In the realm of electronics, the power supply unit (PSU) is often an unsung hero, working tirelessly behind the scenes to ensure our devices function correctly. From the simplest LED light to the most complex computer server, almost every electronic device relies on a power supply to operate. But what exactly does a power supply do, and why is it so critical?

This blog post will delve into the fundamental role of power supplies, specifically focusing on switching power supplies, which are prevalent in modern electronics. We’ll explore the different types of power supplies, their core functions, and the key factors that differentiate high-quality PSUs from their less robust counterparts. Whether you’re a seasoned engineer or a curious buyer, this comprehensive guide will provide a deeper understanding of this essential electronic component.

The Fundamental Role: Power Conversion

At its core, a power supply’s primary function is to convert electrical power from one form to another. Most electronic devices cannot directly use the AC (Alternating Current) power supplied from wall outlets. They require a stable, low-voltage DC (Direct Current) power source. This is where the power supply comes in.

AC to DC Conversion: This is the most common function. The power supply takes the AC power from the mains and converts it into the DC power needed by the device. This involves several stages:

Transformation: The AC voltage is typically stepped down to a lower level using a transformer.

Rectification: The AC voltage, which alternates in direction, is converted to a pulsating DC voltage using a rectifier circuit (usually consisting of diodes).

Filtering: The pulsating DC is then smoothed out using capacitors to reduce the “ripple” and create a more stable DC output.

Regulation: Finally, the DC voltage is regulated to a precise level to meet the specific requirements of the connected device. This is often achieved using linear or switching regulators.

Other Key Functions

Besides the primary AC to DC conversion, power supplies often perform several other vital functions:

Voltage Regulation: Maintaining a consistent output voltage is crucial. Fluctuations in the input voltage or changes in the load (the device being powered) can affect the output voltage. A good power supply will regulate the output to keep it within a narrow, specified range, protecting the connected device from damage.

Current Limiting: Power supplies are designed to deliver a specific maximum current. If the load tries to draw more current than the power supply can handle, it can lead to overheating and damage. Current limiting protects the power supply and the load by restricting the current to a safe level.

Overvoltage Protection (OVP): This safety feature protects the connected device from damage caused by excessively high output voltage. If the output voltage exceeds a certain threshold, the OVP circuit will shut down the power supply or clamp the voltage to a safe level.

Overcurrent Protection (OCP) / Short Circuit Protection (SCP): These features protect the power supply and the load from damage caused by excessive current draw or a short circuit.

Power Factor Correction (PFC): This is becoming increasingly important, especially in higher-power applications. PFC improves the efficiency of the power supply by reducing the harmonic distortion on the AC input, making it more environmentally friendly and reducing energy costs.

Types of Power Supplies

While all power supplies share the common goal of power conversion, they can be broadly classified into two main categories:

Linear Power Supplies: These are relatively simple in design and are known for their low noise and excellent regulation. They use a linear regulator to maintain a constant output voltage. However, they tend to be less efficient, especially when there’s a significant difference between the input and output voltages, as they dissipate excess energy as heat.

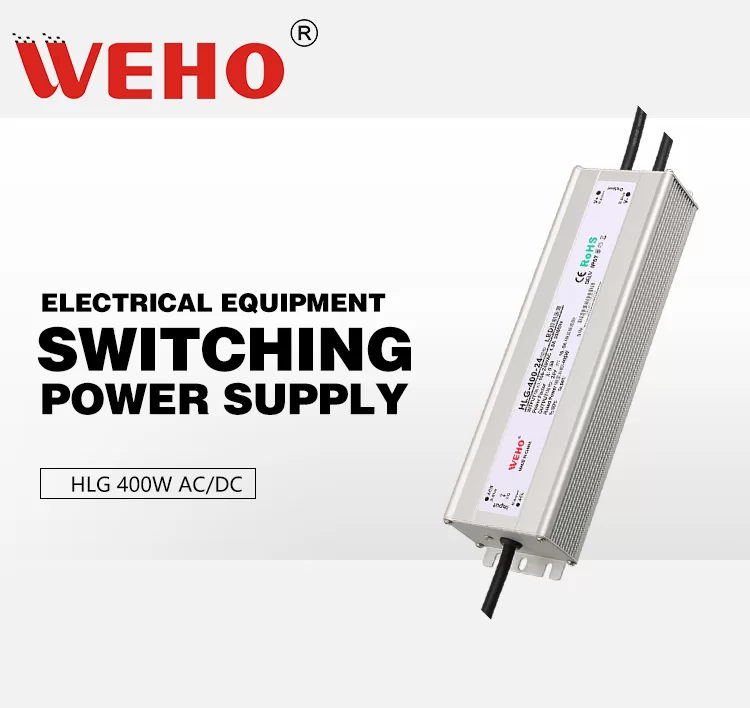

Switching Power Supplies (SMPS): These are more complex but also much more efficient than linear power supplies. They use high-frequency switching transistors to convert the input voltage to the desired output voltage. They are smaller, lighter, and generate less heat than linear power supplies, making them the preferred choice for most modern electronic devices. This is the type of power supply we focus on in this blog.

Switching Power Supplies: A Closer Look

Switching power supplies have become the dominant type of power supply in most applications due to their numerous advantages:

High Efficiency: SMPS can achieve efficiencies of 80-95% or even higher, meaning less energy is wasted as heat.

Compact Size and Lightweight: The use of high-frequency switching allows for smaller transformers and filter components, resulting in a smaller and lighter unit.

Wide Input Voltage Range: Many SMPS can operate over a wide range of input voltages, making them suitable for international use.

Cost-Effective: While initially more complex to design, the mass production of SMPS has made them very cost-effective.

Key Considerations for Buyers

When selecting a switching power supply, several critical factors should be considered:

Output Voltage and Current: These must match the requirements of the device you are powering.

Input Voltage Range: Ensure the power supply can operate on the available AC mains voltage in your region.

Power Rating (Wattage): Choose a power supply with a wattage rating that exceeds the maximum power consumption of the connected device, including a safety margin (typically 20%).

Efficiency: A higher efficiency rating translates to lower operating costs and less heat generation.

Safety Features: Look for OVP, OCP, SCP, and other safety features to protect your devices and the power supply itself.

Reliability and MTBF (Mean Time Between Failures): A higher MTBF indicates a more reliable power supply that is less likely to fail prematurely.

Regulatory Compliance: Ensure the power supply meets relevant safety and electromagnetic compatibility (EMC) standards (e.g., UL, CE, FCC, RoHS).

Form Factor and Dimensions: Choose a power supply that fits the physical constraints of your application.

Conclusion

The power supply is a fundamental component of virtually every electronic system. Understanding its role, the different types available, and the key selection criteria is essential for anyone involved in designing, building, or purchasing electronic equipment.

Switching power supplies, with their high efficiency, compact size, and versatility, have revolutionized the electronics industry. By carefully considering the factors discussed in this blog post, you can make informed decisions when selecting a power supply, ensuring optimal performance, reliability, and safety for your electronic devices and systems. Remember to prioritize quality and safety certifications, and always choose a reputable manufacturer to ensure you’re getting a reliable product that will meet your needs for years to come.
