120W AC to DC 12V Switched Power Supply

Ultra-Low No-Load Power Consumption: Enjoy exceptional energy efficiency with this product’s impressively low no-load power consumption, measuring less than 0.3W.

Comprehensive Protection Functions: Features a comprehensive suite of protection functions, including over/under voltage, over current, overload, overheat, and short circuit protection.

Wide Input Voltage Range: Adaptability is at the core of this product, with a full range of input voltage support from 85-264VAC. This ensures compatibility with various power inputs, offering flexibility for diverse applications.

Compact Miniature Size: Experience space optimization with the product’s miniature size, making it an ideal choice for setups where space is at a premium. The 1U low profile further contributes to a compact and efficient design.

Efficient Natural Air Cooling: Embrace eco-friendly cooling methods with convection from natural air. Designed to dissipate heat effectively without the need for additional cooling systems, ensuring reliable and sustained operation.

Your Power Solution for Precision and Efficiency

The LRS-120 series is a 12V switched power supplyp meticulously engineered with a slim 30mm low-profile design.

Key Features:

1. Versatile Output Options:

The LRS-120 series offers a broad spectrum of output voltage lines, including 5V, 12V, 15V, 24V, 36V, and 48V. This versatility ensures compatibility with a wide range of devices and applications.

2. Low-Profile Design:

With its sleek 30mm profile, the LRS-120 12V Switched Power Supply is engineered for efficiency without sacrificing performance. The low-profile design enables seamless integration into various setups, optimizing your workspace.

3. Wide Input Range:

Experience flexibility with a full range 85-264VAC input, allowing adaptability to various power inputs.

4. High Efficiency:

Boost your power efficiency with an impressive rating of up to 89%. This ensures that the energy delivered is maximized, minimizing waste and optimizing overall performance.

5. Superior Heat Dissipation:

The innovative metallic mesh case design enhances heat dissipation capabilities, promoting longevity and consistent performance. The entire series operates seamlessly from -30℃ through 70℃ under air convection, eliminating the need for an additional fan.

Experience a power supply solution that combines precision, adaptability, and efficiency. If you have any questions or need further information, please do not hesitate to contact us at Email: [email protected].

Model LRS-120-12 LRS-120-24
DC Output Voltage 12V 24V
Rated Output Current 10A 5A
Output Current Rage 0-8.5A 0-4.5A
Rated  Power 102W 108W
Wave And Noise 120mVp-p 150mVp-p
Voltage ADJ. Range 10.2-13.8V 21.6-28.8V
Voltage Tolerance ±1% ±1%
Line Regulation ±0.5% ±0.5%
Load Regulation ±0.5% ±0.5%
Efficiency 88.0% 90.0%
AC Input Voltage Range AC85~264V 47~63Hz; 240~373VDC
Input Current 1.9A/115V
1.2A/230V
AC INnrush Current Cold-start  50A/230V
Overload Protection 110%~140% Protection type: Hiccup mode, recovers automatically after the condition recovered
Setup Rise Time 500ms, 30ms/230VAC
500ms, 30ms/115VAC
at full load
 Hold Up Time 55ms/230VAC
10ms/115VAC
at full load
Withstand Voltage I/P-O/P: 1.5KVAC
I/P-FG: 1.5KVAC
O/P-FG: 0.5KVAC
Isolation Resistance  I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/ 500VDC /25°C/70%RH
Working Temperature -30°C ~ +70°C

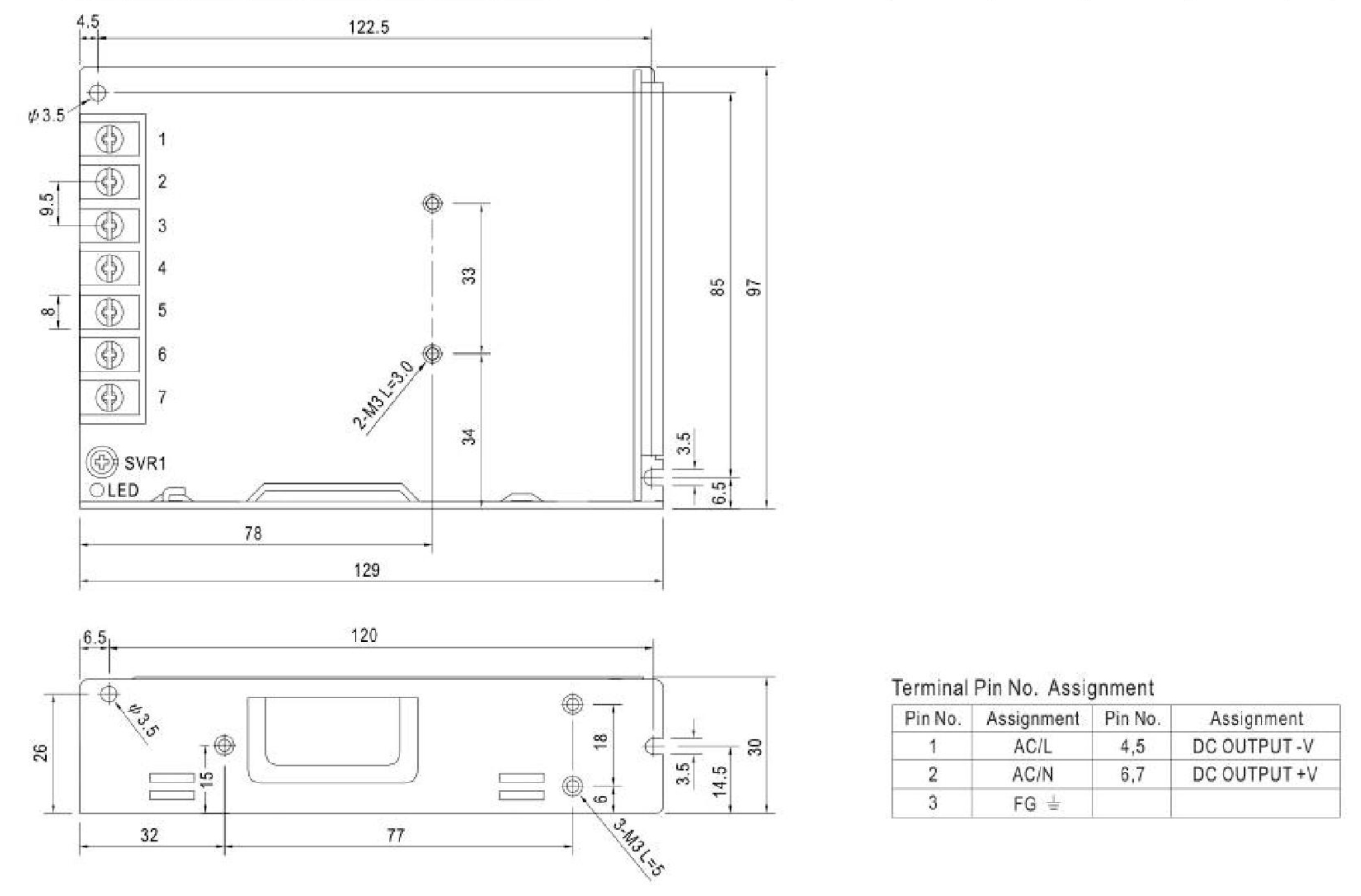

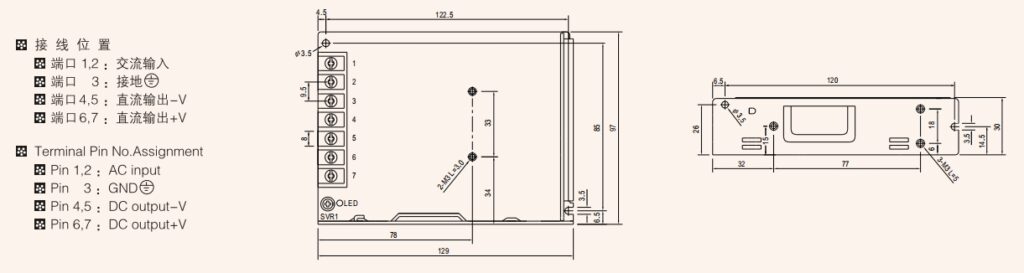

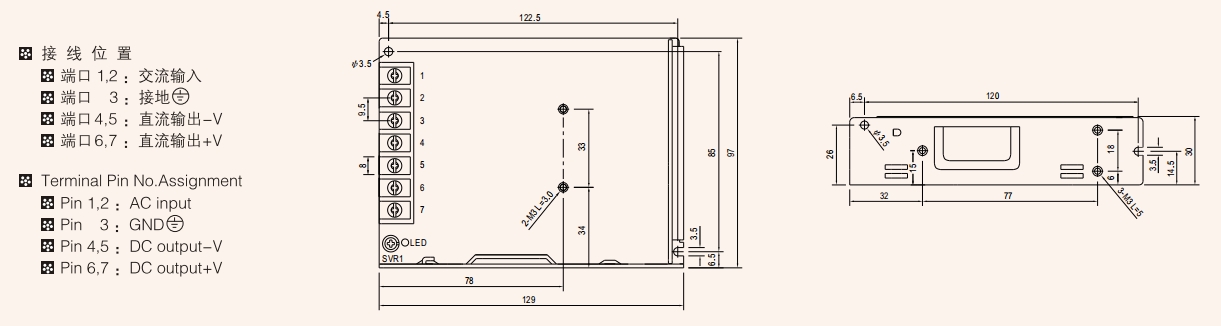

Overall Dimension 134*97*30mm
Safety Standards Meet EN60950
EMC Standards Meet EN55022, EN61000-3-2, EN61000-3-3, EN55024
Weight 0.3Kgs
