| Model | XLG-200-12 | XLG-200-24 | XLG-200-36 | XLG-200-48 |
| DC output voltage | 12V | 24V | 36V | 48V |
| Rated output current | 16.5A | 8.3A | 5.5A | 4.16A |
| Current range | 0~16.5A | 0~8.3A | 0~5.5A | 0~4.16A |
| Output power | 198W | 240W | 252W | 250W |
| Wave and noise | 180mVp-p | 200mVp-p | 220mVp-p | 220mVp-p |
| Voltage accuracy | ± 3% | ± 2% | ± 2% | ± 2% |
| Line regulation | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Load regulation | ± 2% | ± 0.5% | ± 0.5% | ± 0.5% |
| Start, rise, hold time | 200ms，30ms，20ms/230VAC (at full load) | |||
| Input voltage range | 180 ~264VAC，235 ~373VDC | |||
| Frequency range | 47 ~ 63Hz | |||
| AC input current | 2.5A/230VAC | |||
| Efficiency | 91.0% | 92.0% | 92.5% | 93.0% |
| Impulse current | Cold start current 45A/230VAC | |||
| Leakage current | <2mA/240VAC | |||
| Overcurrent protection | 95%~108% of the rated output current starts overcurrent limit， recover automatically after abnormal conditions are removed |
|||
| Short circuit protection | Protection mode: Hiccup mode: recover automatically normal output after abnormal conditions are removed | |||
| Overvoltage protection | 115%~ 135% of rated output voltage startup overvoltage protection | |||
| Protection mode: Hiccup mode: recover automatically normal output after abnormal conditions are removed | ||||
| Over temperature protection | 95℃ ±10℃ (JK1 is next to the transformer/MOS tube surface detection) | |||
| Protection mode: Turn Off the output voltage, and the normal output can be automatically restored after the temperature drops |
||||
| Working temperature | -20℃~ +60℃ | |||
| Working humidity | 20% ～90% RH, non condensing | |||
| Storage temperature and humidity | -40℃~ +85℃；10% ～95% RH，non condensing | |||
| Seismic resistance | 10~500Hz,，3G 12min/ 1 cycle，X, Y, Z axes，duration 60 minutes | |||
| Pressure resistance | I/P~O/P：1.5KVAC I/P~FG：1.5KVAC O/P~FG：0.5KVAC | |||
| Isolation resistance | I/P~O/P，I/P~FG，O/P~FG: 100M Ohms/500VDC/25℃/70%RH | |||
| Safety standard | Compliance to UL60950-1，TUV EN60950-1 | |||
| Electromagnetic compatibility emission | Compliance to EN55022 Class A | |||
| Electromagnetic compatibility immunity | Compliance to EN55024 | |||

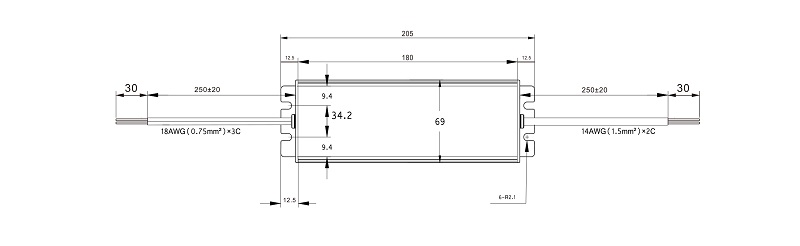

| Dimension | 205*69*43mm (L*W*H) | |||
| Packing | 0.85kg/16pcs/14kg/0.026 cubic meters | |||
200W Waterproof IP67 Constant Current Switching Power Supply AC 110V 220V DC 12V 24V 36V 48V LED Driver
XLG-200W adopts the international common AC input voltage range, and the whole series provides 12V, 24V, 36V and 48V outputs. Built-in long-life aluminum electrolytic capacitors provide ultra-low no-load power consumption (less than 0.75W), which can make the terminal system easily meet international energy requirements.
XLG-200W has Short circuit / Overload / Overvoltage / Overtemperature protection function and anti-3G vibration capability. 100% full load burning machine test, with high efficiency, long life and high reliability. It complies with safety regulations such as UL1012 and EN60950-1, and can meet the energy-saving requirements of the new generation of LED lighting, providing a cost-effective solution for various LED lighting.
If you have any questions, please do not hesitate to contact us at Email: [email protected]
