| Model | XLG-25-12 | XLG-25-24 | XLG-25-36 | XLG-25-48 |
| DC output voltage | 12V | 24V | 36V | 48V |
| Rated output current | 2A | 1A | 0.7A | 0.5A |
| Constant current range | 6~12V | 12~24V | 18~36V | 24~48V |
| Output power | 24W | 24W | 25W | 24W |
| Wave and noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
| Voltage accuracy | ± 3% | ± 2% | ± 1% | ± 1% |
| Line regulation | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Load regulation | ± 2% | ± 1% | ± 0.5% | ± 0.5% |
| Start, rise, hold time | 500ms，80ms，16ms/230VAC (at full load) | |||
| Input voltage range | 95 ~264VAC，135 ~373VDC | |||
| Frequency range | 47 ~ 63Hz | |||
| AC input current | 0.28A/230VAC | |||
| Efficiency | 86.5% | 87.5% | 87.5% | 88.5% |
| Impulse current | Cold start current 25A/230VAC | |||
| Leakage current | <1mA/240VAC | |||
| Overcurrent protection | 95%~108% of the rated output current starts overcurrent limit， recover automatically after abnormal conditions are removed |
|||
| Short circuit protection | Hiccup mode: recover automatically normal output after abnormal conditions are removed | |||
| Working temperature | -20℃~ +60℃ | |||
| Working humidity | 20% ～90% RH, non condensing | |||
| Storage temperature and humidity | -40℃~ +85℃；10% ～95% RH，non condensing | |||
| Seismic resistance | 10~500Hz,，3G 10min/ 1 cycle，X, Y, Z axes，duration 60 minutes | |||
| Pressure resistance | I/P~O/P：1.5KVAC I/P~FG：1.5KVAC O/P~FG：0.5KVAC | |||
| Isolation resistance | I/P~O/P，I/P~FG，O/P~FG: 100M Ohms/500VDC/25℃/70%RH | |||
| Safety standard | Compliance to UL60950-1，TUV EN60950-1，IP67 | |||
| Electromagnetic compatibility emission | Compliance to EN55022 Class A | |||
| Electromagnetic compatibility immunity | Compliance to EN55024 | |||

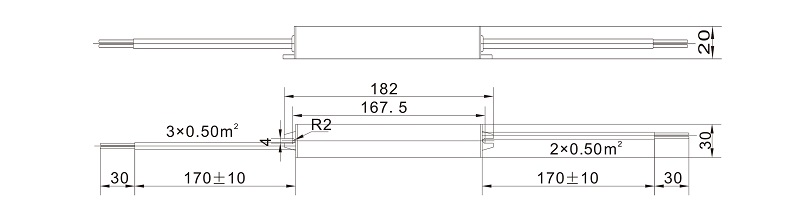

| Dimension | 182*30*20mm (L*W*H) | |||
| Packing | 0.22kg/80pcs/18.5kg/0.025 cubic meters | |||
25W Waterproof IP67 Constant Voltage LED Driver AC 95-264V DC 12V 24V 36V 48V Switching Power Supply
XLG-25W series is a waterproof AC DC LED Drive power supply, with constant voltage, constant current, constant power output design, using the international common AC input voltage range, the whole series to provide 12V,24V,36V and 48V output. Due to its conversion efficiency of up to 88%, it adopts fanless design and can work in the cabinet temperature range of -20℃ to + 60℃ under natural air cooling and heat dissipation. The metal housing and the high IP65 / IP67 design make the XLG-25W series suitable for indoor or outdoor applications.
Built-in long-life aluminum electrolytic capacitor provides ultra-low no-load power consumption (less than 0.75W), which can make the terminal system easily meet international energy requirements XLG-25W has complete protection function and anti -3G vibration capability. It conforms to safety regulations such as IEC / EN61347 and EN60950-1, and can meet the energy-saving requirements of the new generation of LED lighting, providing a cost-effective solution for various LED lighting.
If you have any questions, please do not hesitate to contact us at Email: [email protected]
