320w PFC single output stage lighting power supply

SP-320 is a range of enclosed power supply units featuring universal AC input and built-in power factor correction (PFC).

The SP series ranges from 75 ~ 240W and includes built-in protections: short circuit, overload, over voltage and over temperature, either cooling by free air convection (SP-75 / SP-100 / SP-150) or cooling via built-in DC fan (SP-200 / SP-240).

Series options: SP-75, SP-100, SP-150, SP-200, SP-240 SP-320 SP-500 PSP-600.

If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.

Download Request A Quote

Description

Specifications&Model

Model	SP-320-5	SP-320-12	SP-320-24	SP-320-48
DC Voltage	5V	12V	24V	48V
Voltage Tolerance	±2%	±1%	±1%	±1%
Rated Current	55A	25A	13A	6.7A
Current Range	0-55A	0-25A	0-13A	0-6.7A
Rated Power	275W	300W	312W	321.6W
Ripple & Noise	150mVp-p	150mVp-p	150mVp-p	240mVp-p
DC Adjustment Range	±10%	-16%,±10%	-16%,±10%	-15%,±17%
Voltage Range	88~264VAC selected by 47~63 Hz;120~370VDC
Power Factor	PF>0.95/230VAC,PF>0.98/115VAC at full load
AC Current	5A/115VAC 2.5A/230VAC
Efficiency	79%	86%	87%	89%
Inrush Current	22A/115VAC 40A/230VAC
Over Load	105%~135%
Over Voltage	115%~135%
Working Temp., Humidity	-20°C~+65°C; 20%~90 %RH
Storage Temp., Humidity	-40°C~+85°C; 10%~95 %RH
Vibration	10~500Hz, 2G 10min./1cycle, the period for 60min, each along X, Y, and Z axes
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
Safety Standard	Design refer to UL60950, TUV EN60950
EMC Standard	Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2,3,4,5,6,8,11; ENV50204,EN55024

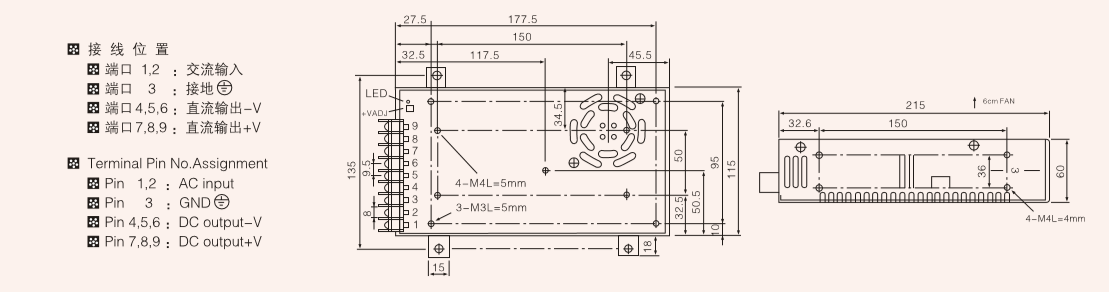

Dimension	18512093mm
Weight	1.8kg
Packing	402622cm/8pcs/14.5kg
