35W Single output minisize power supply power supplies 5V/12V/24vdc

WeHo’s MSF-35 series Power supply is a mini-type enclosed power supply

It is a high-price-to-performance power supply solution for different industrial applications.

The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.

If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.

Output current range

Model MS-35-5 MS-35-12 MS-35-24
Output DC Output Voltage 5V 12V 24V
Output Voltage Tolerance ±1% ±1% ±1%
Rated Output Current 6A 3.0A 1.5A
0~6A 0~3.0A 0~1.5A
Output Power 25W 36W 36W
Ripple And The Noise 80mVp-p 120mVp-p 120mVp-p
DC Voltage Adjustable Scope -9%~+10% ±10% ±10%
Start, Rise, Keep Time 800ms,20ms,24ms/230VAC.
Input Input Voltage Range 170~264VAC 47~63Hz,235~373VDC
Exchange Input Current 0.45A/230VAC
Efficiency 77% 81% 84%
Impulse Current Cold start current 30A/230VAC
Leakage Current <1mA/240VAC
Protection characteristics Overload Protection Protection way: fold layer type load current limiting, abnormal conditions can be removed recovery
environment Working Temperature, Humidity -10℃~+60℃;20%~90%RH(Please refer to reduce the specified number load curve )
Keep Temperature, Humidity -20℃~+85℃;10%~95%RH No condensation
Vibrate Resistance 10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis
security Compression Sex Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC
Insulation Resistance Between the input and output, the output and input: with the ground: 100 M / 500 VDC Ohms
Complies with the standards Safety Standards Meet the UL1012 requirements
EMC Standard Accord with
EN55022, CLASSA
other Weight 0.17kg 84*58*38(L*W*H)
Packaging 0.17kg/80pcs/14.5kg/0.9CUFT
note 1. All the parameters have not been specified, all are in 230V voltage input, AC-rated load, and 25℃ conditions measuring income value.
2. Ripple and noise voltage are in 20MHz bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0.1mu and 47 muons capacitance measurement when.
3. Tolerance is voltage setting error, the voltage adjustment rate, and adjusting the sum total of the current rate.

The white cap on the connector is for safety precautions against electric shock and dust protection

We make transformers and power inductors with pure coppers all by ourselves,

We choose components for the best compatibility and logical configuration

Weho stocks 150,000 sets of commonly used models, ensuring quick delivery.

This product is ideal for a number of LED lighting and mobile signage purposes.

This product meets global LED lighting safety standards.

Our partners can cooperate with us in OEM or ODM

The product has completed the 100% full load aging test.

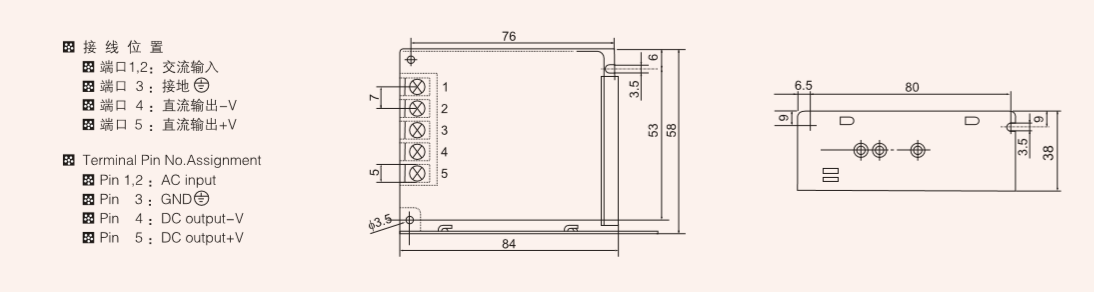

Product size: 84*58*38mm (L * W * H)
