60W AC to DC Switched Mode Power Supply

Voltage Tolerance: Have a voltage tolerance of ±1%, ensuring accurate and stable output voltage levels.

Line Regulation: The Switched Mode Power Supply has a line regulation of ±0.5%, guaranteeing consistent performance even with fluctuations in input voltage.

Load Regulation: The load regulation of ±0.5% ensures that the power supply maintains stable and reliable voltage output under varying load conditions.

AC Input Voltage Range: The power supply can handle a wide input voltage range of AC85~264V at a frequency of 47~63Hz, and 240~373VDC, making it suitable for various power sources.

Overload Protection: The power supply is equipped with overload protection, with a protection range of 110%~140%. In the event of an overload, the power supply enters a hiccup mode and automatically recovers once the condition is resolved.

Working Temperature: The power supply can operate in a wide temperature range from -30°C to +70°C, making it suitable for various environmental conditions.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Download Request A Quote

Description

Features

The LRS-60 is Switched Mode Power Supply designed for reliability and efficiency. With a compact design, these power supplies provide stable and precise DC output voltage of 12V or 24V to meet the requirements of your electronic devices. With a rated output current of 5A and 2.5A respectively, they can efficiently power your equipment without any fluctuations.

With high efficiency levels of 86% and 88%, respectively, these power supplies help save energy while minimizing heat generation. They are also equipped with a wide AC input voltage range from AC85~264V to support various applications.

Compact in size (99*83*30mm) and lightweight (0.2Kgs), they are easy to install and integrate into your system. Whether it’s for industrial or commercial use, the LRS-60 series provides reliable and efficient power supply solutions that you can depend on.

Specifications&Model

Model	LRS-60-12	LRS-60-24
DC Output Voltage	12V	24V
Rated Output Current	5A	2.5A
Output Current Rage	0-4.2A	0-2.2A
Rated Power	50W	50W
Wave And Noise	120mVp-p	150mVp-p
Voltage ADJ. Range	10.2-13.8V	21.6-28.8V
Voltage Tolerance	±1%	±1%
Line Regulation	±0.5%	±0.5%
Load Regulation	±0.5%	±0.5%
Efficiency	86%	88%
AC Input Voltage Range	AC85~264V 47~63Hz; 240~373VDC
Input Current	0.95A/115V 0.56A/230V
AC INnrush Current	Cold-start 45A/230V
Overload Protection	110%~140% Protection type: Hiccup mode, recovers automatically after the condition recovered
Setup Rise Time	500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
Hold Up Time	30ms/230VAC 12ms/115VAC at full load
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/ 500VDC /25°C/70%RH
Working Temperature	-30°C ~ +70°C

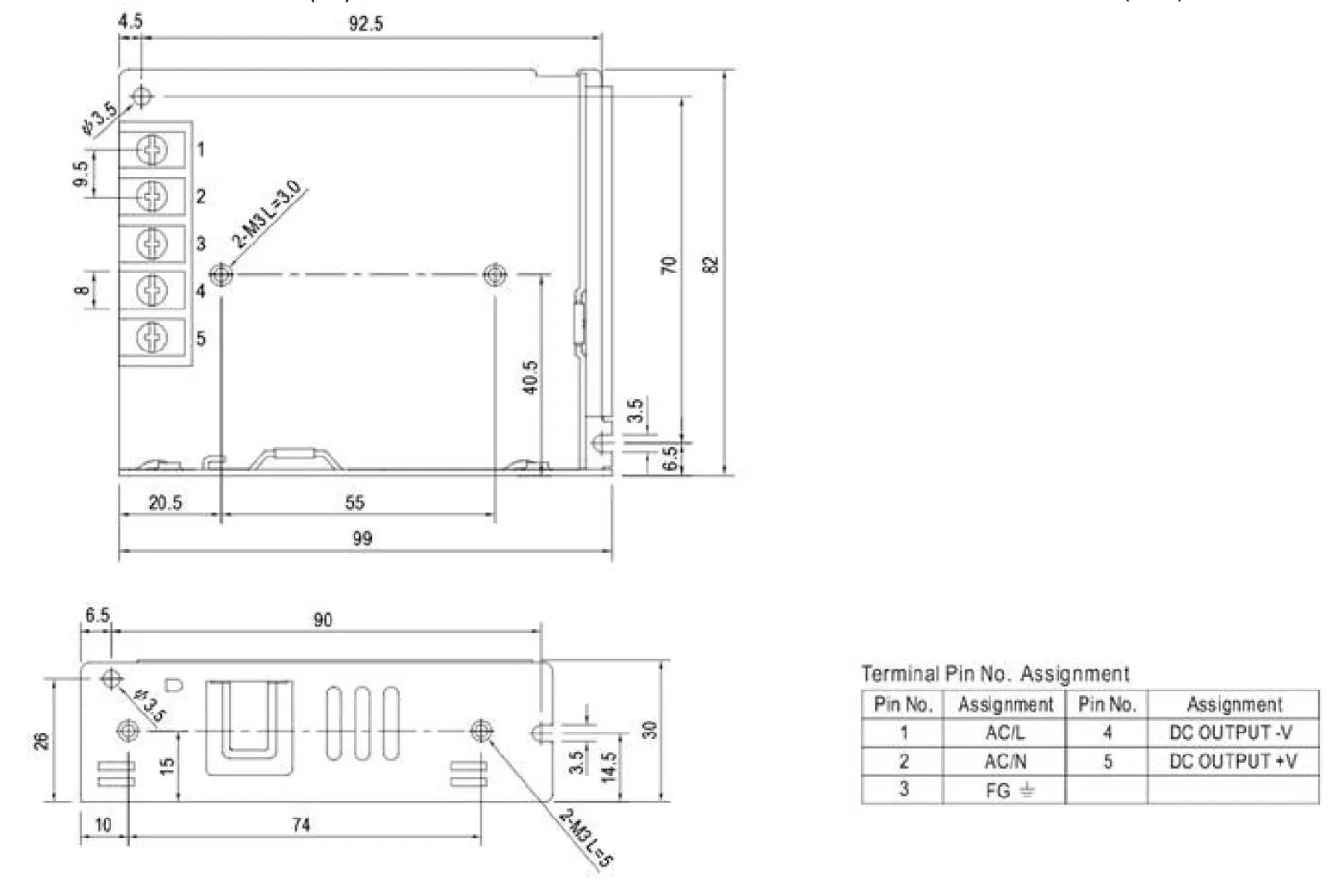

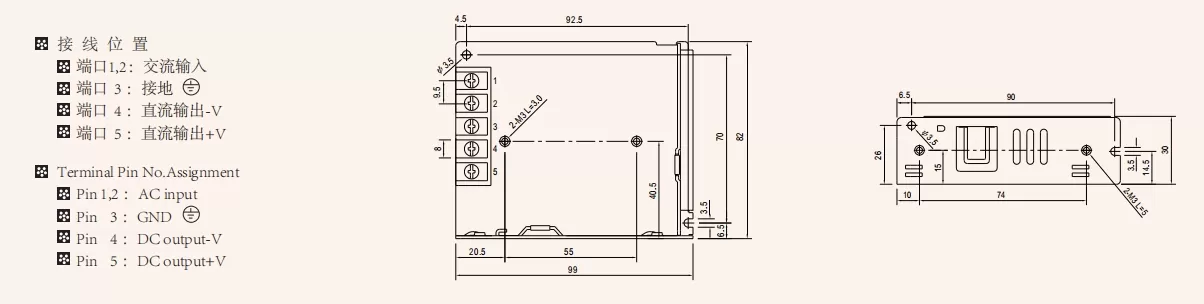

Overall Dimension	998330mm
Safety Standards	Meet EN60950
EMC Standards	Meet EN55022, EN61000-3-2, EN61000-3-3, EN55024
Weight	0.2Kgs
