| Model | XLG-100-12 | XLG-100-24 | XLG-100-36 | XLG-100-48 |
| DC output voltage | 12V | 24V | 36V | 48V |
| Rated output current | 8.3A | 4.2A | 2.8A | 2.1A |
| Constant current range | 6~12V | 12~24V | 18~36V | 24~48V |
| Output power | 99.6W | 100.8W | 100.8W | 100.8W |
| Wave and noise | 150mVp-p | 180mVp-p | 180mVp-p | 200mVp-p |
| Voltage accuracy | ± 3% | ± 2% | ± 2% | ± 2% |
| Line regulation | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Load regulation | ± 2% | ± 0.5% | ± 0.5% | ± 0.5% |
| Start, rise, hold time | 500ms，80ms，16ms/230VAC (at full load) | |||
| Input voltage range | 95 ~264VAC，135 ~373VDC | |||
| Frequency range | 47 ~ 63Hz | |||
| AC input current | 2.2A/115VAC 1.2A/230VAC | |||
| Efficiency | 87.5% | 89.0% | 90.0% | 91.0% |
| Impulse current | Cold start current 55A/230VAC | |||
| Leakage current | <2mA/240VAC | |||
| Overcurrent protection | 95%~108% of the rated output current starts overcurrent limit， recover automatically after abnormal conditions are removed |
|||
| Short circuit protection | Hiccup mode: recover automatically normal output after abnormal conditions are removed | |||
| Working temperature | -20℃~ +60℃ | |||
| Working humidity | 20% ～90% RH, non condensing | |||
| Storage temperature and humidity | -40℃~ +85℃；10% ～95% RH，non condensing | |||
| Seismic resistance | 10~500Hz,，3G 10min/ 1 cycle，X, Y, Z axes，duration 60 minutes | |||
| Pressure resistance | I/P~O/P： 1.5KVAC I/P~FG：1.5KVAC O/P~FG:：0.5KVAC | |||
| Isolation resistance | I/P~O/P，I/P~FG，O/P~FG: 100M Ohms/500VDC/25℃/70%RH | |||
| Safety standard | Compliance to UL60950-1，TUV EN60950-1， GB19510.1，KC61347-1，IP67 | |||
| Electromagnetic compatibility emission | Compliance to EN55022 Class A，GB17625.1，EN55015 | |||
| Electromagnetic compatibility immunity | Compliance to EN55024 | |||

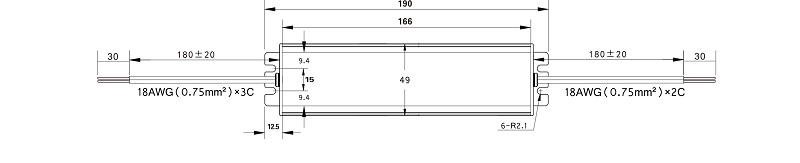

| Dimension | 190*49*34mm (L*W*H) | |||
| Packing | 0.65kg/30pcs/20.5kg/0.025 cubic meters | |||
AC DC 12V 24V 36V 48V LED Driver 100W Constant Voltage Waterproof IP67 Switching Power Supply
XLG-100W with High efficiency，Natural air cooling，Fully protected aluminum housing，Full filling glue, in line with IP65 / IP67 protection grade features. Due to its conversion efficiency of up to 90%, it adopts fanless design and can work in the cabinet temperature range of -20℃ to + 60℃ under natural air cooling and heat dissipation. The metal housing and the high IP65 / IP67 design make the XLG-100W series suitable for indoor or outdoor applications.
If you have any questions, please do not hesitate to contact us at Email: [email protected]
- Description
Application: Street Lighting，Wall washer lamp，Bay light，Fishing lights，Floodlight，Plant lighting，Building Lighting，Electronic instruments, equipment and devices.
