Model | MS-120-12 | MS-120-24 | MS-100-48 | |
Output | DC Output Voltage | 12V | 24V | 24V |
Output Voltage Tolerance | ±1% | ±1% | ±1% | |
Rated Output Current | 10A | 5A | 2.5A | |
Output Current Range | 0-10A | 0-5A | 0-2.5A | |
Output Power | 120W | 120W | 120W | |
Ripple And The Noise | 120mVp-p | 150mVp-p | 150mVp-p | |
DC Voltage Adjustable Scope | ±10% | ±10% | ±10% | |
Start, Rise, Keep Time | 500ms,20ms,24ms/230VAC.800ms,30ms,20ms/115VAC | |||
Input | Input Voltage Range | 90~132VAC/180~264VAC 47~63Hz(The switch choice),254~373VDC | ||
Exchange Input Current | 2.4A/115VAC 1.2A/230VAC | |||
Efficiency | 80% | 83% | 86% | |
Impulse Current | Cold start current 30A/230VAC | |||
Leakage Current | <3.5mA/240VAC | |||
Protection Characteristics | Overload Protection | Protection way: hiccups mode, load abnormal conditions can be removed recovery | ||
Environment | Working Temperature, Humidity | -10℃~+60℃;20%~90%RH(Please refer to reduce the specified number load curve) | ||
Keep Temperature, Humidity | -20℃~+85℃;10%~95%RH No condensation | |||
Vibrate Resistance | 10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis | |||
Security | Compression Sex | Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC | ||
Insulation Resistance | Between the input and output, the output and input: with ground: 100M Ohms/500VDC | |||
Complies With The Standards | Safety Standards | Accord with UL1012 | ||
EMC Standard | Accord with EN55022,CLASSA | |||
Standards | Weight | 0.55kg 159*98*38(L*W*H) | ||
Packaging | 0.55kg/50pcs/14.5kg/0.9CUFT | |||
Note | 1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value. | |||
2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when. | ||||
3. Tolerance is voltage setting |
Aluminum case IP20 switch mode power supply 120W dc power supply
WeHo’s MS-120 series Power supply is a mini-type enclosed power supply
It is a high-price-to-performance power supply solution for different industrial applications.
The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.
If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.
- Description
White cap over the connectors for security setting of dust-proof protection for electrical shock
We make transformers and power inductors with pure coppers all by ourselves,
Weho stocks 150,000 sets of commonly used models, ensuring quick delivery.
All products go through standardized testing procedures during production.
This product is designed to resist up to 1.5KV surge input for 50 seconds.
The product has completed the 100% full load aging test.
This product is both low-cost and reliable.
The product is very safe to use.

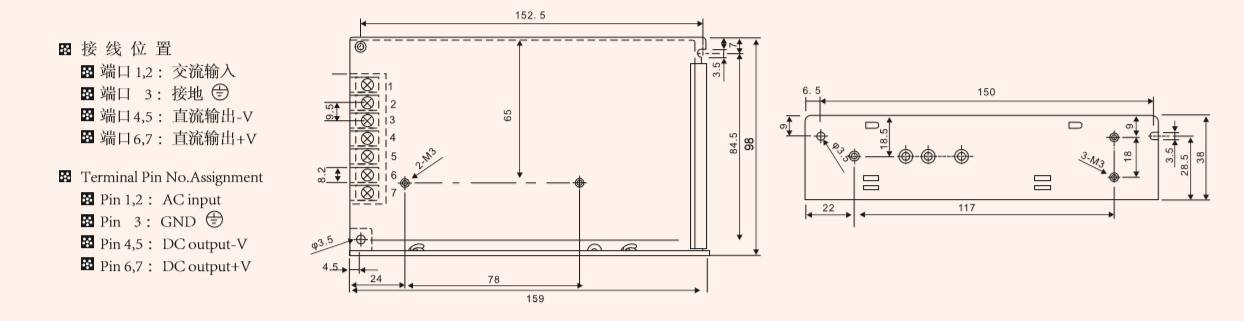

Size: 159*98*38mm (L * W * H)
