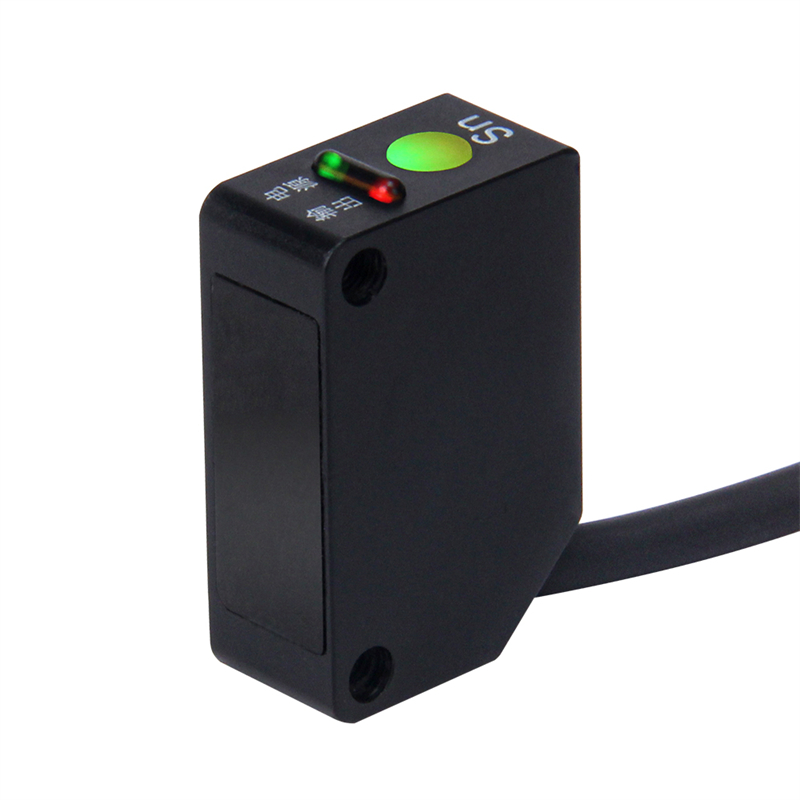

C3Z-R3 Square Shaped One-Touch Setting of Reflectional Photoelectric Sensor

C3Z-R3 is a reflectional photoelectric sensor.Can detect opaque objects.Its detection distance is 3m.This detection distance is adjustable within the range.Each series is available in NPN and PNP models.

Photoelectric switch is a position sensor with switching output, which can be networked with a microcomputer; it can also directly drive electromagnetic relays, counters and contactors to achieve automatic control. It is widely used in machinery, textiles, light industry, metallurgy, papermaking, and printing , packaging, tobacco, security, railway, military and other industries.

If you have any questions, please do not hesitate to contact us at

Email: [email protected]



Specification Reflectional
DC NPN C3Z-R3N
PNP C3Z-R3P
Detection distance※1 3m( Adjustable)
Sensitivity adjustment One-touch button setting
Standard detection object Reflector TD-08
Detectable objects Non-transparent objects
Response time 2ms
Return Difference Less than 15 % of detection distance
Supply Voltage DC10 ~ 30V
Operating current Load current≤ 100mA;Static current:DC(NPN) ≤ 25mA、DC(PNP) ≤ 35mA
Residual voltage ≤ 2V
Protection circuit DC(NPN,PNP) :Polarity, overcurrent protection
Indicator light Green power indicator, red action indicator
Ambient illuminance range Incandescent: Spot intensity under 3,000Lx; Sunlight: Spot intensity: under 10,000Lx
Temperature range Operating: -25~+70℃ (no icing, condensation);
Storage: -30~+70℃ (no icing, condensation)
Humidity range Operation, storage: 35~85% (no condensation
Sensing surface material PC



C3Z-R3 Square Shaped One-Touch Setting of Reflectional Photoelectric Sensor  title=

1.Simple connection for easy installation

2.Multi-protection: polarity protection, over-current protection

3.Stable detection and strong resistance to light interference

4.Detecting distance is easy to set with one button

5.Press 5 times to quickly switch NO / NC of Action mode
