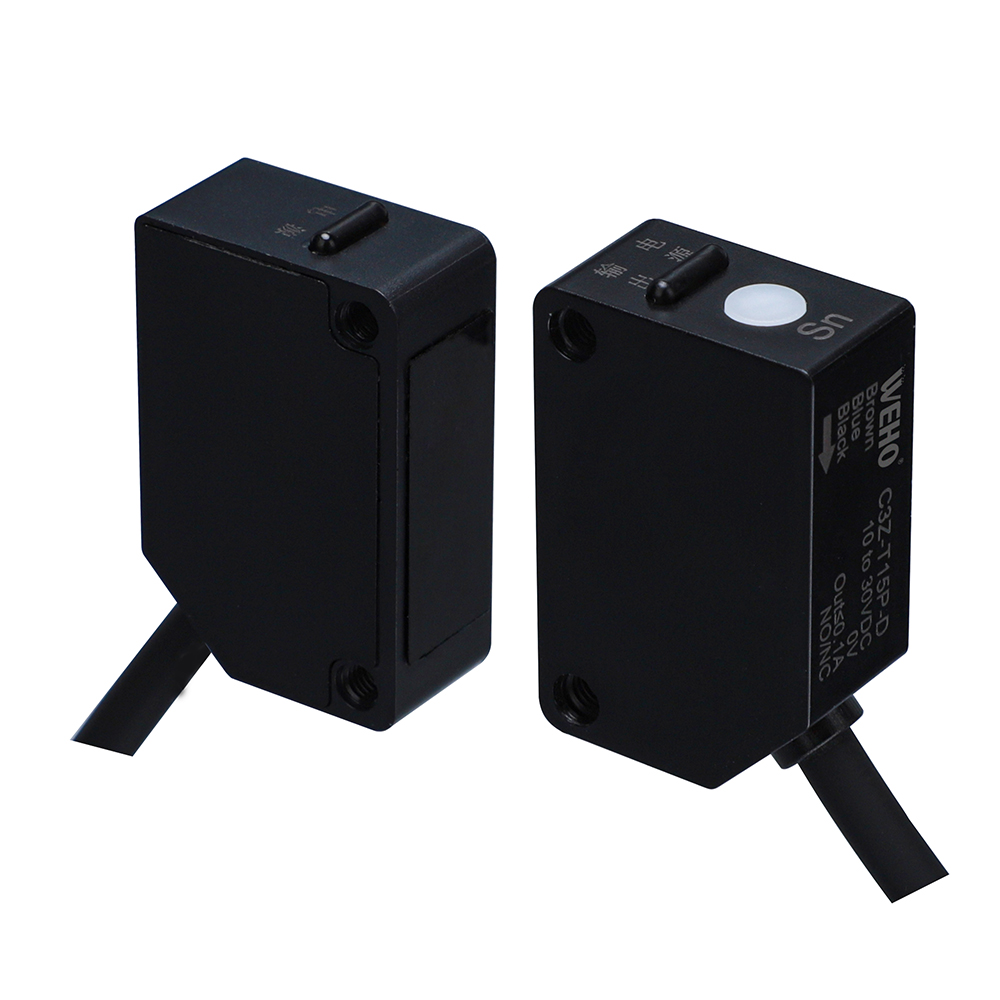

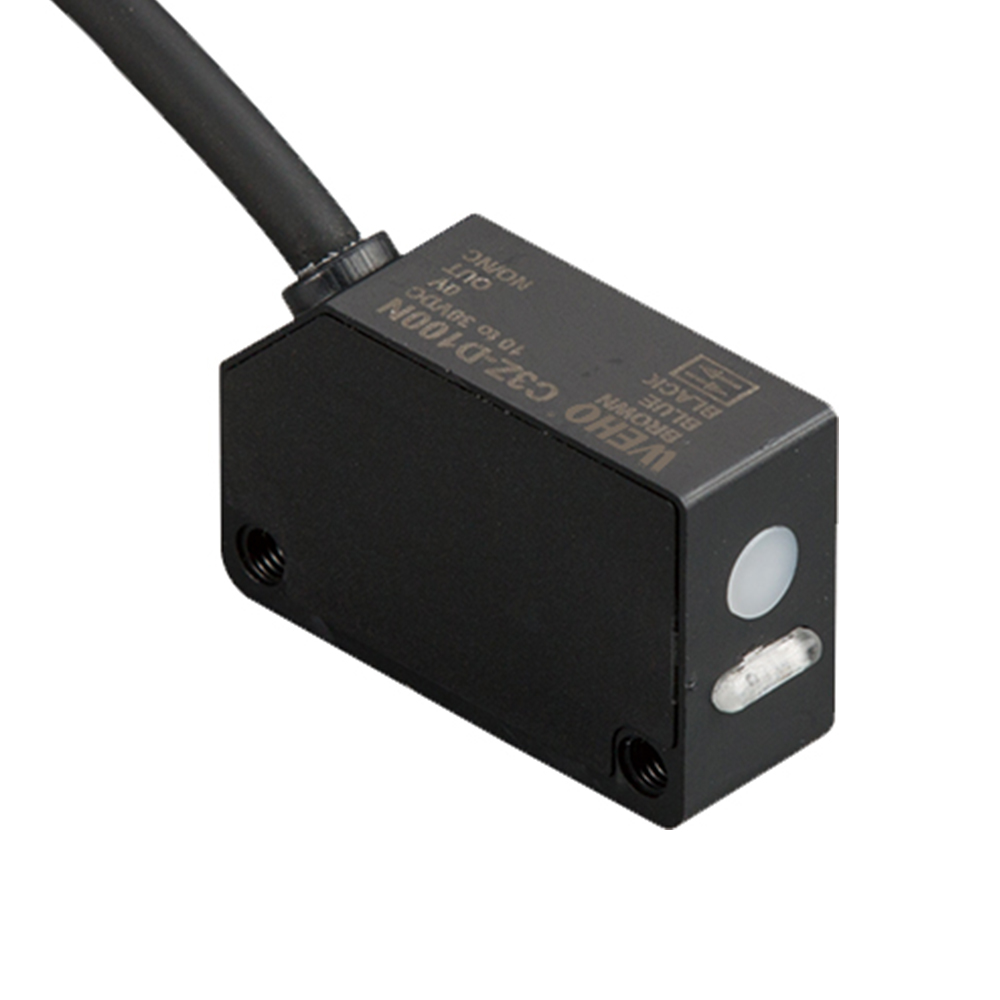

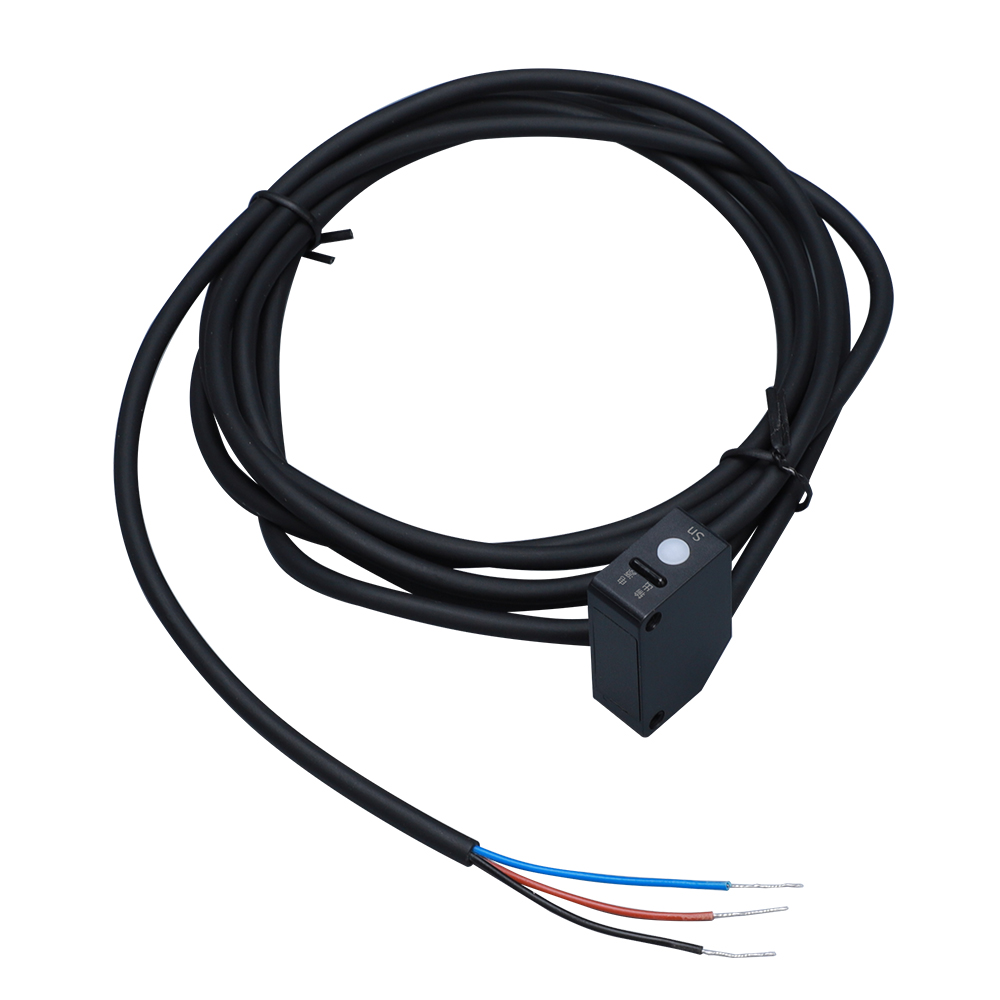

C3Z-TOF1 Series Anti-Interference Miniature Photoelectric Switch Sensor
C3Z-TOF1 is a diffuse reflection square photoelectric switch.Its detection distance is 50~1000mm.This detection distance is adjustable within the range.Each series is available in NPN and PNP models.
Photoelectric switch is a position sensor with switching output, which can be networked with a microcomputer; it can also directly drive electromagnetic relays, counters and contactors to achieve automatic control. It is widely used in machinery, textiles, light industry, metallurgy, papermaking, and printing. , packaging, tobacco, security, railway, military and other industries.
If you have any questions, please do not hesitate to contact us at
Email: [email protected]
- Description
| Specification | Diffuse reflective TOF | |
| DC | NPN | C3Z-TOF1N |
| PNP | C3Z-TOF1P | |
| Detection distance※1 | 50～1000mm(Adjustable) | |
| Sensitivity adjustment | One-touch button setting | |
| Standard detection object | 10×10cm White non-glossy paper | |
| Detectable objects | Reflecting object | |
| Response time | 10ms | |
| Supply Voltage | DC12 ～ 24V | |
| Operating current | Load current≤ 100mA；Static current：≤ 20mA | |
| Residual voltage | ≤ 2.5V | |
| Protection circuit | Polarity, overcurrent and overload protection | |

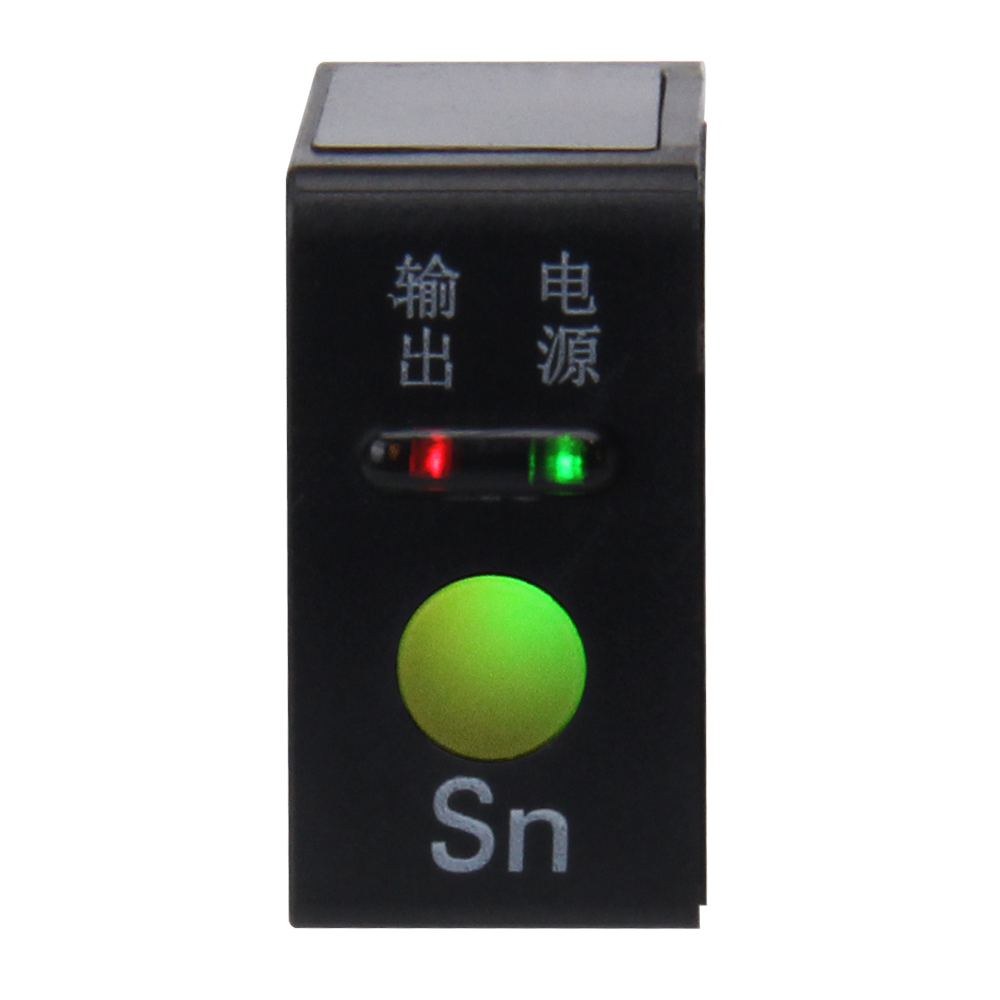

| Indicator light | Green power indicator, red action indicator | |
| Ambient illuminance range | Incandescent: Spot intensity under 10,000Lx | |
| Temperature range | Operating: -25～+55℃ (no icing, condensation);
Storage: -30～+70℃ (no icing, condensation) |
|
| Humidity range | Operation, storage: 35～85% (no condensation | |
| Sensing surface material | PC | |
1.Simple connection for easy protection installation
2.Multi-protection: polarity protection,over-current protection
3.TOF principle, stable detection
4.Detecting distance is easy to set with one button
5.With background suppression function, not affected by the material and colour of the detected object
6.Good light resistance
