| Description | Model | WH-B2403 |
| Rated Output Power (W) | 72W | |
| Rated Input Voltage (V) | 12VDC | |
| Rated Output Voltage (V) | 24VDC | |
| Input | Voltage Range (V) | 9V-16VDC |
| Starting Voltage (V) | 10VDC 100﹪load | |
| No-load Power Consumption (W) | ＜ 0.1W | |
| Efficiency | 93％ | |
| Output | Voltage (V) | VOUT:24VDC |
| Current (A) | 3A | |
| Voltage Tolerance | 1.5％ | |
| Load Regulation | 2％ | |
| Wave (MVP-p) | 250mv External 22UF capacitor ESR < 0.1Ω 100KHZ | |
| Protection | Over-current Protection | In the case of rated output, if the rated current exceeds 120%, the overcurrent protection will activate and recover automatically once the overcurrent subsides. |
| Short Circuit Protection | Input must add a 15A fuse | |
| Insulation | Input-Output | Non-isolated |
| Waterproof | Fully sealed and waterproof | |

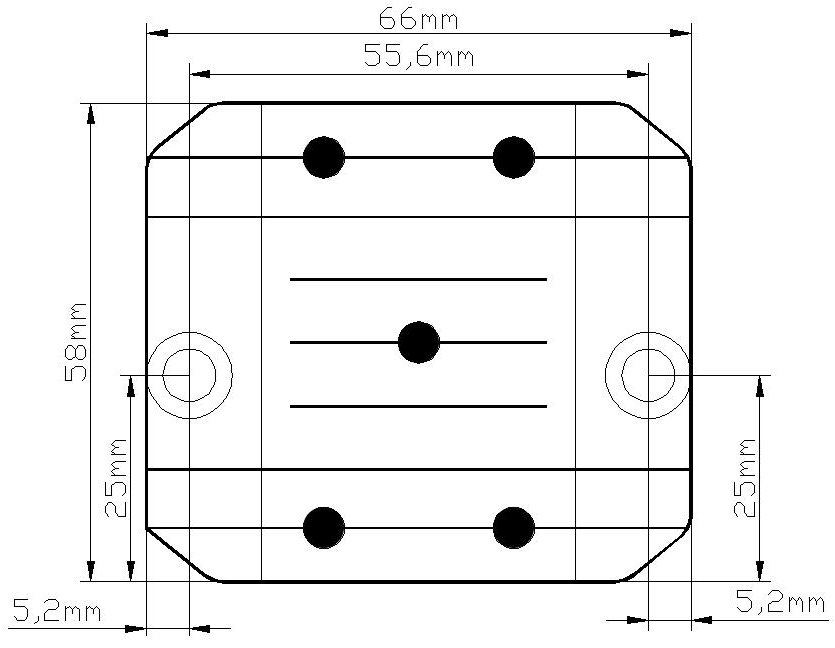

| Others | Dimension | 66*58*23mm N.W.:110g |
| Cooling Method | Natural Method | |
| Rated Temperature rise (℃) | 45℃ | |
| Reliability | ＞100000h | |
| Wire Indicator | Input Positive (Red), Input/Output Negative (Black), Output Positive (Yellow) Length=160mm± 10mm □ |
DC 12V Step Up to 24V Boost Converter 72W DC Voltage Regulator Power Converter Waterproof Module Transformer for Golf Cart Club Car
This is an industrial-grade DC 12V to 24V boost converter that is over 90% power conversion efficiency.
With 100% waterproof and shockproof protection, this boost converter is ultra-small and lightweight.
Its performance is stable and reliable, and the installation is simple.
If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.
- Description
● This is an industrial-grade DC 12V to 24V boost converter that is over 90% power conversion efficiency.
● It has input over-voltage/under-voltage, over-current, overload, over-temperature, short-circuit, and other comprehensive protection.
● It is used in vehicles, security systems, telecommunications, medical equipment, instrumentation, etc.
● With 100% waterproof and shockproof protection, this boost converter is ultra-small and lightweight.
● When the device resumes normal operation, the boost converter will automatically restart.
● Its performance is stable and reliable, and the installation is simple.
