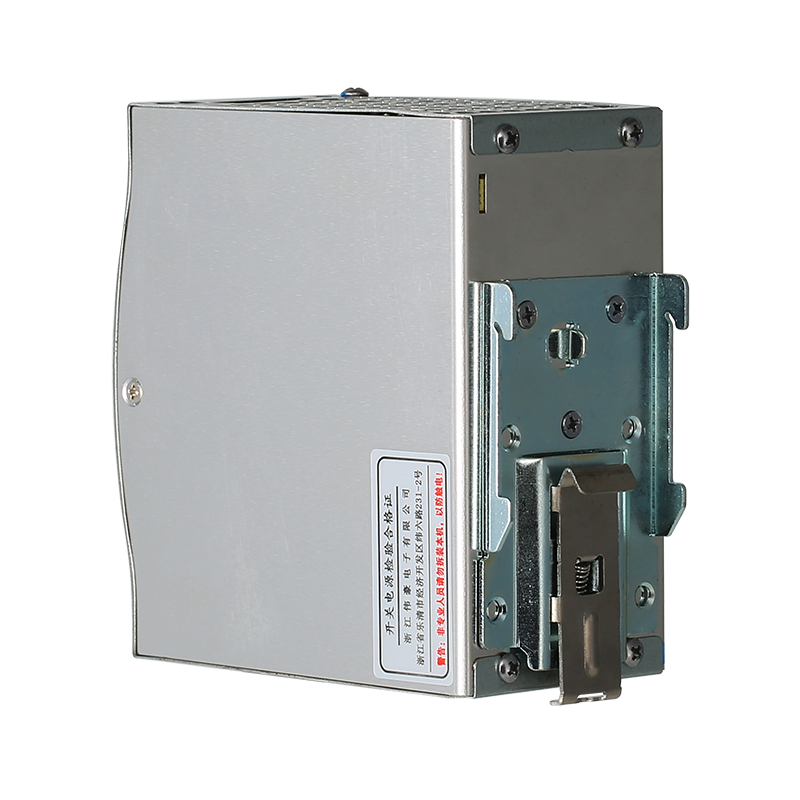

Din Rail Switching Power Supply EDR-240 240W 24V 48V Industrial AC to DC Power Supply
EDR-120 is one economical slim 120W Din Rail Power Supply Series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting Rails.
The entire series adopts the full range AC input from 90VAC to 264VAC. body is designed 40mm is width,which allows space saving inside the cabinets
EDR-120 is designed with metal housing that enhances the unit’s power dissipation with working efficiency up to 88.5%,the entire series can operate at the ambient tem[erature between -20℃ and 60℃ under air convection
It is equipped with constant current mode for over-load protection,fitting various inductive or capacitive applications.If you have any questions, please do not hesitate to contact us at
Email: [email protected]
- Description
| Model | EDR-240-24 | EDR-240-48 |
| DC output voltage,current | 24V 0～10A | 48V 0～5A |
| Wave and noise | 150mVp-p | 150mVp-p |
| Inlet wire stability | ±0.5% | ±0.5% |
| Load stability | ±1% | ±0.5% |
| Efficiency | 87.5% | 85% |
| Adjustable range for DC voltage | ±10% | 士10% |
| Input voltage range | 85～264VAC 120～370VDC 47～63Hz | |
| lmpact current | Cold start current | 27A/115VAC 45A/230VAC |
| Overload protection | 105%～150%cut off the output,automatic recovery | |
| Over voltage protection | 30～36V for 24V model;54～60V for 48V model | |
| Setup,rise,hold up time | 1500ms,100ms /230VACat full load | |
| Withstand voltage | I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute | |
| lsolation resistance | I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ | |
| Working temperature | -10℃~+50℃ | |
| Dimension | 63*125.2*113.5mm | |
| Weight | 1.0kg | |
| Packing | 41.5×27.5×25CM | |
Protections: Short circuit / Overload / Over voltage / Over temperature
Our products have CE ROHS certification to ensure quality.
The EDR din rail 120w AC to DC circuit output switching power supply is a semiconductor manufacturing equipment.
This product can be used in industrial control systems
Factory automation
