EDR-150 150W Industrial Din Rail Ac to Dc Single Output Switching Power Supply
EDR-150 is one economical slim Din Rail Power Supply Series,providing up to 156W at 230VAC Input.
The body is designed 40mm in width,which allows space saving inside the cabinets
EDR-150 is designed with metal housing that enhances the unit’s power dissipation.With working efficiency up to 87%,the entire series can operate at the ambient temperature between -20℃ and 60℃ under air convection
Other standard features include its low no-load power consumption, to save energy, short circuit, overload, and over voltage protections, and DC OK relay contact with LED indicator for monitoring the PSU status.
If you have any questions, please do not hesitate to contact us at
Email: [email protected]
- Description
| Model | EDR-150-24 | EDR-150-48 |
| DC output voltage,current | 24V 0～6.5A | 48V 0～3A |
| Wave and noise | 150mVp-P | 200mVp-p |
| Inlet wire stability | ±0.5% | 士0.5% |
| Load stability | 士1% | 士0.5% |
| Efficiency | 87% | 88.0% |
| Adjustable range for DC voltage | ±10% | 士10% |
| Input voltage range | 85～264VAC 120～370VDC 47～63Hz | |
| Impact current | Cold start current 20A/115VAC 40A/230VAC | |
| Overload protection | 105%～150%cut off the output,automaticrecovery | |
| Overvoltage protection | 120%～140%shutdownO/P voltage,re-power on to recover | |
| Setup,rise,hold up time | 1200ms,60ms,60ms/230VAC at full load | |
| Withstand voltage | I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute | |
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:500VDC/100MQ | |
| Working temperature | -10C～+50C | |

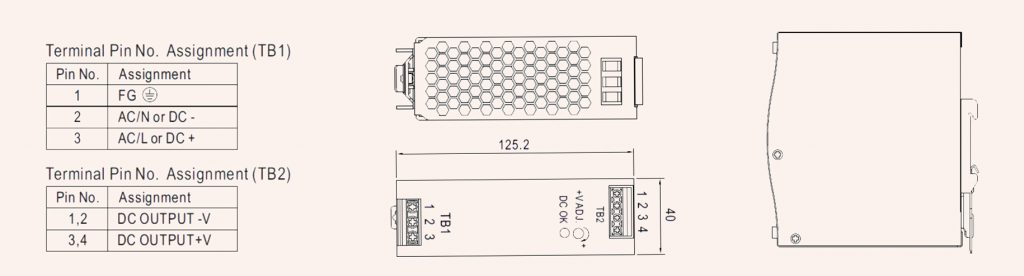

| Dimension | 40×125.2×113.5mm | |
| Weight | 0.6kg | |
| Packing | 45.5X35X26CM | |
Protections: Short circuit / Overload / Over voltage / Over temperature
Our products have CE ROHS certification to ensure quality.
The EDR din rail 120w AC to DC circuit output switching power supply is a semiconductor manufacturing equipment.
This product can be used in industrial control systems
Factory automation
