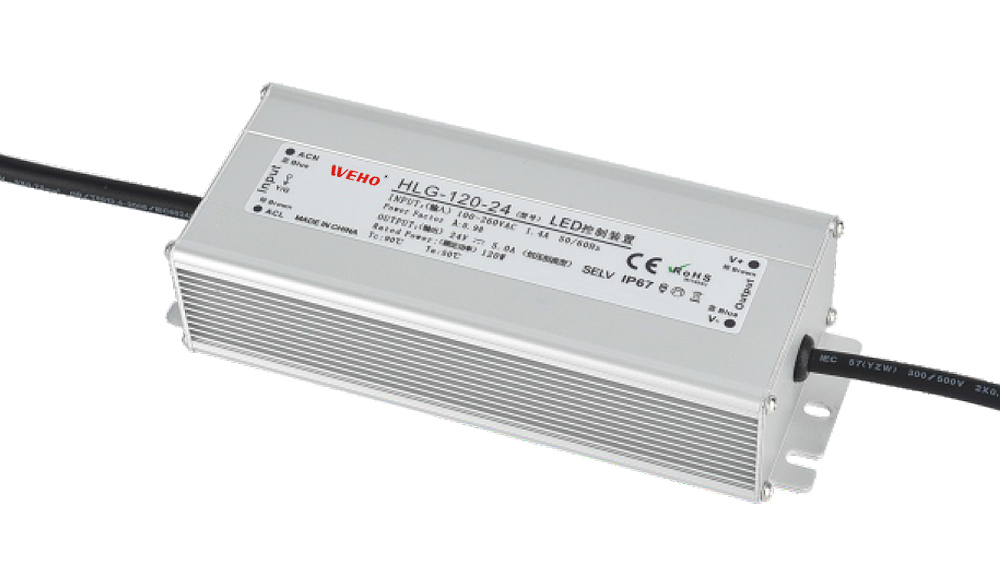

HLG-120 120W 12V 24V 36V 48V Waterproof Ip67 Led Power Supply With PFC

The HLG-120 is a single-output waterproof power supply designed for demanding environments, delivering 120W of continuous power. It supports a wide input voltage range of 95–264VAC or 135–373VDC and offers multiple DC output configurations: 12V/10A, 24V/5A, 36V/3.3A, and 48V/2.5A. With high efficiency up to 91.5%, it ensures energy-saving performance and stable operation across temperatures from -20°C to +60°C. The unit features overcurrent and short-circuit protection with automatic recovery, ensuring reliability in industrial and outdoor applications. Compact dimensions (170×69×43mm) and lightweight design (0.75kg) enhance portability. Compliant with safety standards, it includes 1.5kV isolation resistance and a power factor (PF) >0.96 at full load. Ideal for LED lighting, automation, and harsh-environment systems.

General Specification                                                                         170×69×43mm
                            Model
Specification
HLG-120-12 HLG-120-24 HLG-120-36 HLG-120-48
  DC output voltage,rated current 12V 10A 24V 5A 36V 3.3A 48V 2.5A
  Wave and noise 180mVp-P 180mVp-P 200mVp-P 200mVp-P
  Line regulation ±0.5% ±0.5% ±0.5% ±0.5%
  Load regulation ±2% ±0.5% ±0.5% ±0.5%
  Efficiency 88% 90% 90.5% 91.5%
  Voltage accuracy ±3% ±2% ±2% ±2%
  Input voltage range   95~264VAC/135~373VDC       47~63Hz
  Impulse current   Cold start current 45A/230VAC
  Overcurrent protection   95%~108%of the rated output current starts overcurrent limit,recover automatically after abnormal conditions are removed
  Short circuit protection   Hiccup mode:recover automatically normal output after abnormal conditions are removed
  Setup,rise,hold up time   500ms,30ms,20ms/230VAC(at full load)
  Pressure resistance   I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV
  Isolation resistance   I/P-O/P I/P-FG O/P-FG:100M Ohms/500VDC/25℃ /70%RH
  Working temperature   -20C~+60℃
  Dimension   170×69×43mm
  Weight   0.75kg
  Packing   20PCS
