Model | DR-30-5 | DR-30-12 | DR-30-15 | DR-30-24 |
DC Output Voltage | 5V 0~3A | 12V 0~2A | 15V 0~2A | 24V 0~1.5A |
Wave And Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
Inlet Wire Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load Stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
Efficiency | 74% | 81% | 82% | 83% |
Adjustable Range For DC Voltage | ±10% | ±10% | ±10% | ±10% |
Input Voltage Range | 85~264VAC 120~370VDC 47~63Hz |
|||
Impact Current | Cold Start Current 15A/115VAC 30A/230VAC |
|||
Overload Protection | 105% – 160% cut off the output, automatic recovery | |||
Overload Voltage Protection | 115%-135% shut down O/P voltage, re-power on to recover | |||
Setup, Rise, Hold Up Time | 800ms, 60ms, 50ms/230VAC at full load | |||
Withstand Voltage | I/P-O/P: 1.5kV I/P-F/G:1.5kV O/P-F/G:1.5kV 1 minute |
|||
Isolation Resistance | I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ | |||
Working Temperature | -10℃~+50℃ | |||

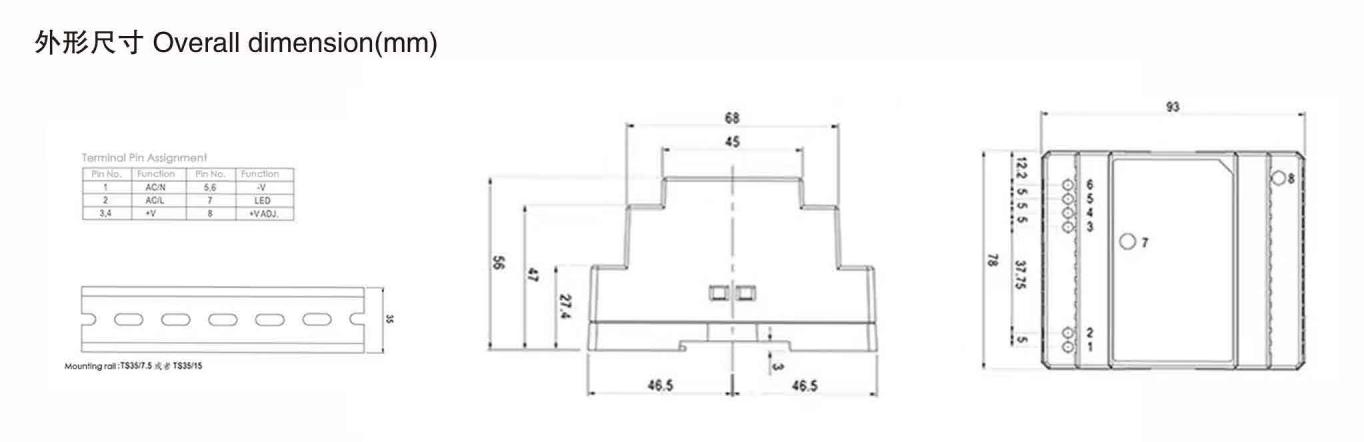

Dimension | 78x93x56mm | |||
Weight | 0.27kg | |||
Packing | 43x32x21.5CM/45PCS/12.5kg |
Hot Sale DR-30 30W Switching Power Supply Din Rail 5V 12V 24V 48V AC/DC Power Supply
The DR-30 series from WeHo is a single-output DIN rail power supply that’s easily mounted to a TS-35/7.5 or 15 DIN rail.
This type of installation can be particularly helpful in a variety of operations, such as industrial control systems, factory automation, and process control.
The DR-30 rail power supply features a versatile 86-264VAC input range, offering multiple output voltage levels including 5V, 12V, 15V, and 24V. This series is an ideal choice for many applications.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
The DR-30 rail-type power supply is a reliable and high-performance device, ensuring safe operation while offering exceptional durability. Its features make it an ideal choice for applications requiring a dependable source of power.
This power supply is designed to provide a safe and secure powering option. The fully isolated plastic housing helps protect the user from any electric hazards, such as contact or shock. In this way, the DIN-rail power supply ensures that all your powering needs are met in an electrically safe environment.
The DR-30 DIN rail power supply is designed to provide optimal performance with a host of features. These include a low no-load power consumption, energy savings, and protections such as short circuits, overloads, and overvoltage. Users can enjoy enhanced reliability with these advanced safety measures.
