Model | DR-60-5 | DR-60-12 | DR-60-15 | DR-60-24 |
DC Output Voltage | 5V 0~6.5A | 12V 0~4.5A | 24V 0~4A | 24V 0~2.5A |
Wave And Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
Inlet Wire Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load Stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
Efficiency | 76% | 82% | 83% | 84% |
Adjustable Range For DC Voltage | ±10% | ±10% | ±10% | ±10% |
Input Voltage Range | 85~264VAC 120~370VDC 47~63Hz |
|||
Impact Current | Cold Start Current 18A/115VAC 36A/230VAC |
|||
Overload Protection | 105% -160% cut off the output, automatic recovery | |||
Overload Voltage Protection | 115%-135% shut down O/P voltage, re-power on to recover | |||
Setup, Rise, Hold up time | 800ms, 60ms, 50ms/230VAC at full load | |||
Withstand Voltage | I/P-O/P: 1.5kV I/P-F/G:1.5kV O/P-F/G:1.5kV 1 minute |
|||
Isolation Resistance | I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ | |||
Working Temperature | -10℃~+50℃ | |||

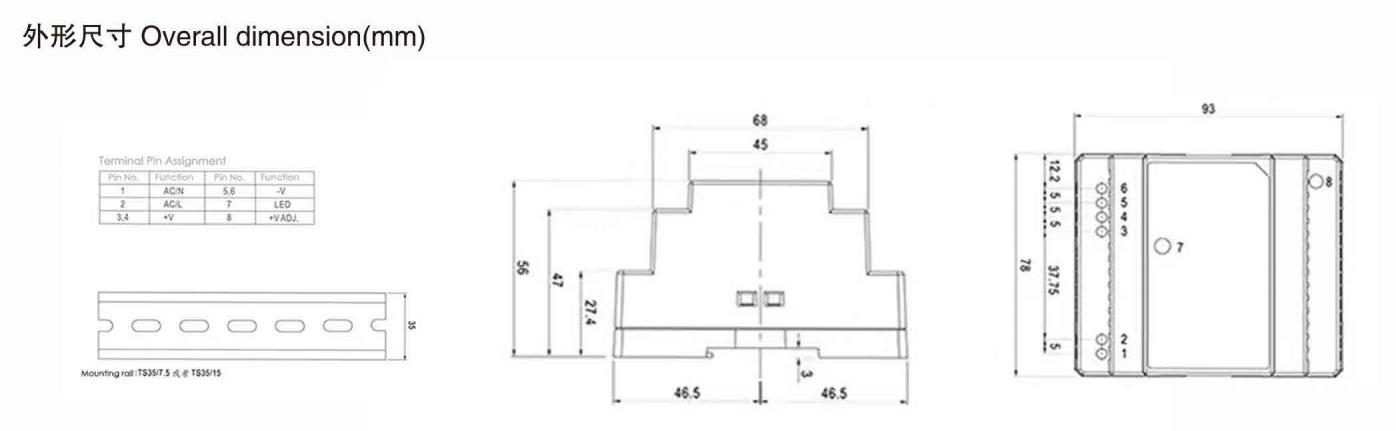

Dimension | 78x93x56mm | |||
Weight | 0.3kg | |||
Packing | 43x32x21.5CM/45PCS/13.5kg |
WEHO DR Series Ac To Dc Industrial DR-60 60W Din Rail 5V-24V Power Supply For Led
The DR-60W series from WeHo are DIN rail-mounted single-output power supplies and can be fixed to either TS-35/7.5 or 15 rails. This Series is ideal for numerous applications.
The DR-60W Series has been designed with a fully isolated plastic case to reduce the chance of contact and possible risk of shock.
The DR-60W series is equipped with a range of features, which provide efficient operation. These include low no-load power consumption to save energy, as well as comprehensive protections against short circuiting and overloads, plus over-voltage protection.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
DR-60 presents a reliable and flexible switching power supply solution. We use only the highest quality materials and our products provide superior durability and safety when in use.
The full range 86-264VAC input contains output voltage lines of 5V, 12V, 15V, and 24V. This series of power supplies ensure that your requirements are consistently met.
