| Model | XLG-60-12 | XLG-60-24 | XLG-60-36 | XLG-60-48 |
| DC output voltage | 12V | 24V | 36V | 48V |
| Rated output current | 5A | 2.5A | 1.7A | 1.25A |
| Constant current range | 6~12V | 12~24V | 18~36V | 24~48V |
| Output power | 60W | 60W | 61.2W | 60W |
| Wave and noise | 150mVp-p | 150mVp-p | 180mVp-p | 200mVp-p |
| Voltage accuracy | ± 2% | ± 1.5% | ± 1.5% | ± 1.5% |
| Line regulation | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Load regulation | ± 2% | ± 0.5% | ± 0.5% | ± 0.5% |
| Start, rise, hold time | 500ms，80ms，16ms/230VAC (at full load) | |||
| Input voltage range | 95 ~264VAC，135 ~373VDC | |||
| Frequency range | 47 ~ 63Hz | |||
| AC input current | 1.4A/115VAC 0.8A/230VAC | |||
| Efficiency | 87.5% | 88.5% | 89.5% | 90.0% |
| Impulse current | Cold start current 50A/230VAC | |||
| Leakage current | <1mA/240VAC | |||
| Overcurrent protection | 95%~108% of the rated output current starts overcurrent limit， recover automatically after abnormal conditions are removed |
|||
| Short circuit protection | Hiccup mode: recover automatically normal output after abnormal conditions are removed | |||
| Working temperature | -20℃~ +60℃ | |||
| Working humidity | 20% ～90% RH, non condensing | |||
| Storage temperature and humidity | -40℃~ +85℃；10% ～95% RH，non condensing | |||
| Seismic resistance | 10~500Hz,，3G 10min/ 1 cycle，X, Y, Z axes，duration 60 minutes | |||
| Pressure resistance | I/P~O/P：1.5KVAC I/P~FG：1.5KVAC O/P~FG：0.5KVAC | |||
| Isolation resistance | I/P~O/P，I/P~FG，O/P~FG: 100M Ohms/500VDC/25℃/70%RH | |||
| Safety standard | Compliance to UL60950-1，TUV EN60950-1， GB19510.1，KC61347-1，IP67 | |||
| Electromagnetic compatibility emission | Compliance to EN55022 Class A，GB17625.1，EN55015 | |||
| Electromagnetic compatibility immunity | Compliance to EN55024 | |||

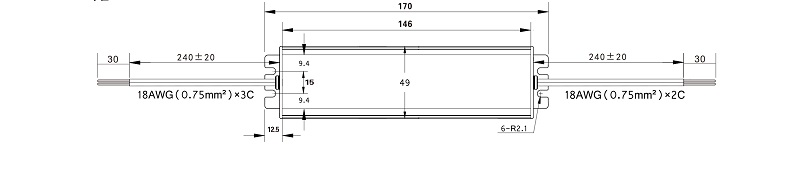

| Dimension | 170*49*34mm (L*W*H) | |||
| Packing | 0.45kg/30pcs/14.5kg/0.025 cubic meters | |||
IP67 Waterproof LED Driver AC 95-264V DC 12V 24V 36V 48V 60W Single Output Constant Current Switching Power Supply
XLG-60W adopts the international common AC input voltage range，and the whole series provides 12V，24V，36V and 48V outputs. Built-in long-life aluminum electrolytic capacitors provide ultra-low no-load power consumption (less than 0.75W), which can make the terminal system easily meet international energy requirements.
XLG-60W has Short circuit /Overload /Overvoltage /Overtemperature protection function and anti -3G vibration capability. 100% full load burning machine test, with high efficiency, long life and high reliability. It complies with safety regulations such as UL1012 and EN60950-1，and can meet the energy-saving requirements of the new generation of LED lighting, providing a cost-effective solution for various LED lighting.
If you have any questions, please do not hesitate to contact us at Email: [email protected]
