LRS-600W Single Output Power Supply

LRS-600 Ac to Dc Constant Voltage Switching Power Supply High Efficiency Smps Power Supply

The LRS-600 series is a very popular style. It is the highest power product in our LRS series so far.
It has a three-year warranty,88%High work efficiency,12V 24V 36V 48V And customization 27V 45V Other Power.
Delivering an extremely low no-load power consumption(less than 0.5W), it allows the end system to easily meet the worldwide energy requirement.
LRS-600 With extremely high cost performance to solve your industrial problems.

If you interested in This Series,Please contact us at Email: [email protected]

Request A Quote

Description

Specification/Model	LRS-600-12	LRS-600-24	LRS-600-36	LRS-600-48
DCoutput voltage,current	12V 0～40A	24V 0～25A	36V 0～16.7A	48V 0～12.5A
Wave and noise	150mVp-p	180mVp-P	240mVp-P	240mVp-p
Inlet wire stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±1%	±0.5%	士0 .5%	士0.5%
Efficiency	82%	86%	87%	88%
Adjustable range forDC voltage	±10%	±10%	±10%	±10%
Input voltage range	95～132V/180～264V254～370V47～63Hz 95～132VAC/180～264VACby switch 254～370VDC 47～63Hz
Impact current	Cold start current 35A/115VAC 65A/230VAC
Overload protection	110%～135%cut off the output,Protection type:Hiccup mode,recovers automatically after fault condition is removed
Over voltage protection	115%~135%rated output power Protection type:Hiccup mode,recovers automatically after fault condition is removed
Setup,rise,hold uptime	1500ms,30ms/230VAC 2000ms,50ms/115VAC
Withstand voltage	I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute
Isolation resistance	I/P-O/P I/P-FG O/P-FG:100MOhms/500VDC/25℃/70%RH
Working temperature	10C～+50C
Dimension	215X115X50mm
Weight	lkg
Packing	45.5×31.5×26CM/20PCS/20kg

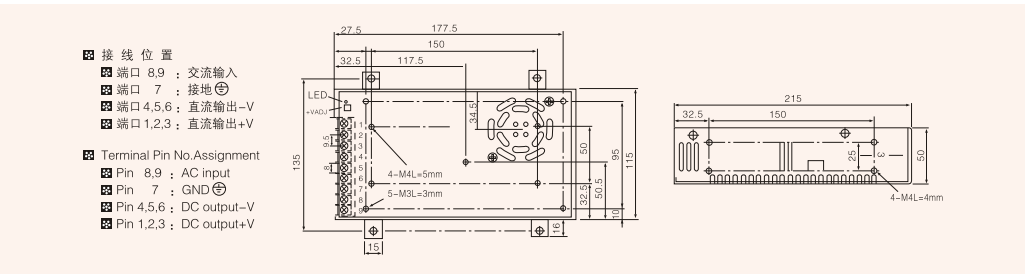

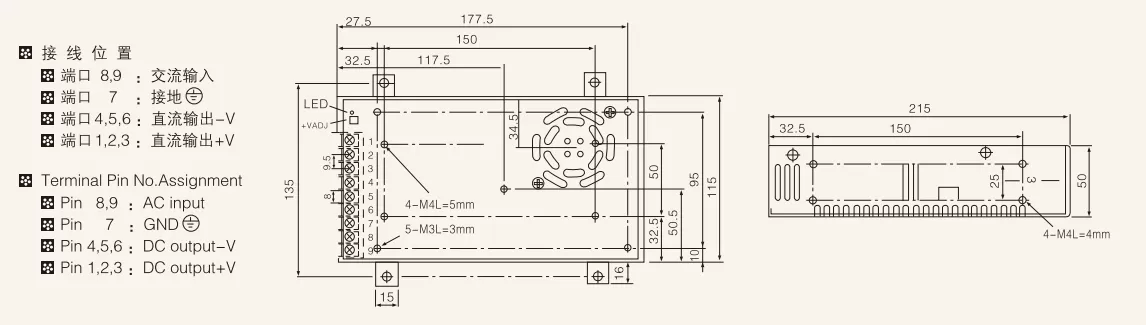

Overall dimension(mm)

LRS-600W Single Output Power Supply title=

We have been producing switching power supplies for 16 years and have great experience in solving your related problems
This product has a three-year warranty
This product is designed to resist up to 300VAC surge input for 5 seconds.
The no-load power consumption of this product is <0.75W.
