Made in china 240W single output dc power supply din rail

WeHo’s DR-240 series is a single output Din rail type power supply that can be installed on TS-35/7.5 or 15 DIN rails.

Adopting the full range 86-264VAC input, the entire series provides an output voltage line of 5V,12V,15V,24V,36V and 48V

DR-240 is a reliable switching power supply with high-quality material, durable, and safe to use.

DR-240 is a little higher price to perform power supply solutions for various industrial applications.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Download Request A Quote

Description

Specifications&Model

Model	DRP-240-24	DRP-240-48
DC Output Voltage	24V	48V
Output Voltage Range (Note:2)	±1%	±1%
Rated Output Current	10A	5A
Output Current Range	0-10A	0-5A
Wave And Noise (Note:3)	80mVp-p	150mVp-p
Inlet Stability (Note:4)	±0.5%	±0.5%
Load Stability (Note:5)	±1%	±1%
DC Output Power	240W	240W
Efficiency	84%	85%
Adjustable Range For DC Voltage	21.6~26.4V	43.2~52.8V%
AC Input Voltage Range	88~264VAC 47~63Hz; 120~370VDC
Input Current	3.5A/115V 1.8A/230V
AC Inrush Current	Cold-start current 30A/115V 60A/230V
Leakage Current	<3.5mA/240VAC
Overload Protection	105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery
Over-Voltage Protection	30~34V	54~60V
High-Temperature Protection	100°c±5°c(TSW1)
Temperature Coefficient	±0.03%/°c(0~50°c)
Setup, Rise, Hold Up Time	800ms, 40ms, 20ms/230VAC 800ms, 40ms, 20ms/115VAC
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand Voltage	Input and output internal: Input and enclosure: 1.5KvAC Output and enclosure: 0.5KvAC
Isolation Resistance	Input and output internal: Input and enclosure, Output and enclosure: 500VDC/100MΩ
Working Temperature And Humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH

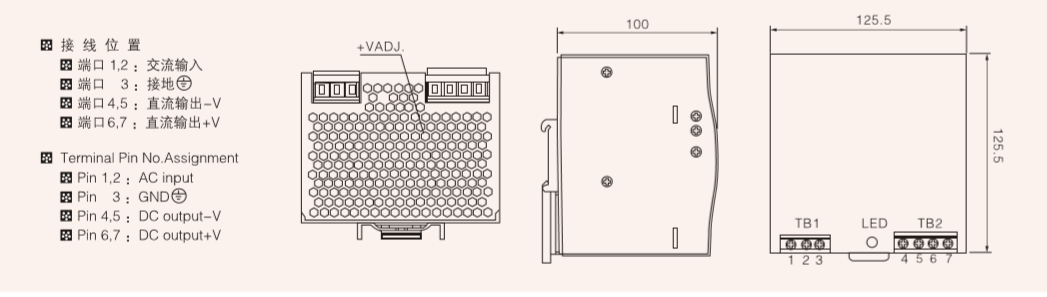

Overall Dimension	125.5×125.2×100m
Weight	1.2Kgs 20PCS/14Kg/1.1CUFT
Safety Standards	Meet UL 1012 requirements (Not apply for the mark)
EMC Standards	Meet FCC PART 15 J Conduction class B

Design

Features

We make transformers and power inductors with pure coppers all by ourselves.

This product has an integrated design that minimizes temperature rise and calorific value.

This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions

The product can be mounted on DIN rail TS-35/7.5 or 15.

DIN RAIL type, easy to install.

This product has a built-in PFC function, PF>0.95.

Our products have CE ROHS certification to ensure quality.

The product has completed the 100% full load aging test.
