Mini size 50w 12v dc switching power supply led and driver

WeHo’s MS-50 series Power supply is a mini-type enclosed power supply

It is a high-price-to-performance power supply solution for different industrial applications.

The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.

If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.

<tdrowspan=”5″>input<tdcolspan=”3″>170~264VAC 47~63Hz, 235~373VDC<tdcolspan=”3″>0.65A/230VAC<tdcolspan=”3″>Cold start current 30A/230VAC<tdcolspan=”3″ >-10℃~+60℃; 20%~90%RH (please refer to reduce the specified number load curve)<tdcolspan=”3″ >Accord with EN55022, CLASSA<tdcolspan=”4″>1. All the parameters in has not specified, all is in 230V voltage input, AC rated load and 25 ℃ conditions measuring income value.

Model MS-50-5 MS-50-12 MS-50-24
Output DC Output Voltage 5V 12V 24V
Output Voltage Tolerance ±1% ±1% ±1%
Rated Output Current 10A 4.2A 2.1A
Output Current Range 0~10A 0~4.2A 0~2.1A
Output Power 50W 50W 50W
Ripple And The Noise 80mVp-p 120mVp-p 120mVp-p
DC Voltage Adjustable Scope ±10% ±10% ±10%
Start, Rise, Keep Time 800ms, 20ms, 24ms/230VAC.
Input Input Voltage Range 170~264VAC 47~63Hz,235~373VDC
Exchange Input Current 0.65A/230VAC
Efficiency 80% 82% 84%
Impulse Current Cold start current 30A/230VAC
Leakage Current <1mA/240VAC
Protection Characteristics Overload Protection Protection way: hiccups mode, load abnormal conditions can be removed recovery
Environment Working Temperature, Humidity Accord with EN55022,CLASSA
Keep Temperature, Humidity -20℃~+85℃; 10%~95%RH No condensation
Vibrate Resistance 10~500Hz, 2G 10min./1 cycle time, 60 minutes, the axis
Security Compression Sex Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5: 0.5KVAC
Insulation Resistance Between the input and output, the output and input: with ground: 100M Ohms/500VDC
Complies With The Standards Safety Standards Meet the UL1012 requirements
EMC Standard Accord with EN55022,CLASSA
Other Weight 0.26kg 111*78*36(L*W*H)
Packaging 0.26kg/50pcs/14kg/0.9CUFT
Note
2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

The white cap on the connector is for safety precautions against electric shock and dust protection

We make transformers and power inductors with pure coppers all by ourselves,

Weho stocks 150,000 sets of commonly used models, ensuring quick delivery.

This product has a universal AC input that is full range (up to 264VAC).

The product has completed the 100% full load aging test.

This product is covered by a 24-month warranty.

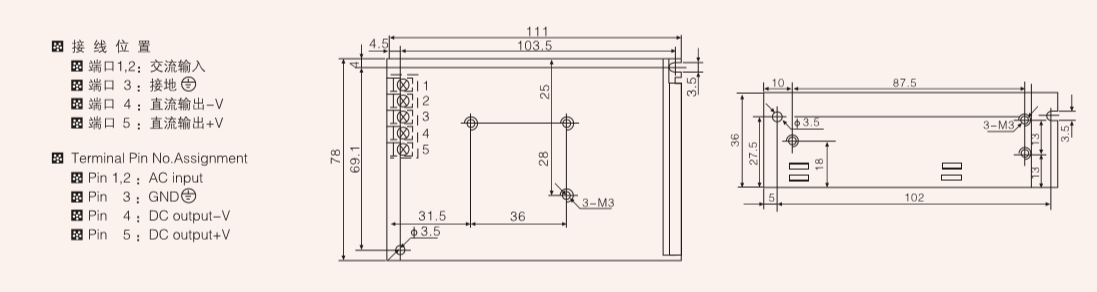

Product size: 111*78*36mm (L * W * H)
