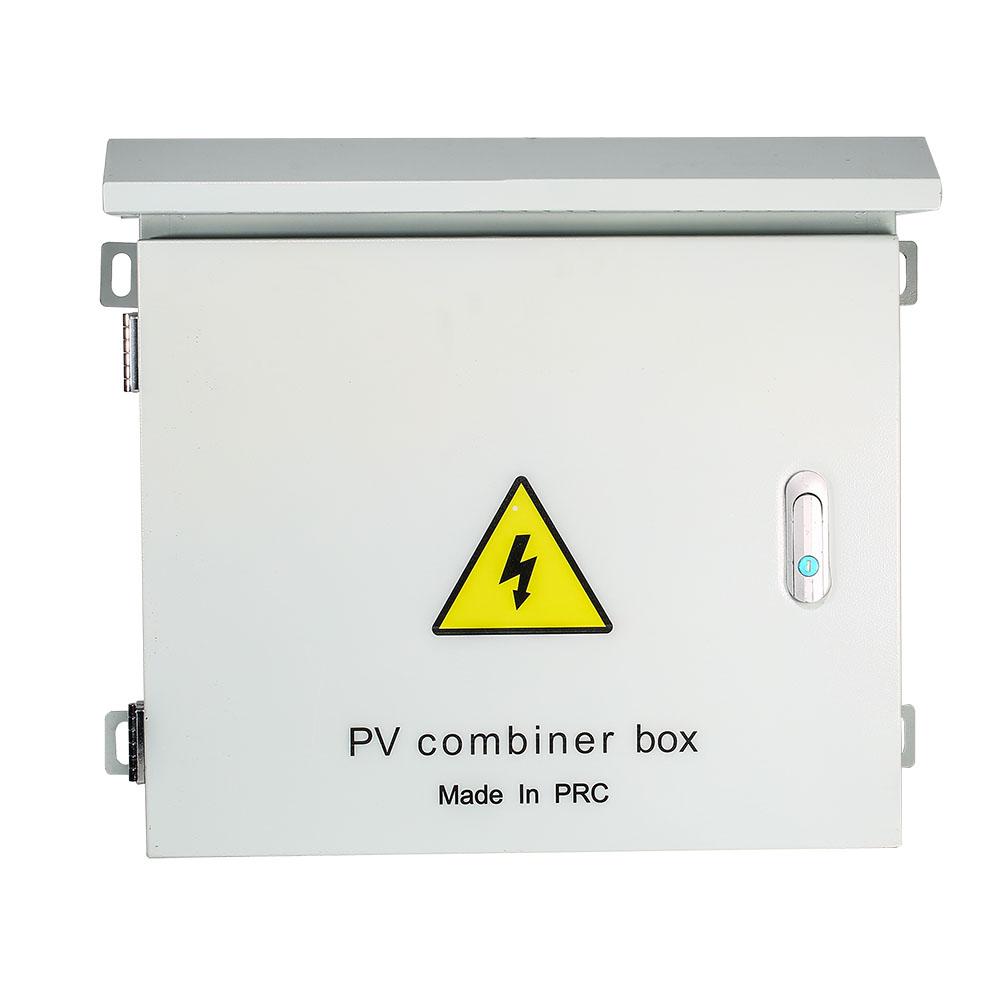

PV6/1 DC combiner box

It greatly simplifies the input wiring of the DC power distribution cabinet and inverter. Realize lightning protection, short circuit protection, and grounding protection.

PV combiner box is divided into two types: intelligent box and non-intelligent box.

An intelligent PV combiner box is equipped with a monitoring unit, then detects the input current of each string, detects inside temperature, detects lightning protection status, detects circuit breaker status and summarizes output voltage, and so on.

If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.

Request A Quote

Description

Features

Advantages of PV6/1 DC combiner box

It has high reliability
it comes with a dc fuse
It is equipped with DC surge protection
It comes with a DC circuit breaker or a DC load disconnect switch

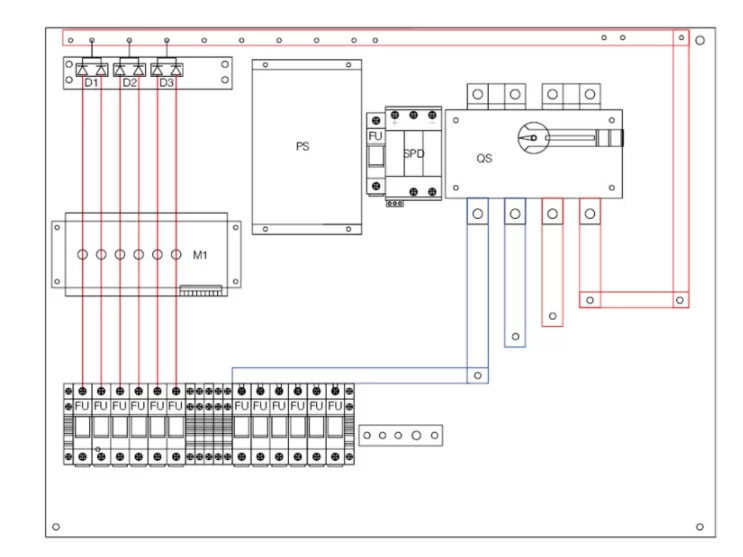

Installation Dimensions

Strong Adaptability

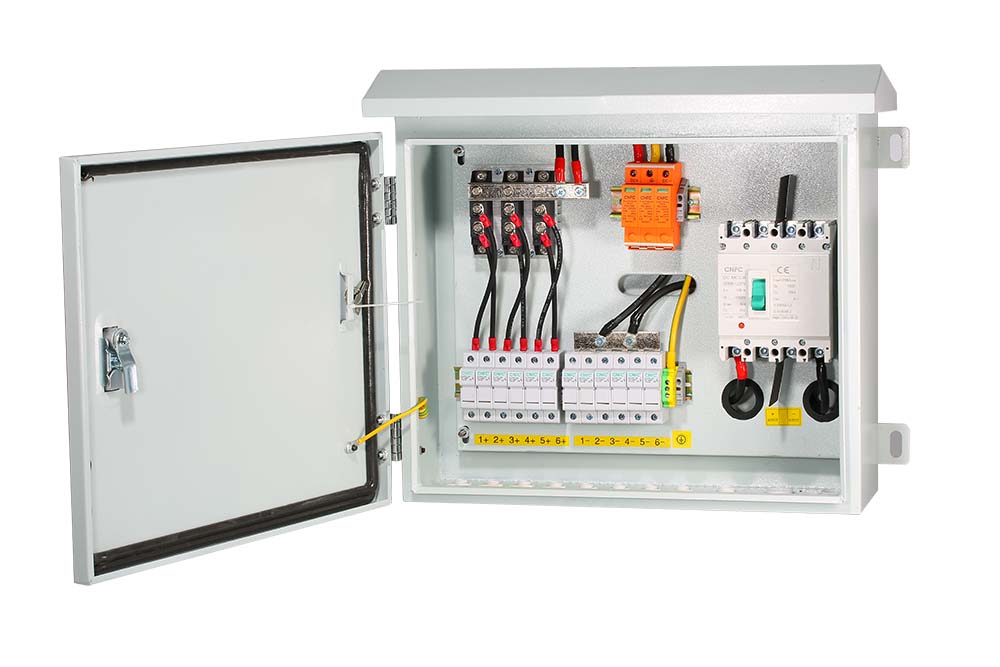

PV6/1 PV combiner box bus synthetic DC input of 6 PV components to 1 output. Each channel is with a fuse. The output side is equipped with lightning protection and a circuit breaker.

IP65 waterproof, dustproof, UV-proof design.
PV6/1 DC combiner boxes have been widely used after undergoing rigorous testing in both high and low temperatures.
THE PV6/1 DC combiner box is easy to install, and the system wiring is straightforward.
PV6/1 DC combiner box is made of cold-rolled steel and other metal materials.
PV6/1 DC combiner boxes are highly adaptable in configuration.

Used for single-crystal silicon solar modules, polycrystalline silicon solar modules, and thin film solar modules. The current rating of the photovoltaic fuse, circuit breaker, and load isolation switch is modified
