Quality Control 30W Triple output variable switch mode dc power supply

WeHo’s T-30 Series is an AC/DC multi-output Power supply which standard model that offers the most cost-effective option when multiple voltages are required.

Input Voltage of T-30: 110V/220V AC range selectable by switch

T-30 is a reliable switching power supply with high-quality material, durable, and safety to use.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Download Request A Quote

Description

Specifications&Model

Model	T-30A	T-30B
Model	CH1	CH2	CH2	CH1	CH2	CH2
DC Output Voltage	5V	12V	-5V	5V	12V	-24V
Output Voltage Range(Note:2)	±2%	+2, -6%	+2, -10%	±2%	+2, -10%	±6%
Rated Output Current	3A	1A	0.5A	3A	1A	0.5A
Output Current Range	0.5-3A	0.1-1A	0.1-0.5A	0.5-3A	0.1-1A	0.1-0.5A
Wave And Noise(Note:3)	50mVp-p	100mVp-p	50mVp-p	50mVp-p	100mVp-p	100mVp-p
Inlet Stability(Note:4)	±0.5%	±1%	±1%	±0.5%	±1%	±1%
Load Stability(Note:5)	±0.5%	±5%	±5%	±0.5%	±5%	±5%
DC Output Power	30W	33W
Efficiency	70%			72%
Adjustable Range For DC Voltage	CH1; +10, -5%			CH1; +10, -5%
Input Current	0.8A/115V 0.45A/230V
AC Inrush Current	Cold-start current 18A/115V 36A/230V
Leakage Current	<0.5mA/240VAC
Temperature Coefficient	±0.03%/°c(0~50°c) ON+5V
Setup, Rise, Hold Up Time	200ms, 50ms, 30ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand Voltage	Input and output internal: Input and enclosure: 1.5KvAC, Output, and enclosure: 0.5KvAC
Isolation Resistance	Input and output internal: Input and enclosure, Output and enclosure: 500VDC/100MΩ
Working Temperature And Humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall Dimension	129×98×38mm
Weight	0.4Kgs
Safety Standards	Meet UL 1012 requirements (Not apply for the mark)
EMC Standards	Meet FCC PART 15 J Conduction class A

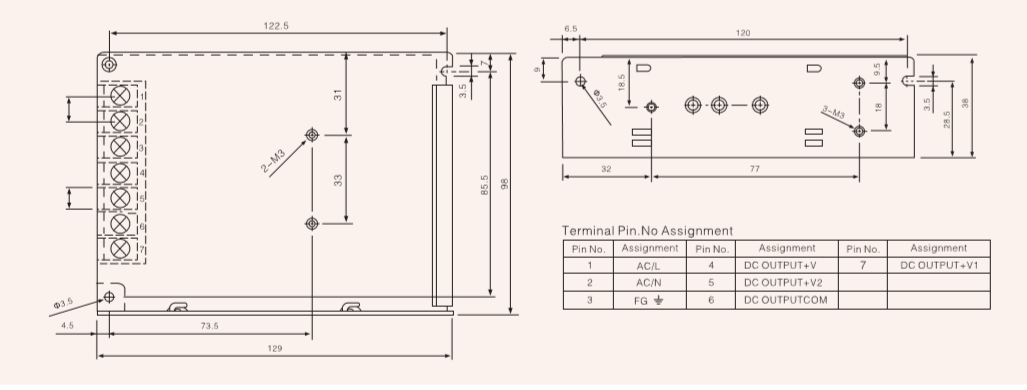

Design

30W Triple output variable switch mode dc power supply

Features

We make transformers and power inductors with pure coppers all by ourselves.

Weho stocks 150,000 sets of commonly used models, ensuring quick delivery.

The product is highly stable, the workmanship is steady, the output voltage is consistent, and there is no drift.

10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes

We are a power supply manufacturer with 15 years of experience.

This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions.

The minimum order quantity for this product is 100 pieces.

This model provides 600 Watts at 100% power.
