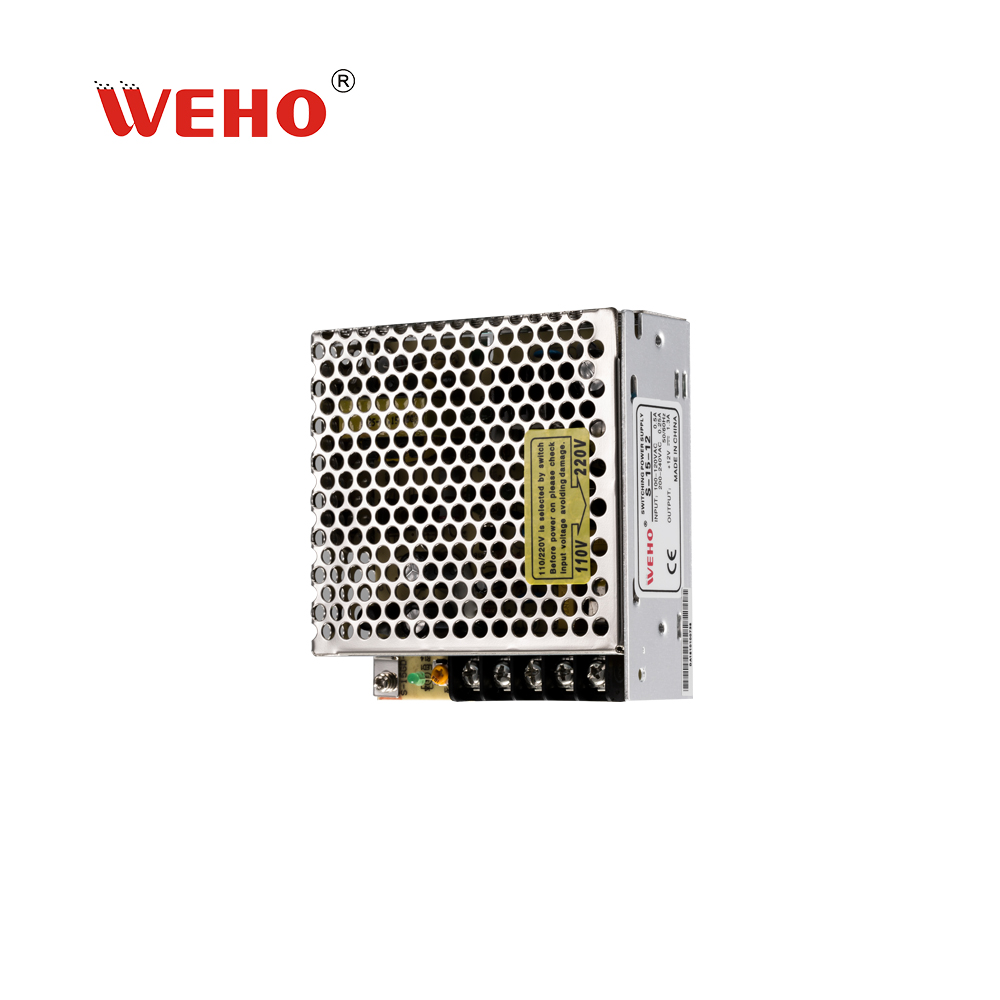

S-15W series normal single switching power supply

WeHo’s S-15W Switching Power Supply is a reliable switching power supply with high-quality material, durable, and safety to use.

A Switching Power Supply that can keep the voltage stable.

Great switching power supply for home appliances.

110V/220V AC input range, cooling by free air convection.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Download Request A Quote

Description

Specifications&Model

Model		S-15-5	S-15-12	S-15-24
Output	DC Voltage	5V	12V	24V
	Voltage Tolerance	±2%	±1%	±1%
	Rated Current	3A	1.3A	0.7A
	Current Range	0-3A	0-1.3A	0-0.7A
	Rated Power	15W	15.6W	16.8W
	Ripple & Noise	50mVp-p	50mVp-p	100mVp-p
	DC Adjustment Range	+10,-5%	±10%	±10%
	Setup, Rise, Hold Time	200ms, 100ms, 30ms Full load
Input	Voltage Range	85～132 VAC / 170～264 VAC 47～63 Hz by switch 240～370VDC
	AC Curren	0.5A/115V 0.25A/230V
	Efficiency	65%	68%	72%
	Inrush Current	Cold start: 15A/115VAC 30A/230VAC
	Leakage Current	＜0.5 mA/240VAC
Protection	Over Load	110%～160% Cut off output. Fold back current limiting, recovers automatically
Environment	Working Temp. Humidity	-10℃ ～ +60℃; 20%～90%RH
	Storage Temp, Humidity	-20℃ ～ +85℃; 10%～95%RH
	Vibration	10～500Hz, 2G 10min./1cycle, the period for 60min, each along X, Y, Z axe
Safety	Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVA
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 500VDC/100M
Standard	Safety Standard	Design refers to UL1012
	EMC Standard	Design refer to FCC PART15J CLASS B
Others	Weight	0.3Kg
	Packing	60pcs/18Kgs

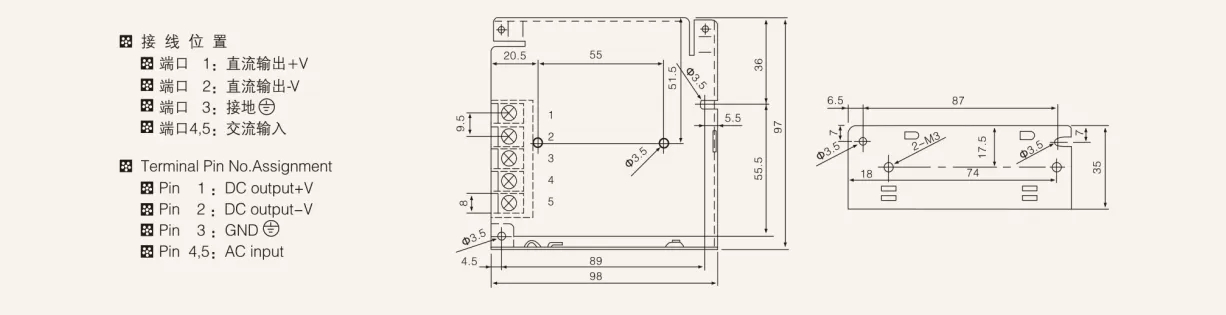

Design

Features

This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions

Input voltage: 90-132/180-264VAC, changed by switch

The product has completed the 100% full load aging test.

The white cap on the connector is for safety precautions against electric shock and dust protection

Product size: 99*97*35mm (L*W*H)
