Model Specification | S-50-5 | S-50-12 | S-50-15 | S-50-24 |
DC Output Voltage | 5V | 12V | 15V | 24V |
Output Voltage Range (Note:2) | ±2% | ±1% | ±1% | ±1% |
Rated Output Current | 10A | 4.2A | 3.4A | 2.1A |
Output Current Range | 0~10A | 0~4.2A | 0~3.4A | 0~2.1A |
Wave And Noise (Note:3) | 75mVp-p | 60mVp-p | 60mVp-p | 50mVp-p |
Inlet Stability (Note:4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load Stability (Note:5) | ±1% | ±0.5% | ±0.5% | ±0.5% |
DC Output Power | 50W | 50.4W | 51W | 50.4W |
Efficiency | 71% | 78% | 78% | 80% |
Adjustable Range For DC Voltage | +10,-5% | ±10% | ±10% | ±10% |
AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz, 240~370VDC | |||
Input Current | 1.3A/115V 0.65A/230V |
|||
AC Inrush Current | Cold-start current: 18A/115V 36A/230V |
|||
Leakage Current | <0.5mA/240VAC | |||
Overload Protection | 105%-150% Type: pulsing hiccup shutdown Reset: auto-recovery |
|||
Temperature Coefficient | ±0.03%/°C(0~50°C) | |||
Setup, Rise, Hold Up Time | 200ms, 100ms, 30ms | |||
Vibration | 10~500Hz, 2G 10min,/1 cycle. Period for 60min, Each axes | |||

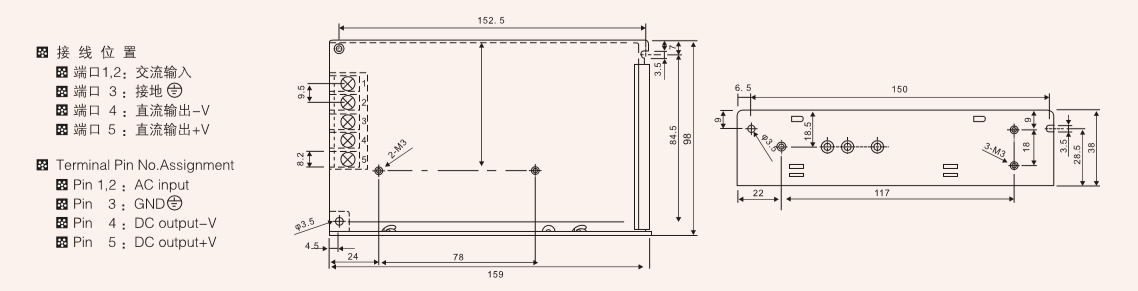

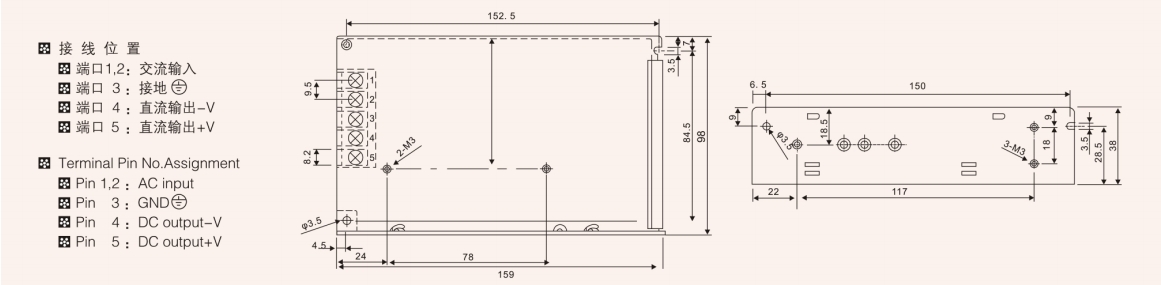

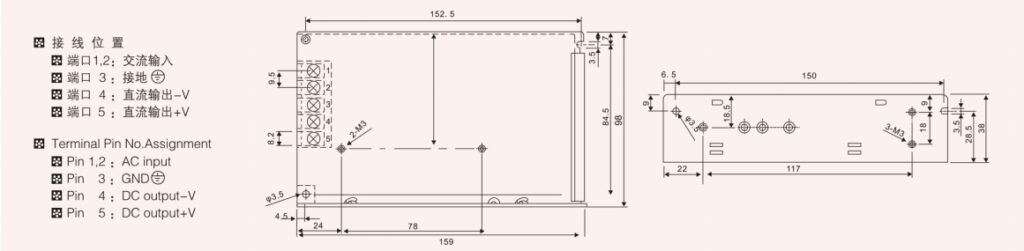

Overall Dimension | 159X97X38mm (L*W*H) | |||
Weight | 0.5kgS | |||
Safety Standards | Meet UL 1012 requirement(Not apply for the mark) |
S-50W series normal single switching power supply
WeHo’s S-50W is an Enclosed switching power supply Low price and high reliability 105℃ output capacitor AC input power.
A Switching Power Supply that can keep the voltage stable.
Great switching power supply for LED Strip Light Screen Lighting Monitor Power Supply
110V/220V AC input range, cooling by free air convection.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
The white cap on the connector is for safety precautions against electric shock and dust protection
Input voltage: 90-132/180-264VAC, changed by switch
This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions
We are able to tailor our products to customer specifications.
The product is equipped with a short circuit protection function that will automatically restore it to normal operation.
We can order according to the samples.
The product has completed the 100% full load aging test.
S-50W: 30pcs/ctn
Product size: 159*98*38mm (L * W * H)
