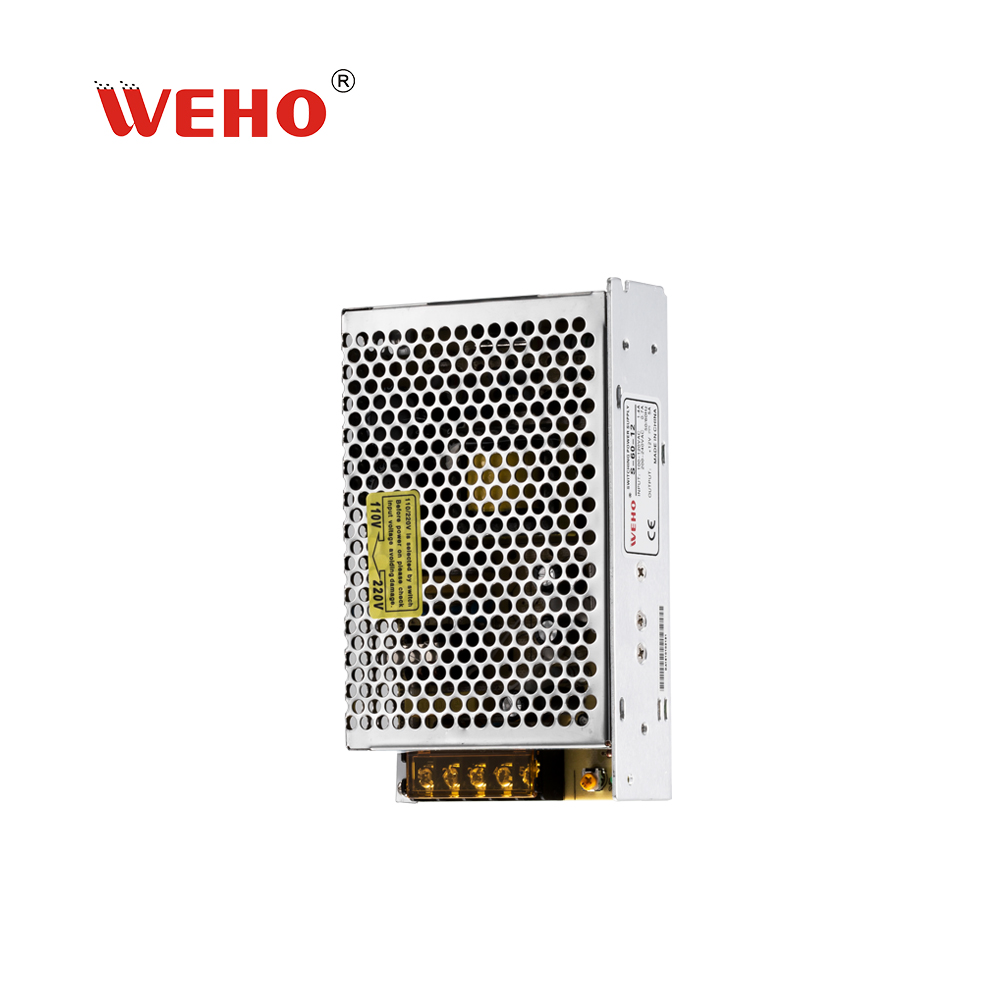

S-60W series normal single switching power supply

WeHo’s S-60W Switching Power Supply is a reliable switching power supply with high-quality material, durable and safe to use.

A Switching Power Supply that can keep the voltage stable.

Great switching power supply for LED Strip Light Screen Lighting Monitor Power Supply

110V/220V AC input range, cooling by free air convection.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Download Request A Quote

Description

Specifications&Model

Model	S-60-5	S-60-12	S-60-15	S-60-24
DC Output Voltage	5V	12V	15V	24V
Rated Output Current	12A	5A	4A	2.5A
Output Current Rage	0-12A	0-5A	0-4A	0-2.5A
Wave And Noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet Stability	±0.5%	±0.5%	±0.5%	±0.5%
Load Stability	±1%	±0.5%	±0.5%	±0.5%
Efficiency	71%	78%	78%	82%
Adjustable Range For DC Voltage	±10%	±10%	±10%	±10%
AC Input Voltage Range	AC100~240V 47~63Hz; 240~370VDC
Input Current	2A/115V 1A/230V
AC INnrush Current	Cold-start current: 18A/115V 36A/230V
Overload Protection	105%~150% Type: Foldback current limiting Reset: auto-recovery

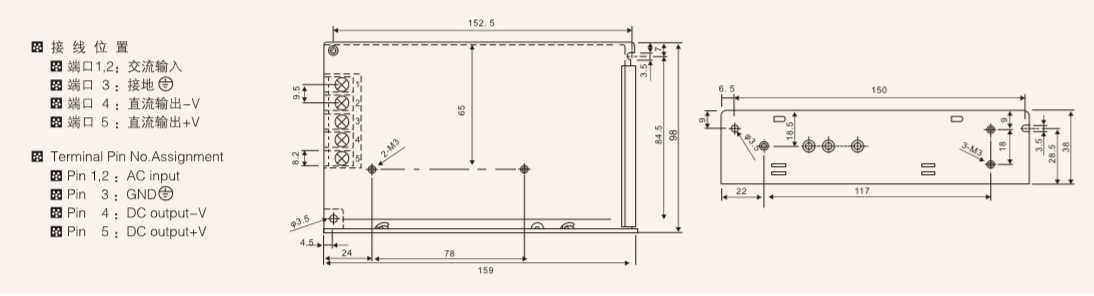

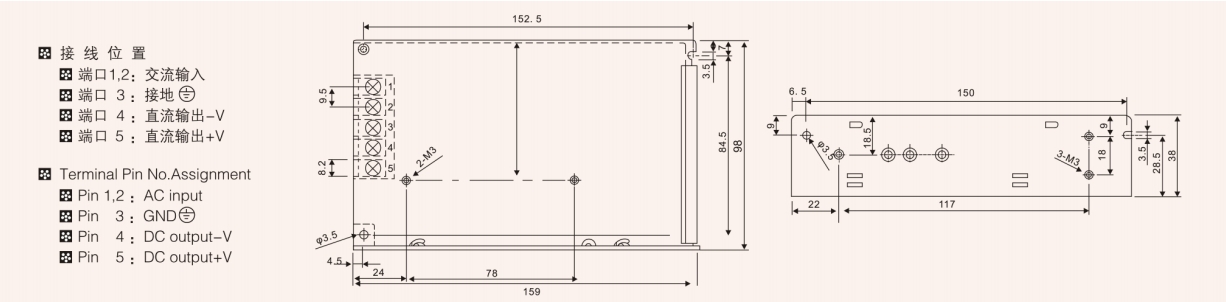

Overall Dimension	1599838mm
Safety Standards	Meet ULGB4943 UL60950 EN60950 requirement
EMC Standards	Meet EN55022 GB9254 class A requirement
Weight	0.5Kgs

Design

Features

We can customized different voltage of output 12v 24v 13.5v 27v 36v 48v 60v 70v 110v

Input voltage: 90-132/180-264VAC, changed by switch

This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions

We are a power supply manufacturer with 15 years of experience.

The white cap on the connector is for safety precautions against electric shock and dust protection

The product has completed the 100% full load aging test.

Product size: 159*98*38mm (L*W*H)
