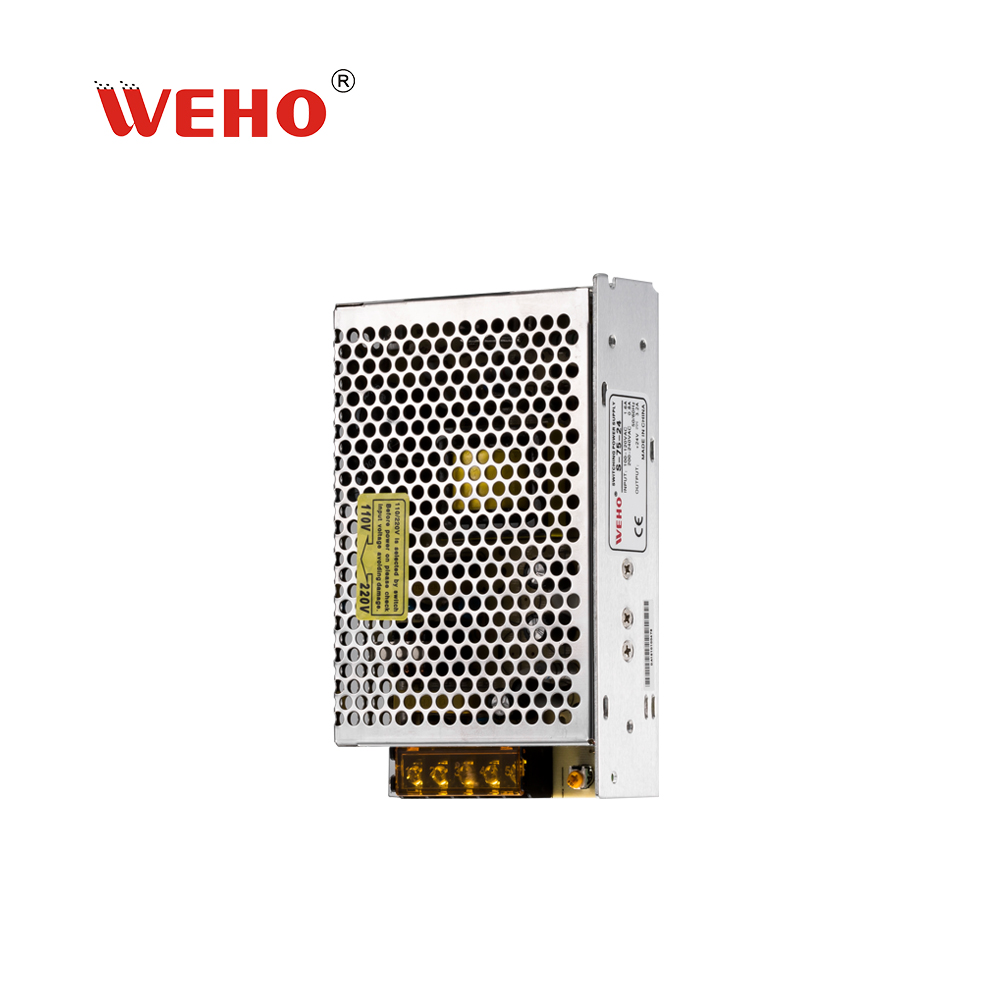

S-75 Series normal single switching power supply

WeHo’s S-75W Switching Power Supply is a reliable switching power supply with high-quality material, durable and safe to use.

A Switching Power Supply that can keep the voltage stable.

Great switching power supply for home appliances.

110V/220V AC input range, cooling by free air convection.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Download Request A Quote

Description

Specifications&Model

Model	S-75-12	S-75-15	S-75-24	S-75-48
DC Output Voltage	12V	15V	24V	48V
Rated Output Current	6A	5.0A	3A	1.5A
Output Current Range	0-6A	0-5A	0-3A	0-1.5A
Wave And Noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet Stability	±0.5%	±0.5%	±0.5%	±0.5%
Load Stability	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	78%	79%	82%	83%
Adjustable Range For DC Voltage	±10%	±10%	±10%	±10%
AC input Voltage Range	85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
AC Inrush Current	Cold-start current: 15A/115V 30A/230V
Overload protection	105%~150% Type: pulsing hiccup shut down Reset: auto-recovery
Setup Rise Hold-Up Time	200ms, 50ms, 20ms
Withstand Voltage: Input And Output Internal	1.5KvAC, Output, and enclosure: 0.5KvAC
Isolation Resistance	Input and output internal, input and enclosure, output and enclosure:500VDC/100MΩ
Working Temperature	0~50°C
Safety Standards	GB4943 UL60950 EN60950
EMC Standards	EN55022 GB9254, class A

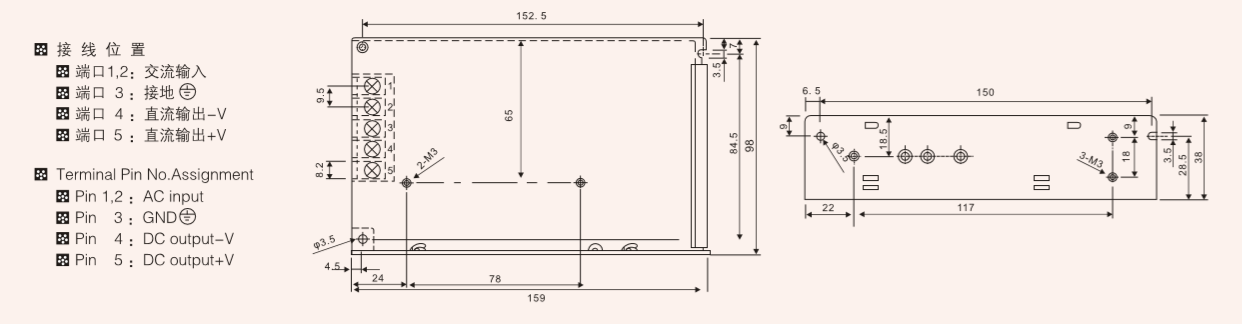

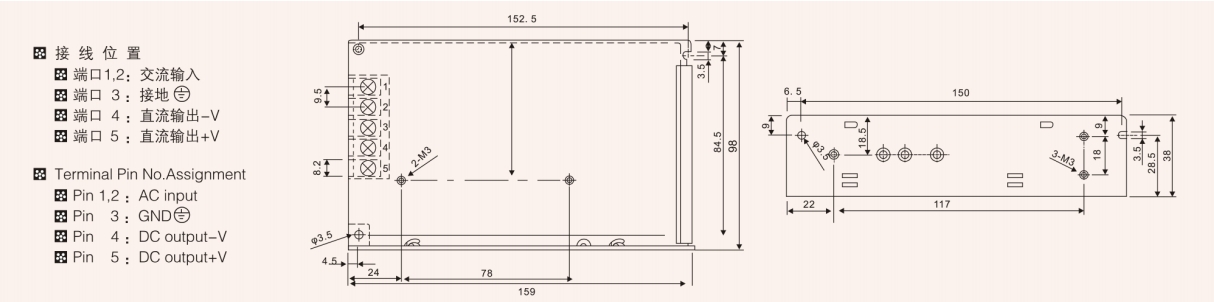

Overall Dimension	1599738mm
Weight	0.56Kgs

Design

Features

The white cap on the connector is for safety precautions against electric shock and dust protection

This product is ideal for a number of LED lighting and mobile signage purposes.

This product meets global LED lighting safety standards.

Input voltage: 90-132/180-264VAC, changed by switch

This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions

Our partners can cooperate with us in OEM or ODM

The product has completed the 100% full load aging test.

Product size: 159*98*38mm (L*W*H)
