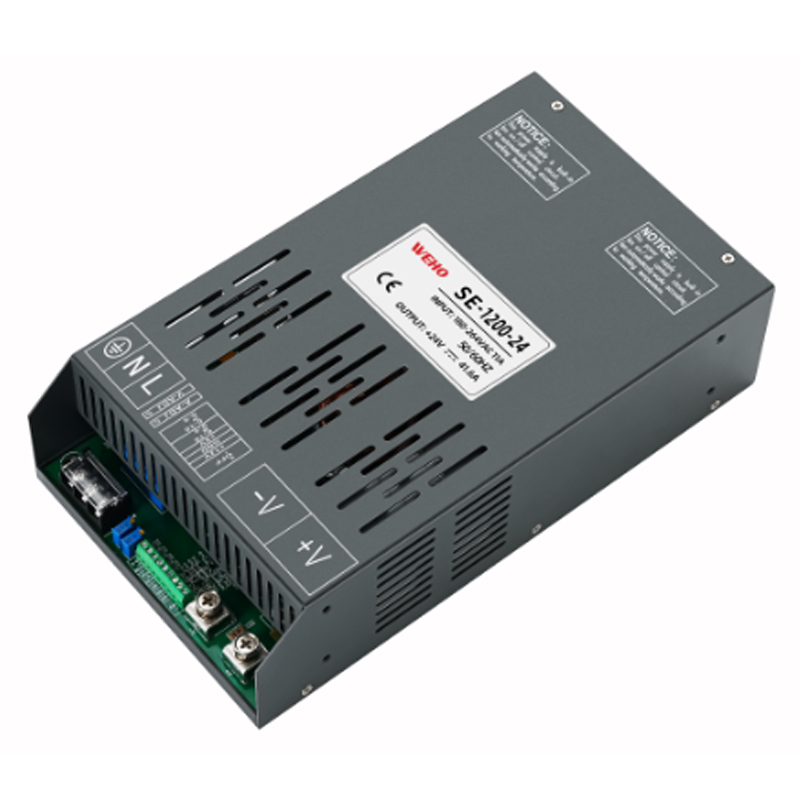

SE-1200 Single Output Switching Power Supply
The WEHO SE-1200W series offers robust 1200W single-output AC/DC power supplies designed for demanding applications. Accepting a universal input range of 180-264VAC (or 245-370VDC), this series provides various models with fixed DC output voltages spanning from 12V to 220V.Key features include high efficiency up to 91%, minimizing operational costs and heat. Comprehensive protection mechanisms are built-in, covering short circuits (via constant current limiting) and over-temperature conditions (with auto-recovery). The SE-1200W excels in flexibility, offering external control of output voltage and current using either potentiometers or analog 0-5V/0-10V signals. A remote ON/OFF control and a useful 12V/0.5A auxiliary output are also standard.Operating reliably within a -20℃to +60℃ temperature range (subject to derating), this power supply is housed in a 277*155*70mm enclosure, offering significant power density.
- Description
| Model | SE-1200-12 | SE-1200-24 | SE-1200-36 | SE-1200-48 | SE-1200-72 | SE-1200-96 | SE-1200-110 | SE-1200-150 | SE-1200-220 | |
| Output Characteristics |
DC output voltage | 12V | 24V | 36V | 48V | 72V | 96V | 110V | 150V | 220V |
| Rated current | 83.3A | 41.7A | 27.8A | 20.8A | 13.9A | 10.4A | 9.1A | 6.7A | 4.5A | |
| Current range | 0-83.3A | 0-41.7A | 0-27.8A | 0-20.8 | 0-13.9A | 0-10.4A | 0-9.1A | 0-6.7A | 0-4.5A | |
| Rated Power | 1200W | |||||||||
| Ripple | 200mV | 200mV | 260mV | 350mV | 500mV | 600mV | 850mV | 900mV | 1000mV | |
| Constant current range | 6-12V | 12-24V | 18-36V | 24 -48V | 36-72V | 48-96V | 55-110V | 75-150V | 110-220V | |
| Voltage accuracy | ±1.0% | |||||||||
| Line Regulation | ±1.0% | |||||||||
| Load Regulation | ±1.0% | |||||||||
| Startup&Rise Time | 1500mS,100mS/230VAC(Fully loaded) | |||||||||
| Voltage range | 180-264VAC/245-370VDC | |||||||||
| Input characteristics |
Frequency range | 45Hz-65Hz | ||||||||
| Power Factor | PF≥0.65/230VAC(Fully loaded) | |||||||||
| Efficiency | 85% | 86% | 87% | 89% | 90% | 90% | 90% | 91% | 91% | |
| AC Current | <11A | |||||||||
| Leakage Current | 3.0mA/240VAC | |||||||||
| Short Circuit | Enter constant current | |||||||||
| Over temperature | Shut down the output,and automatically recover or restart after the temperature drops | |||||||||
| Protection features |
Output voltage | 0-13.2V | 0-26.4V | 0-39.6V | 0-52.8V | 0-79.2V | 0-105.6V | 0-121V | 0-165V | 0-242V |
| OutpueeunstaitEurrent | 0-83.3A | 0-41.7A | 0-27.8A | 0-20.8A | 0-13.9A | 0-10.4A | 0-9.1A | 0-6.7A | 0-4.5A | |
| ExtermaPpsteetometer | External potentiometer control(voltage,current) | |||||||||
| Analog voltage control | 0-5V/0-10V control(voltage,current) | |||||||||
| Auxiliary power supply | 12V 0.5A | |||||||||
| Remote control switch | Default power on,high level power off(3V-12V) | |||||||||
| Environmental characteristics |
Operating temperature | -20-+60℃ | ||||||||
| Operating humidity | -20-90%RH without condensation | |||||||||
| Storage temperature/humidity | -40-+85℃,10-95%RH without condensation | |||||||||
| Vibration resistance | 10-500Hz,2G 10 minutes/cycle,60 minutes for each ofX,Y and Z axes | |||||||||
| Safety and electromagnetic compatibility |
Insulation resistance | Input to output:100Mhms/500VDC/25℃/70%RH | ||||||||
| Pressure resistance | I/P-0/P:1.2KVACI/P-FG:1.2KVAC 0/P-FG:0.5KVAC | |||||||||
| Product size | 277*155*70mm(L*W*H) | |||||||||
| Net weight | 2.6KG | |||||||||
| Remark | 1.All parameters are measured at 230VAC input voltage,rated load and 25℃ unless otherwise specified. 2.Ripple and noise voltage are measured with a 20MHz bandwidth oscilloscope with 0.lμ and 47μ capacitors added to the end of a 12-inch twisted pair,and measured at 20MHZ bandwidth 3.Accuracy:includes setting error,linear regulation rate and load regulation rate. 4.Output must be derated in low input voltage conditions,please refer to the static characteristic curve for details. 5.Startup time is measured under cold start,and frequent switching may increase the startup time.” |
|||||||||
