| Model Specification | SP-500-12 | SP-500-13.5 | SP-500-15 | SP-500-24 | SP-500-27 | SP-500-48 |
| DC Output Voltage | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Output Voltage Error | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated Output Current | 40A | 36A | 32A | 20A | 18A | 10A |
| Output Current Rage | 0-40A | 0-36A | 0-32A | 0-20A | 0-18A | 0-10A |
| Wave And Noise | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 200mVp-p | 300mVp-p |
| Inlet Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability(Note5) | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| DC Output Power | 480W | 486W | 480W | 480W | 486W | 480W |
| Efficiency | 84% | 84% | 83% | 85.50% | 86.50% | 87% |
| Adjustable Range for DC Voltage | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 24-30V | 41-56V |
| AC Input Voltage Range | 88132VAC/176264VAC BY SWITCH 4763Hz;124370VDC | |||||
| AC Input Current | 7A/115V 3.5A/230V |
|||||
| Power Factor | 0.95/100240VAC | |||||
| AC Impulse Current | 18A/115V 36A/230V | |||||
| Leakage Current | <3.5mA/240VAC | |||||
| Overload Protection | 105%135% TypePULSING HICCUP SHUTDOWN Reset: auto-recovery | |||||
| Over-voltage Protection | 13.816.2V | 15.518.2V | 1821V | 27.632.4V | 3136.5V | 57.667.2V |
| Fan Control, O.T.P. | RTH1 OR RTH2>=50 FAN ON, <=45 FAN OFF, >=70 Cut off output | |||||
| Temperature Coefficient | ±0.03% (050) | |||||
| Setup Rise Hold-up Time | 1.5s, 50ms, 20ms | |||||
| Vibration | 10500Hz, 2G 10min./1cycle, Period for 60min, EACH AXES | |||||
| Withstand voltage | Input and output interval3KVAC,Input and enclosure1.5KVAC Output and enclosure0.5KVAC | |||||
| Isolation Resistance | Input and output interval, Input and enclosure, Output and enclosure500VDC/100M Ohms | |||||
| Working Temperature And Humidity | -10+50, 20% 90% RH | |||||
| Store Temperature And Humidity | -20+85,10% 95% RH | |||||

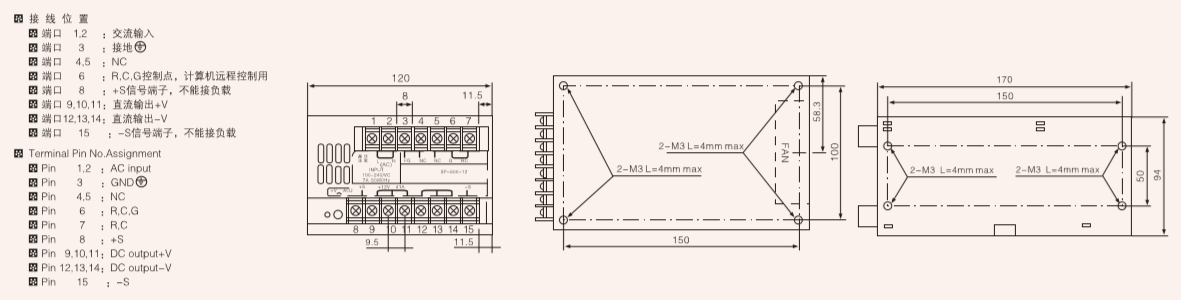

| Overall Dimension | 185*120*93mm | |||||
| Weight | 1.8Kgs | |||||
| Safety Standards | UL1950, TUV EN60950 | |||||
| EMC Standards | IEC1000-42, 3, 4, 5, 6, 8, 11 IEC100-3-2 | |||||
Single output with PFC function 500w smps 12v/24V48V switching power supply
SP-500 is a range of enclosed power supply units featuring universal AC input and built-in power factor correction (PFC).
The SP series ranges from 75 ~ 240W and includes built-in protections: short circuit, overload, over-voltage, and over temperature, either cooling by free air convection (SP-75 / SP-100 / SP-150) or cooling via built-in DC fan (SP-200 / SP-240).
Series options: SP-75, SP-100, SP-150, SP-200, SP-240 SP-320 SP-500 PSP-600.
If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.
- Description
This product is ideal for a number of LED lighting and mobile signage purposes.
This product meets global LED lighting safety standards.
The product’s operating temperature range is: -10′ C- +50′ C
Our partners can cooperate with us in OEM or ODM
We are a power supply manufacturer with 15 years of experience.
This product is both low-cost and reliable.
This product has a protection level of IP20.
