Model | MS-25-12 | MS-25-15 | MS-25-24 | |
Output | DC Output Voltage | 12V | 15V | 24V |
Output Voltage Tolerance | ±1% | ±1% | ±1% | |
Rated Output Current | 5A | 1.4A | 1.1A | |
Output Current Range | 0-5A | 0-1.4A | 0-1.1A | |
Output Power | 24W | 24W | 24W | |
Ripple And The Noise | 100mVp-p | 120mVp-p | 150mVp-p | |
Dc Voltage Adjustable Scope | ±10% | ±10% | ±10% | |
Start, Rise, Keep Time | 200ms, 50ms, 20ms/230VAC | |||
Input | Input Voltage Range | 170~264VAC 47~63Hz, 235~373VDC | ||
Exchange Input Current | 0.35A/230VAC | |||
Efficiency | 70% | 76% | 78% | |
Impulse Current | Cold start current 30A/230VAC | |||
Leakage Current | <0.5mA/240VAC | |||
Protection Characteristics | Overload Protection | Protection way: fold layer type load current limiting, abnormal conditions can be removed the recovery | ||
Environment | Working Temperature, Humidity | -10℃~+60℃; 20%~90%RH (Please refer to reduce the specified number load curve) | ||
Keep Temperature, Humidity | -20℃~+85℃; 10%~95%RH No condensation | |||
Vibrate Resistance | 10~500Hz, 2G 10min./1Cycle time, 60 minutes, the axis | |||
Security | Compression Sex | Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC | ||
Insulation Resistance | Between the input and output, the output and input: with the ground: 100 M / 500 VDC Ohms | |||
Complies With The Standards | Safety Standards | Meet the UL1012 requirements | ||
EMC Standard | Meet FCC PART15J conditions CLASS B | |||
Other | Weight | 0.15kg 84*58*38(L*W*H) | ||
Packaging | 0.15kg/80pcs/13kg/0.9CUFT | |||
Note | 1. All the parameters have not been specified, all are in 230V voltage input, AC-rated load, and 25℃ conditions measuring income value. | |||
2. Ripple and noise voltage are in 20MHz bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0.1mu and 47 muons capacitance measurement when. | ||||
3. Tolerance is voltage setting error, the voltage adjustment rate, and adjusting the sum total of the current rate. |
small size 25w ac/dc power supply
WeHo’s MS-25 series Power supply is a mini-type enclosed power supply
It is a high-price-to-performance power supply solution for different industrial applications.
The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.
If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.
- Description
The white cap on the connector is for safety precautions against electric shock and dust protection
We can customized different voltage of output 12v 24v 13.5v 27v 36v 48v 60v 70v 110v
We make transformers and power inductors with pure coppers all by ourselves,
Weho stocks 150,000 sets of commonly used models, ensuring quick delivery.
We are a power supply manufacturer with 15 years of experience.
This product has a universal AC input that is full range (up to 264VAC).
This product has a minimum order quantity of 100 pieces and can be customized with labels.
The product has completed the 100% full load aging test.

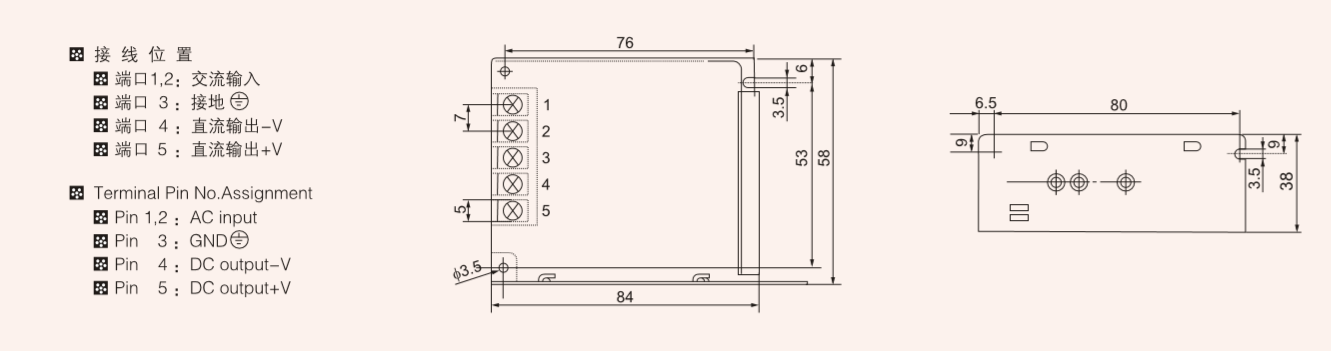

Product size: 84*58*38mm (L * W * H)
