Model | SC-120-12 | SC-120-24 | ||
DC Voltage | CH1: 13.8V | CH1: 13.4V | CH1: 27.6V | CH2: 26.5V |
Voltage Tolerance | ±1% | —– | ±1% | —– |
Rated Current | 8A | 0.5A | 4A | 0.3A |
Current Range | 0~8A | —– | 0~4A | —– |
Rated Power | 117.1W | 118.4W | ||
Ripple & Noise | 120mvp-p | —– | 180mvp-p | —– |
DC Voltage ADJ. Range | CH1:12.5~15.0V | CH1:24.0~30.0V | ||
Efficiency | 81% | 83% | ||
Input Voltage Range | 90~132VAC/180~264VAC(selected by switch), 255~370VDC | |||
Frequency | 47~63HZ | |||
Input AC Current | 2.8A/115VAC, 1.4A/230VAC |
|||
Inrush Current | Cold-start current: 30A/115VAC, 50A/230VAC |
|||
Leakage Current | < 2.5mA/240VAC | |||
Over Load Protection | Rated output power 110%~150% start over-load protection | |||
Protection type: AC charging mode, hiccup mode, auto-recovery after fault condition is removed | ||||
Battery Protection At Low Voltage | 9.5~11V | 20~22V | ||
Protection mode: cutoff output, | ||||
UPS Introduction | Long-term online floating charge to the battery, high charging efficiency, the battery can saturate to more than 90%; | |||
Auto-stop charging when it’s full, percent overcharging. Effectively extend battery life; | ||||
AC/battery auto switch, no switching time, no need for human guard; | ||||
Cold-start, when there is no AC input, can use battery start UPS, Meet the user’s emergency needs. | ||||
Working Temp, Humidity | -10℃ ~ +60℃, 20%~ 90%RH | |||
Storage Temp, Humidity | -20℃ ~ +85℃, 10% ~ 95%RH Non-condensing | |||
Withstand Voltage | I/P-O/P: 1.5KVAC; I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC |
|||
Isolation Resistance | I/P-O/P: I/P-FG: O/P-FG: 100M ohms/500VDC | |||

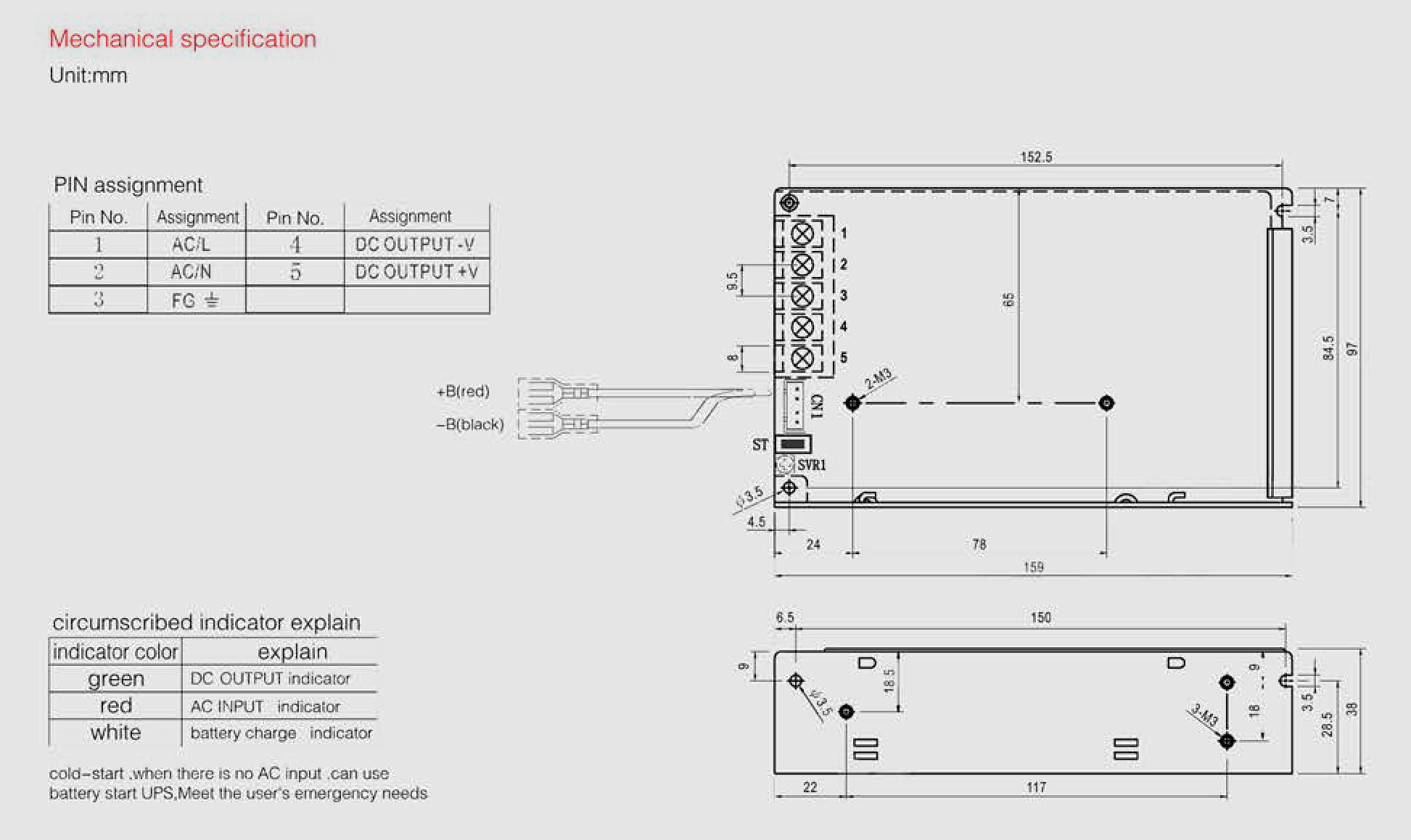

Dimension | 159*97*38mm (L*W*H) | |||
Weight/Packing | 0.56kg/45pcs |
UPS 120w AC to DC single output power supply for battery charge
WeHo’s SC-120 series Power supply is Premium quality material that ensures long-term service.
Which regulated Switching Power Supply is 100% brand new and high-quality material, which is worn resistance to ensure a long-term service
EASY TO INSTALL-This Regulated Switching Power Supply is simple to wire for easy installation and use.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
It is complied with the international CE ROHS
Our products have a long lifespan, are highly reliable, and are very efficient.
This Product Input Voltage 85~132VAC/176~264VAC(selected by switch)
The product can be cooled by convection of natural air.
All products have passed CE and ROHS certification with guaranteed quality.
Size:159*97*38mm (L*W*H)
