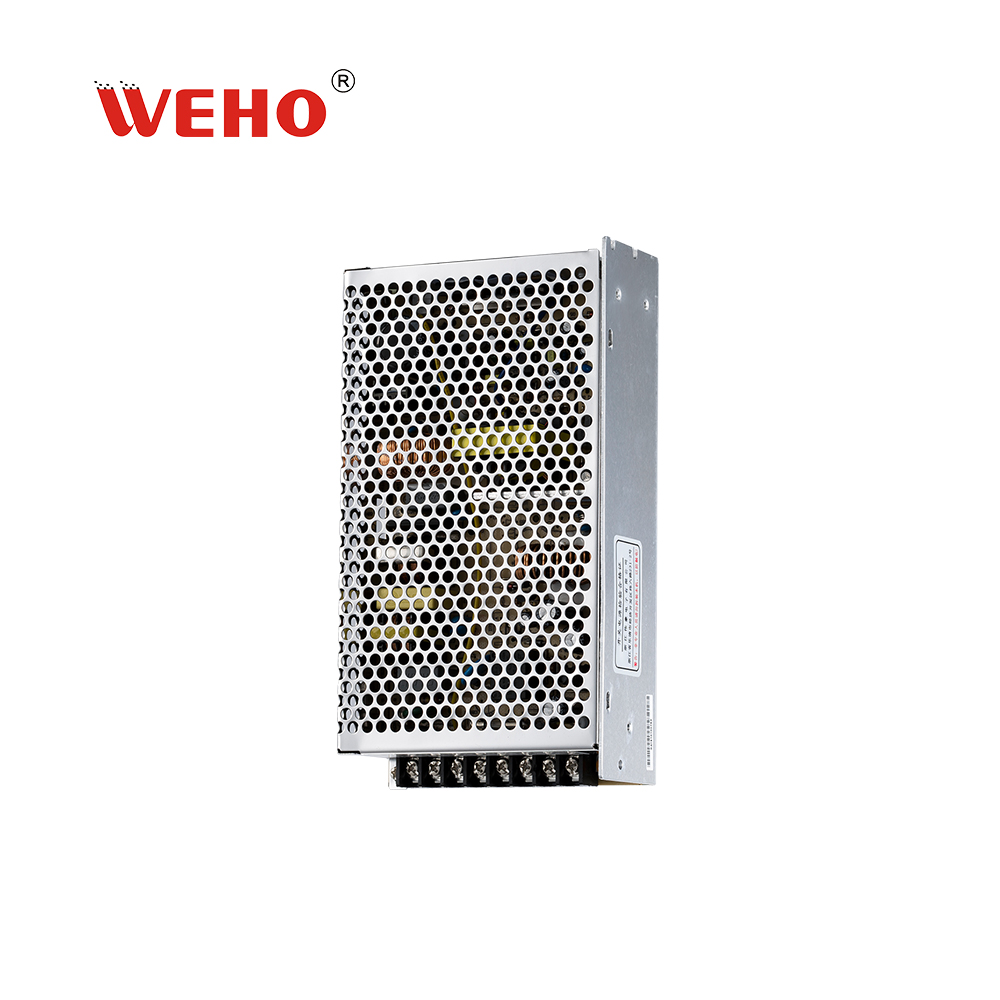

UPS 155w AC to DC single output power supply with battery charger

AD-155 Security power supplies have a primary output, and there is a charger output with a smaller rated current, enabling the backup power supply application for security access systems.

Security power supplies also come with safety features like a short circuits, over-voltage, and over-load protection.

Optional features are available for UPS versions, including a battery with low protection and alarm signals.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Request A Quote

Description

Specifications&Model

Model	AD-155A		AD-155B
DC Voltage	CH1:13.8V	CH1:13.3V	CH1:27.6V	CH2:27.1V
Rated Current	10.5A	0.5A	5A	0.5A
Current Range	0~11.5A	—–	0~5.5A	—–
Rated Power	151.55W		151.55W
Ripple & Noise	150mvp-p	—–	150mvp-p	—–
DC Voltage ADJ.Range	CH1: 12~14.5V		CH1: 24.0~29V
Input Voltage Range	85-264VAC 124-370VDC
Frequency	47~63HZ
Input AC Current	2.5A/115VAC, 1.5A/230VAC
Inrush Current	Cold-start current 23A/115VAC，45A/230VAC
Leakage Current	< 1mA/240VAC
Over Load Protection	105-135% rated power
	Protection type: AC Charging mode: hiccup mode, auto-recovery after fault condition is removed UPS mode: Protected by internal fuse
Over Voltage Protection	CH1: 15.87-18.63V		CH1: 31.74-37.26V
	Protection mode: shut down o/p voltage, re-power on to recover
Working Temp, Humidity	-10℃ ~ +60℃; 20%~90%RH
Storage Temp, Humidity	-20℃ ~ +85℃; 10%~95%RH Non-condensing
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P: I/P-FG: O/P-FG: 100M ohms/500VDC
Dimension	19911050mm (LWH)
Weight/Packing	0.88kg/20pcs

Design

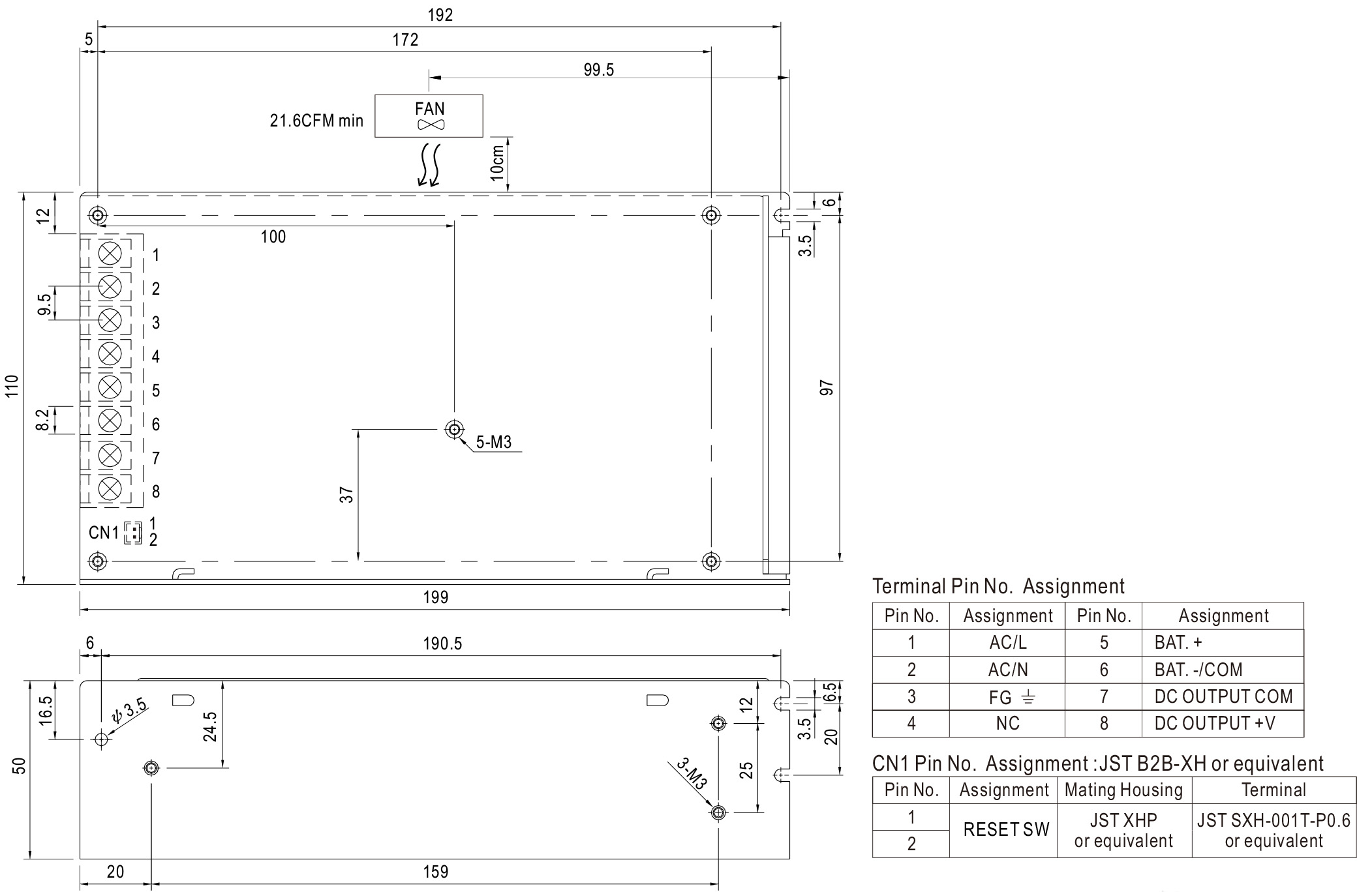

UPS 155w power supply with battery charger mechanical specification

Features

This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions.

This product has low battery and battery polarity protection functions.

This product has a fixed switching frequency of PFC 67KHz.

The product can be cooled by convection of natural air.

This product has a UPS function.
