| Model | XLG-250-12 | XLG-250-24 | XLG-250-36 | XLG-250-48 |
| DC output voltage | 12V | 24V | 36V | 48V |
| Rated output current | 16.5A | 10A | 7A | 5.2A |
| Current range | 0~16.5A | 0~10A | 0~7A | 0~5.2A |
| Output power | 198W | 240W | 252W | 250W |
| Wave and noise | 180mVp-p | 200mVp-p | 220mVp-p | 220mVp-p |
| Voltage accuracy | ± 3% | ± 2% | ± 2% | ± 2% |
| Line regulation | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Load regulation | ± 2% | ± 0.5% | ± 0.5% | ± 0.5% |
| Start, rise, hold time | 200ms，30ms，20ms/230VAC (at full load) | |||
| Input voltage range | 180 ~264VAC，235 ~373VDC | |||
| Frequency range | 47 ~ 63Hz | |||
| AC input current | 2.5A/230VAC | |||
| Efficiency | 91.0% | 92.0% | 92.5% | 93.0% |
| Impulse current | Cold start current 45A/230VAC | |||
| Leakage current | <2mA/240VAC | |||
| Overcurrent protection | 95%~108% of the rated output current starts overcurrent limit， recover automatically after abnormal conditions are removed |
|||
| Short circuit protection | Protection mode: Hiccup mode: recover automatically normal output after abnormal conditions are removed | |||
| Overvoltage protection | 115%~ 135% of rated output voltage startup overvoltage protection | |||
| Protection mode: Hiccup mode: recover automatically normal output after abnormal conditions are removed | ||||
| Over temperature protection | 95℃ ±10℃ (JK1 is next to the transformer/MOS tube surface detection) | |||
| Protection mode: Turn Off the output voltage, and the normal output can be automatically restored after the temperature drops |
||||
| Working temperature | -20℃~ +60℃ | |||
| Working humidity | 20% ～90% RH, non condensing | |||
| Storage temperature and humidity | -40℃~ +85℃；10% ～95% RH，non condensing | |||
| Seismic resistance | 10~500Hz,，3G 12min/ 1 cycle，X, Y, Z axes，duration 60 minutes | |||
| Pressure resistance | I/P~O/P：1.5KVAC I/P~FG：1.5KVAC O/P~FG：0.5KVAC | |||
| Isolation resistance | I/P~O/P，I/P~FG，O/P~FG: 100M Ohms/500VDC/25℃/70%RH | |||
| Safety standard | Compliance to UL60950-1，TUV EN60950-1 | |||
| Electromagnetic compatibility emission | Compliance to EN55022 Class A | |||
| Electromagnetic compatibility immunity | Compliance to EN55024 | |||

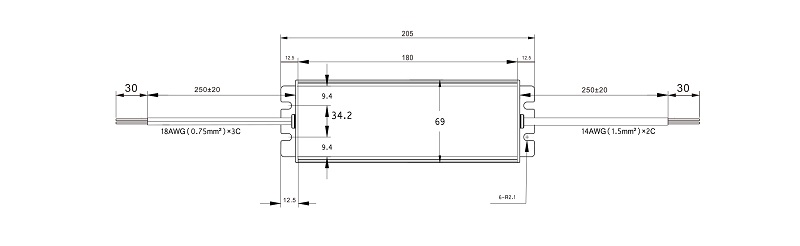

| Dimension | 205*69*43mm (L*W*H) | |||
| Packing | 0.85kg/16pcs/14kg/0.026 cubic meters | |||
Waterproof IP67 Constant Voltage LED Driver 12V 24V 36V 48V 250W AC DC Switching Power Supply
XLG-250W series is a waterproof AC to DC LED drive power supply. It is designed with constant voltage and constant power output. It uses 180 ~ 264VAC AC input for electric music. The whole series provides 12V, 24V, 36V and 48V output.
Due to its conversion efficiency of up to 93%, it adopts fanless design and can work in the cabinet temperature range of -20℃ to + 60℃ under natural air cooling and heat dissipation. The metal housing and the high IP65 / IP67 design make the XLG-250W series suitable for indoor or outdoor applications. Built-in 105 ℃ long-life aluminum electrolytic capacitor.
If you have any questions, please do not hesitate to contact us at Email: [email protected]
- Description
Application: Street Lighting, Wall washer lamp, Bay light, Fishing lights, Floodlight, Plant lighting, Building Lighting, Electronic instruments, equipment and devices.
