Waterproof IP67 LED driver AC 110v/220v to constant DC output 20W power supply

LPV-20 is a dedicated LED driving device that delivers a constant current/voltage or generates an adjustable current controlled by an external dimmer to LEDs.

Depending on its types or design concept, some of them not only have PFC capability but also can be located in harsh environments such as dusty, humid places.

LED power supplies include metal cases, plastic cases, and PCB types.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Download Request A Quote

Description

Specifications&Model

Model	LPV-20-12	LPV-20-24
DC Output Voltage	12V	24V
Output Voltage Error	±1%	±1%
Rated Output Current	1.5A	0.8A
Output Current Range	0-1.5A	0-0.8A
Wave And Noise	80mVp-p	80mVp-p
Inlet Stability	±0.5%	±0.5
Load Stability	±1%	±0.5%
DC Output Power	20W	20W
Efficiency	83%	83%
AC Input Voltage Range	170-264 VAC
Input Current	0.5A/115V 0.25A/230V
AC Impulse Current	Cold-start current 13A/115V 26A/230V
Leakage Current	<0.5mA/240VAC
Over Load Protection	105%~150% rated output power
	Protection: Hiccup mode
Over Voltage Protection	13~16V	28~32V
	Protection: Shut down the output voltage
Short Circuit Protection	Protection: Hiccup mode
Temperature Coefficient	±0.03%(050)
Setup Rise Hold-Up Time	200ms,100ms, 30ms
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand Voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH
Working Temperature And Humidity	-10℃ ~ +60℃, 20%~90%RH
Store Temperature And Humidity	-20℃ ~ +85℃, 10%~95%RH

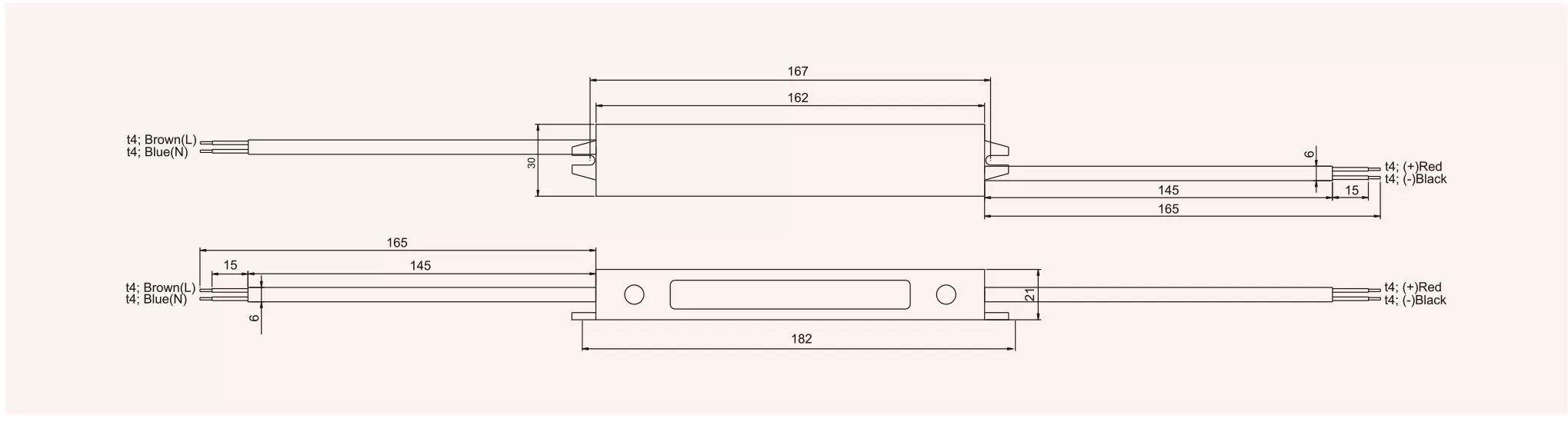

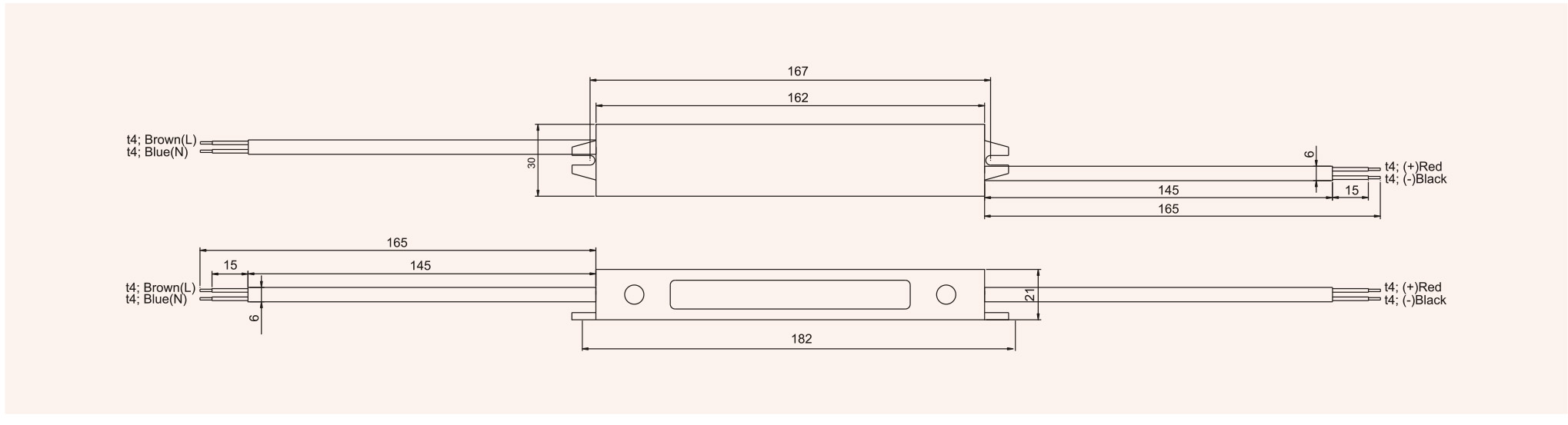

Overall Dimension	1833020mm
Weight	0.22Kgs
Safety Standards	Design refer to UL1012,EN60950-1, EN61347-1, EN-61347-2 approved
EMC	EN55015, EN55022, EN55024, EN61000-2,EN61000-3, EN61547
