| Model | LPV-60-5E | LPV-60-12E | LPV-60-15E | LPV-60-24E | LPV-60-36E | LPV-60-48E | |
| Output | DC Voltage | 5V | 12V | 15V | 24V | 36V | 48V |
| Rated Current | 8A | 5A | 4A | 2.5A | 1.67A | 1.25A | |
| Current Range | 0 ~ 8A | 0 ~ 5A | 0 ~ 4A | 0 ~ 2.5A | 0 ~ 1.67A | 0 ~ 1.25A | |
| Rated Power | 40W | 60W | 60W | 60W | 60W | 60W | |
| Ripple & Noise (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| Voltage Tolerance | ±8.0% | ±5.0% | |||||
| Line Regulation | ±1.0% | ||||||
| Load Regulation | ±6.0% | ±2.0% | |||||
| Setup, Rise Time | 500ms, 20ms/230VAC; 500ms, 20ms/115VAC at full load(for 5-36V); 500ms, 30ms/230VAC; 500ms, 30ms/115VAC at full load (for 48V) |
||||||
| Hold UP Time (Typ.) | 50ms/230VAC 16ms/115VAC at full load |
||||||
| Input | Voltage Range | 90 ~ 264VAC 127 ~ 370VDC |
|||||
| Frequency Range | 47 ~ 63Hz | ||||||
| Efficiency (Typ.) | 78% | 83% | 83% | 86% | 86% | 86% | |
| AC Current (Typ.) | 1.2A/115VAC 1A/230VAC | ||||||
| Inrush Current (Typ.) | Cold Start 60A(twidth=525μs measured at 50% Ipeak) at 230VAC | ||||||
| MAX. No. of PSUs on 16A | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | ||||||
| Circuit Breaker | |||||||
| LEAKAGE CURRENT | 0.25mA / 240VAC | ||||||
| Protection | Over-load | 110 ~ 150% rated output power | |||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||
| Over Voltage | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | 41.4 ~ 48.6V | 55.2 ~ 64.8V | |
| Protection type: Shut down o/p voltage, re-power on to recover | |||||||
| Environment | Working Temp | -30 ~ +70℃(Refer to “Derating Curve”) | |||||
| Working Humidity | 20 ~ 90%RH non-condensing | ||||||
| Storage Temp, Humidity | -40 ~ +80℃, 10 ~ 95%RH | ||||||
| Temp Coefficient | ±0.03%/℃ (0 ~ 50℃) | ||||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along the X, Y, and Z axes | ||||||
| Safety & EMC | Safety Standards | IP67 approved; design refer to EN60950-1 | |||||
| Withstand Voltage | I/P-O/P: 1.5KVAC | ||||||
| Isolation Resistance | I/P-O/P: >100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC Emission | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3 | ||||||
| EMC Immunity | Compliance to EN55024, light industry level, criteria A | ||||||
| OTHERS | MTBF | 732Khrs min. MIL-HDBK-217F (25℃) | |||||

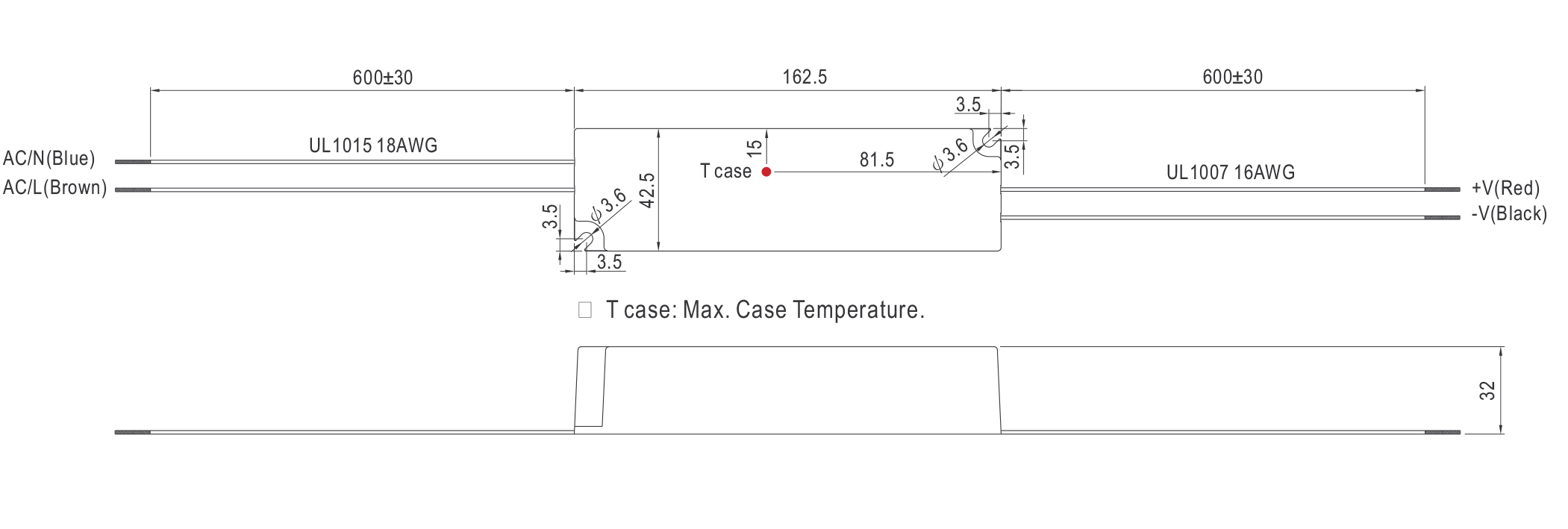

| Dimension | 162.5*42.5*32mm (L*W*H) | ||||||
| Packing | 0.4Kg; 32pcs/13.8Kg/0.56CUFT | ||||||
Waterproof IP67 plastic LED driver AC 110v/220v to constant DC output 60W power supply
LPV-60E power supply series is a fantastic AC-to-DC converter for delivering constant voltage in wet and dusty environments.
It comes from LPV Series Plastic Waterproof Power Supply Series which operates off-line voltage (90-264VAC) and delivers constant voltages from 5-48VDC depending on your selection.
The 20 to 60 Watt models qualify as Class 2 power units offered in a slim, butter stick design.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
The product has perfect protection function and 5G shock resistance.
Our products have a long lifespan, are highly reliable, and are very efficient.
This product is ideal for a wide variety of LED lighting and equipment.
This product has a full range of input voltage 85-264VAC.
The product adopts a fully isolated plastic shell.
