| Model | LPV-20-5E | LPV-20-12E | LPV-20-15E | LPV-20-24E | |
| Input | DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 3A | 1.67A | 1.33A | 0.84A | |
| Current Range | 0 ~ 3A | 0 ~ 1.67A | 0 ~ 1.33A | 0 ~ 0.84A | |
| Rated Power | 15W | 20W | 20W | 20.2W | |
| Ripple & Noise (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | |
| Voltage Tolerance | ±5.0% | ||||
| Line Regulation | ±1.0% | ||||
| Load Regulation | ±2.0% | ||||
| Setup, Rise Time | 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load |
||||
| Hold UP Time (Typ.) | 50ms/230VAC 16ms/115VAC at full load |
||||
| Input | Voltage Range | 90 ~ 264VAC 127 ~ 370VDC |
|||
| Frequency Range | 47 ~ 63Hz | ||||
| Efficiency (Typ.) | 77% | 81% | 83% | 83% | |
| AC Current (Typ.) | 0.55A/115VAC 0.35A/230VAC |
||||
| Inrush Current (Typ.) | Cold start 70A(twidth=215μs measured at 50% Speak) at 230VAC | ||||
| MAX. No. of PSUs on 16A | 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC | ||||
| Circuit Breaker | |||||
| Leakage Current | 0.25mA / 240VAC | ||||
| Protection | Over-load | 110 ~ 150% rated output power | |||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
| Over Voltage | 5.75 ~ 6.75V | 13.8 ~ 16V | 17.5 ~ 21V | 28 ~ 32V | |
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Environment | Working Temp | -30℃ ~ +70℃ (Refer to “Derating Curve”) | |||
| Working Humidity | 20% ~ 90% RH non-condensing | ||||
| Storage Temp, Humidity | -40℃ ~ +80℃, 10% ~ 95%RH | ||||
| Temp Coefficient | ±0.03%/℃ (0 ~ 50℃) | ||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along the X, Y, and Z axes | ||||
| Safety & EMC | Safety Standards | IP67 approved; design refer to EN60950-1 | |||
| Withstand Voltage | I/P-O/P: 1.5KVAC | ||||
| Isolation Resistance | I/P-O/P: >100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC Emission | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3 | ||||
| EMC Immunity | Compliance to EN55024, light industry level, criteria A | ||||
| Others | MTBF | 786.5Khrs min. MIL-HDBK-217F (25℃) | |||

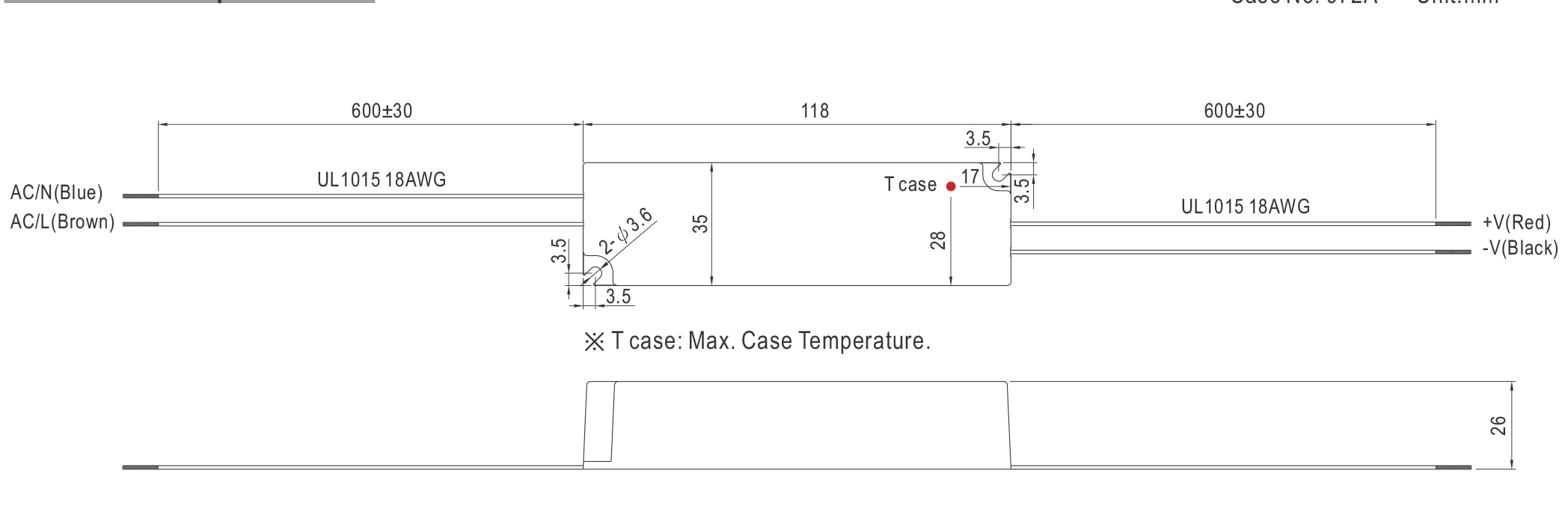

| Dimension | 118*35*26mm (L*W*H) | ||||
| Packing | 0.22Kg; 60pcs/14.2Kg/0.62CUFT | ||||
Waterproof IP67 plastic LED driver AC 110v/220v to constant DC output 20W power supply
LPV-20E power supply series is a fantastic AC-to-DC converter for delivering constant voltage in wet and dusty environments.
It comes from LPV Series Plastic Waterproof Power Supply Series which operates off-line voltage (90-264VAC) and delivers constant voltages from 5-48VDC depending on your selection.
The 20 to 60 Watt models qualify as Class 2 power units offered in a slim, butter stick design.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions.
This product is suitable for LED-related lamps or appliances.
This product is fully encapsulated to IP67.
The product adopts a fully isolated plastic shell.
This product adopts a constant voltage design.
