| Model | LPV-100-5E | LPV-100-12E | LPV-100-15E | LPV-100-24E | LPV-100-36E | LPV-100-48E | |
| Output | DC Voltage | 5V | 12V | 15V | 24V | 36V | 48V |
| Rated Current | 12A | 8.5A | 6.7A | 4.2A | 2.8A | 2.1A | |
| Current Range | 0 ~ 12A | 0 ~ 8.5A | 0 ~ 6.7A | 0 ~ 4.2A | 0 ~ 2.8A | 0 ~ 2.1A | |
| Rated Power | 60W | 102W | 100.5W | 100.8W | 100.8W | 100.8W | |
| Ripple & Noise (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| Voltage Tolerance | ±8.0% | ±5.0% | |||||
| Line Regulation | ±1.0% | ||||||
| Load Regulation | ±6.0% | ±2.0% | |||||
| Setup, Rise Time | 2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC |
||||||
| Hold Time (Typ.) | 50ms/230VAC 14ms/115VAC at full load |
||||||
| Input | Voltage Range | 90 ~ 264VAC 127 ~ 370VDC | |||||
| Frequency Range | 47 ~ 63Hz | ||||||
| Efficiency(Typ.) | 80% | 85% | 87% | 88% | 88% | 89% | |
| AC Current | 2.2A/115VAC 1.2A/230VAC | ||||||
| Inrush Current (max.) | COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC | ||||||
| Circuit Breaker | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | ||||||
| Leakage Current | 0.25mA / 240VAC | ||||||
| Protection | Over-load | 110% ~ 150% rated output power | |||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||
| Over Voltage | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | 41.4 ~ 48.6V | 55.2 ~ 64.8V | |
| Protection type: Shut down o/p voltage, re-power on to recover | |||||||
| Environment | Working Temp | -25°C ~ +70°C (Refer to “Derating Curve”) | |||||
| Working Humidity | 20% ~ 90%RH non-condensing | ||||||
| Storage Temp. Humidity | -40°C ~ +80°C; 10% ~ 95% RH | ||||||
| Temp Coefficient | ±0.03%/°C (0 ~ 50°C) | ||||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along the X, Y, and Z axes | ||||||
| Safety & EMC | Safety Standards | IP67 approved; design refer to EN60950-1 | |||||
| Withstand Voltage | I/P-O/P: 1.5KVAC | ||||||
| Isolation Resistance | I/P-O/P: >100M Ohms / 500VDC / 25°C/ 70% RH | ||||||
| EMC Emission | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3 | ||||||
| EMC Immunity | Compliance to EN55024, light industry level, criteria A | ||||||
| Others | MTBF | 703Khrs min. MIL-HDBK-217F (25°C) | |||||

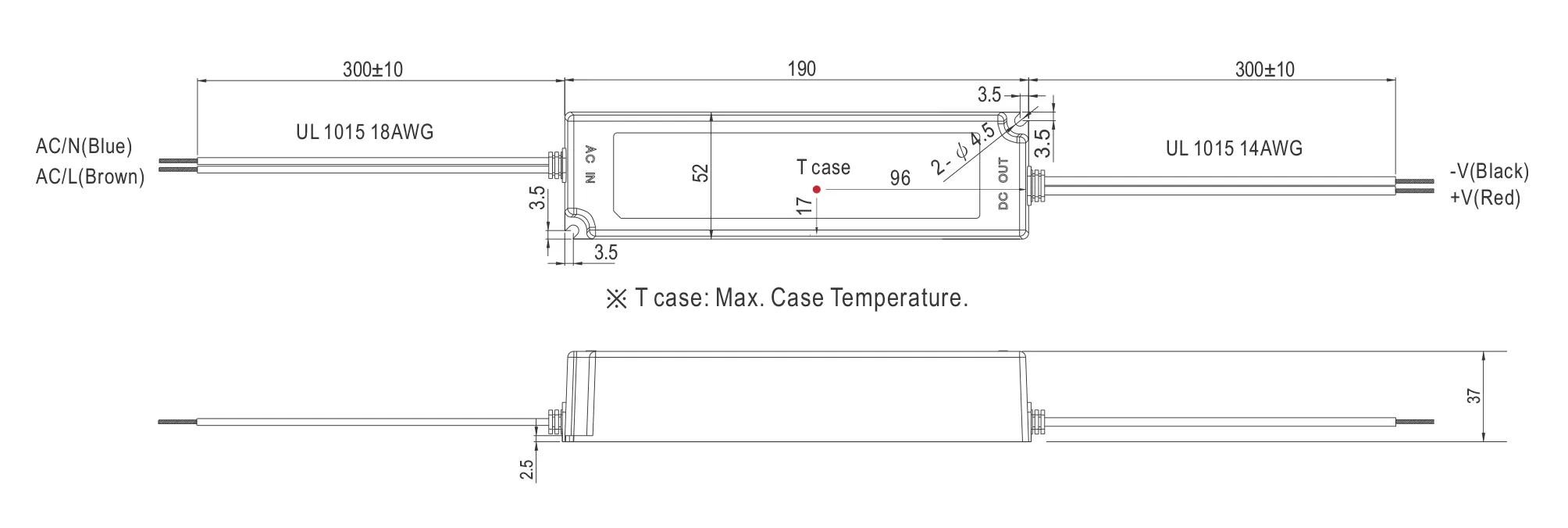

| Dimension | 190*52*37mm (L*W*H) | ||||||
| Packing | 0.63Kg; 20pcs/13.6Kg/0.55CUFT | ||||||
Waterproof IP67 plastic LED driver AC 110v/220v to constant DC output 100W power supply
LPV-100E power supply series is a fantastic AC-to-DC converter for delivering constant voltage in wet and dusty environments.
It comes from LPV Series Plastic Waterproof Power Supply Series which operates off-line voltage (90-264VAC) and delivers constant voltages from 5-48VDC depending on your selection.
The 20 to 60 Watt models qualify as Class 2 power units offered in a slim, butter stick design.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
It allows the end system to easily meet the worldwide energy requirement.
We are 100% responsible for quality.
This product has a universal AC input that is full range.
The product adopts a fully isolated plastic shell.
This product size is small and compact type.
