WEHO 40W single output DIN Rail switching power supply

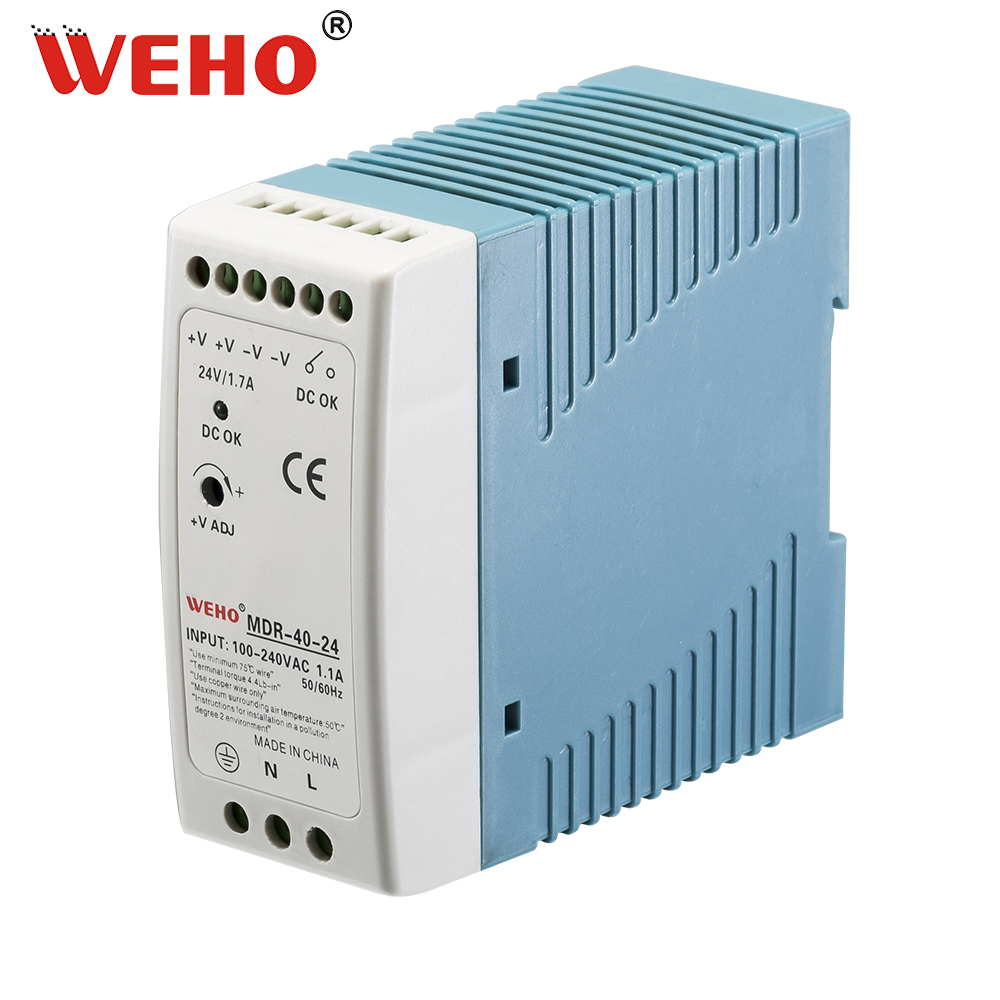

MDR-40 is a slim line DIN rail Class I switching power supply.

Designed with a fully isolated plastic case to prevent user contact and the risk of shock.

Featuring up to 88% efficiency this series can be cooled using only free air convection up to 60°C which significantly increases the reliability and lifetime of the power supply.

Other standard features include its low no-load power consumption, to save energy, short circuit, overload, and over voltage protections, and DC OK relay contact with LED indicator for monitoring the PSU status.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Download Request A Quote

Description

Specifications&Model

Model	Output	Tolerance Voltage	Ripple and Noise	Efficiency
MDR-40-5	5V, 0-6.0A	± 2%	80mvp-p	78%
NDR-40-12	12V, 0-3.3A	± 1%	120mvp-p	86%
MDR-40-15	15V, 0-2.66A	± 1%	120mvp-p	88%
MDR-40-24	24V, 0-1.7A	± 1%	200mvp-p	88%
1. Universal AC input/ Full range
2. Installed on DIN rail TS35/ 7.5 OR 15
3. Protection: short circuit/ over-load/ over-voltage
4. No load power consumption <0.75W
5. LED indicator for power on
6. DC OK signal output (20W)
7. DC OK relay contact (40W&60W)
8. Cooling by free air condition
9. 100% full load burn-in
10. 2 years warranty
Specification:
1. AC input voltage range: 85-264VAC; 120-370VDC
2. AC input current: cold start, 30A at 115VAC, 60A at 230VAC
3. DC adjustment range: 0±20% rated output voltage
4. Over-load protection: 105-150% constant current limiting, auto-recovery
5. Over-voltage protection: 125%-150% rated output voltage
6. Setup, rise, hold up time: 500ms,30ms,50ms AT FULL LOAD AND 230VAC
7. Withstand voltage: I/P-O/P:3KVAC, I/P-FG: 1.5KVAC, 1minute
8. Working temperature: -20-60°C@100%, 70°C@50% load
9. DC OK signal: relay contact
10. EMC standards: EN55022 class B, EN61000-3-2,-3, EN50204, EN61000-4-2,3,4,5,6,8,11, EN61204-3, (EN61000-6-2 heavy industry level also for 40W&60W)
11. Connection: I/P: 3 poles, O/P: 3poles screw DIN terminal

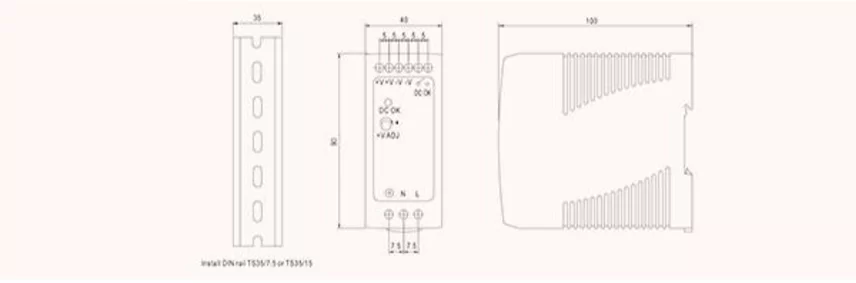

12. Dimension (LWH): 4090100 mm
Please Note:
1. The testing condition for the parameter above is: 230VAC input, rated load, 25°C 70%Rh, Humidity.
2. Error, include the setting error, line stability and load stability.
3. Wave test: adopting “A12” double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.
4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage.
5. Load stability test: the load is from 0% to 100%, others 60%.
6. Total stability test: the load is from 0% to 100%, others 60%.
7. C2, 3, 6 must be knocked down.
