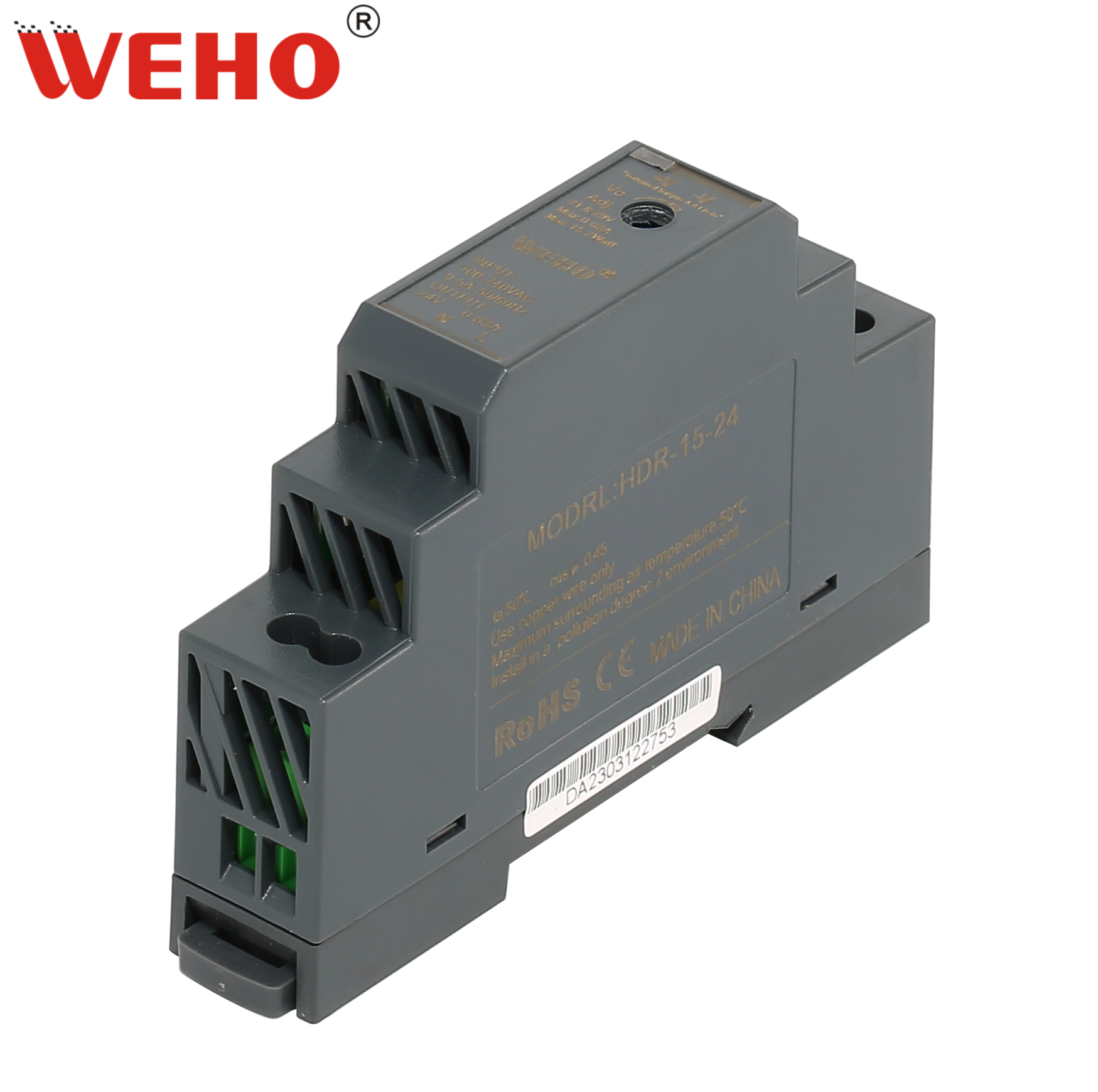

WEHO HDR-15W Industrial AC DC 5V 12V 24V 48V Slim DIN Rail Power Supply
WeHo’s HDR-15W series is a single output 15W Ultra Slim Step Shape DIN Rail Power Supply with a full range 86-264VAC input.
Offering a reliable switching power supply, this line offers an output voltage line of 5V, 12V, 24V, and 48V made with high-quality components for durability and safety.
Furthermore, its low no-load power consumption and protections against short circuits, overload, and overvoltage add great value to it.
The HDR-15W Industrial Slim DIN Rail Power Supply is a compact and reliable power supply solution for industrial automation and control systems, providing stable and efficient power to various industrial devices and equipment.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
| Model | HDR-15-5 | HDR-15-12 | HDR-15-24 | HDR-15-48 |
| DC Output Voltage | 5V 0~2.4A | 12V 0~1.25A | 24V 0~0.63A | 48V 0~0.32A |
| Wave And Noise | 80mVp-p | 120mVp-p | 150mVp-p | 240mVp-p |
| Inlet Wire Stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 78% | 83% | 84% | 84% |
| Adjustable Range For DC Voltage | ±10% | ±10% | ±10% | ±10% |
| Input Voltage Range | 85~264VAC; 120~370VDC; 47~63Hz | |||
| Impact Current | Cold start Current: 35A/115VAC; 65A/230VAC |
|||
| Overload Protection | 105% -160% cut off the output, automatic recovery | |||
| Other Protection | Overcurrent protection / Short-circuit protection | |||
| Setup, Rise, Hold Up Time | 800ms, 60ms, 50ms/230VAC at full load | |||
| Withstand Voltage | I/P-O/P: 1.5kV | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ | |||
| Working Temperature | -10℃ ~ +50℃ | |||

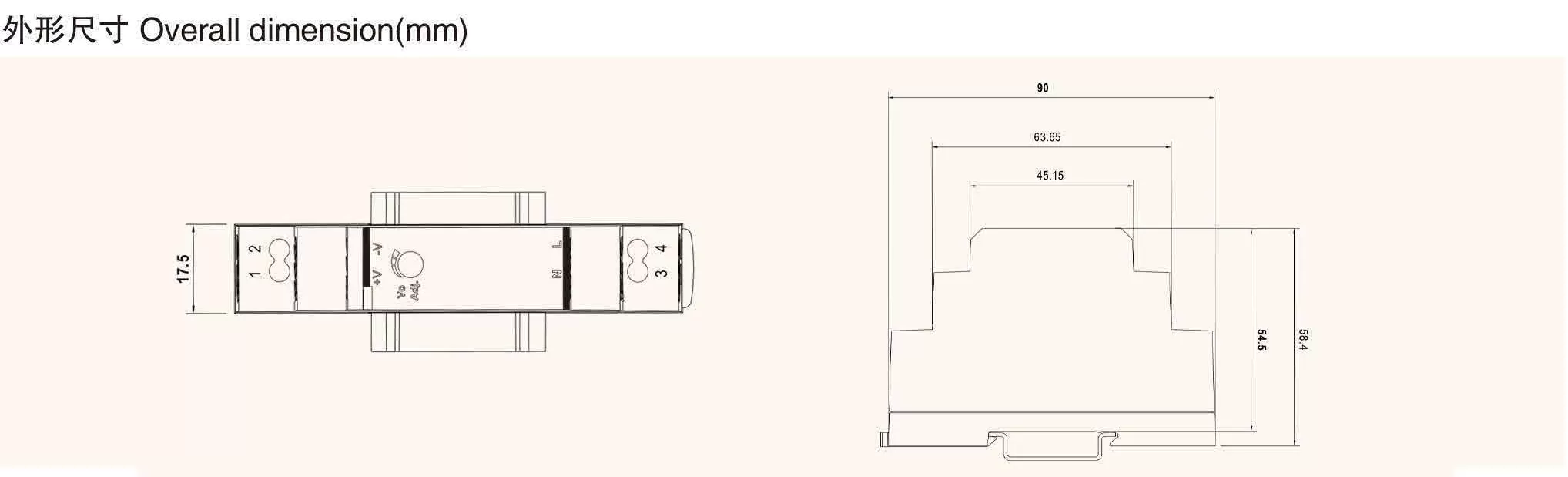

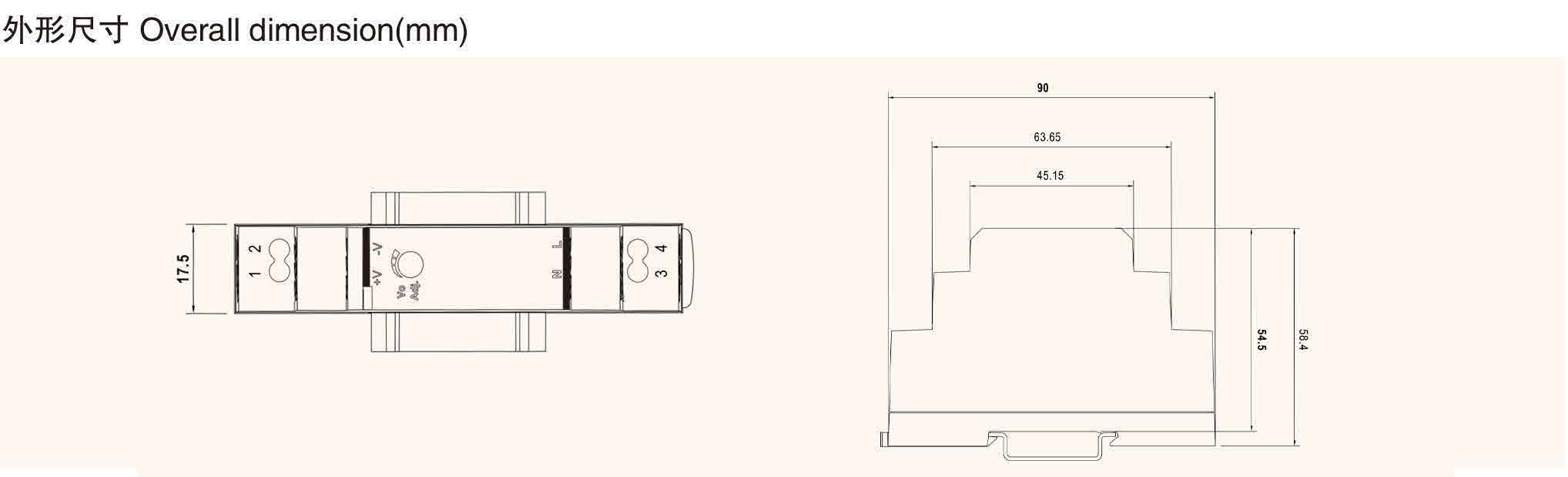

| Dimension | 17.5x90x54.5mm | |||
| Weight | 0.078kg | |||
Features of the HDR-15W Industrial Slim DIN Rail Power Supply
The HDR-15W Industrial Slim DIN Rail Power Supply is a type of power supply commonly used in industrial automation and control systems. It is designed to be mounted on a DIN rail, which is a standard mounting rail used in industrial environments for easy installation and maintenance.
Slim form factor: The HDR-15W power supply is designed with a slim profile, which allows it to fit into tight spaces on the DIN rail, saving space in industrial control panels or cabinets.
Wide input voltage range: The HDR-15W power supply may support a wide input voltage range, such as 85-264VAC or 120-370VDC, making it compatible with various industrial power sources and suitable for global applications.
Output voltage options: The power supply may offer multiple output voltage options, such as 5VDC, 12VDC, or 24VDC, which can be selected based on the requirements of the industrial equipment or devices being powered.
Protection features: The HDR-15W power supply may come with protection features such as overvoltage protection, overcurrent protection, short circuit protection, and thermal protection, which help to safeguard the connected devices from potential damage due to electrical faults.
Wide operating temperature range: The power supply may be designed to operate in a wide temperature range, such as -10°C to +50°C, allowing it to function reliably in harsh industrial environments with extreme temperatures.
Compliance with industrial standards: The HDR-15W power supply may comply with various industrial standards, such as UL508, EN61000, and IEC60950, ensuring its safety and reliability in industrial applications.
