QM15-23BxxR2 AC DC On Board

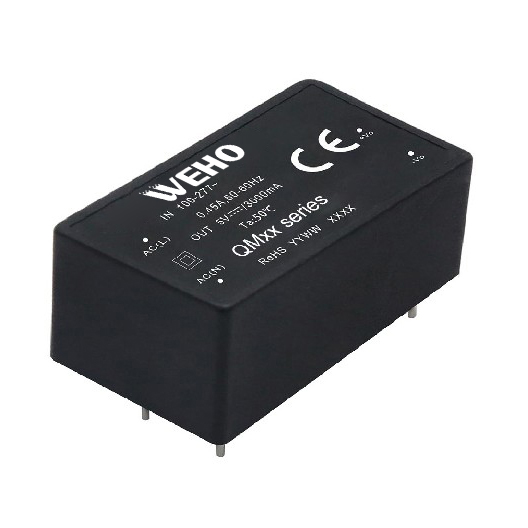

The QM15-23BxxR2 is a high-performance 15W AC/DC power module built for reliability and global compliance. Featuring a universal input range of 85305VAC 4763Hz, it delivers a regulated single output with 4000VAC isolation, ensuring safe operation in industrial, medical, and consumer electronics. Achieving up to 87% efficiency and standby power below 0.1W, it optimizes energy savings while minimizing heat dissipation. Engineered for extreme environments, it operates flawlessly across -40°C to +85°C and includes over-current and short-circuit protection for robust fault tolerance. The compact DIP package saves space in dense layouts, while RoHS compliance and certifications to IEC/EN/UL62368-1, EN60335, EN61558, and CISPR32/EN55032 Class B EMI standards guarantee global regulatory adherence. Ideal for smart appliances, telecom systems, or renewable energy installations, this module combines high power density, advanced safety features, and a 3-year warranty for mission-critical applications demanding durability and efficiency.
- Description
Features
1.Rated power: 15W
2.Universal input: 85~305VAC 47~63Hz
3.Regulated single output Isolation voltage 4000VAC Typical efficiency up to 87%
4.Energy saving, standby power only less than 0.1W
5.Operating temperature range:-40~+85°C
6.RoHS compliance Compact DIP package
7.Over current and short circuit protection
8.Meet IEC/EN/UL62368-1, EN60335, EN61558, CISPR32, EN55032 Class B
9.3 year warranty
Model Number | InputVoltage[VAC] | OutputVoltage[VDC] | OutputCurrent[mA]Max. | Efficiency[%]Typ. | CapacitiveLoad[uF]Max. |
QM15-23B03R2 | 85~305VAC 100~430VDC |
3.3 | 4000 | 79 | 6600 |
QM15-23B05R2 | 5 | 3000 | 80 | 5000 | |
QM15-23B09R2 | 9 | 1670 | 84 | 3000 | |
QM15-23B12R2 | 12 | 1250 | 85 | 2000 | |
QM15-23B15R2 | 15 | 1000 | 85 | 1500 | |
QM15-23B24R2 | 24 | 625 | 87 | 680 |
