| Description | Model | WH-C1205 |
| Rated Output Power (W) | 60W | |
| Rated Input Voltage (V) | 12VDC | |
| Rated Output Voltage (V) | 24VDC | |
| Input | Voltage Range (V) | 18V-32VDC |
| Starting Voltage (V) | 18VDC 100﹪load | |
| No-load Power Consumption (W) | ＜ 0.01W | |
| Efficiency | 95％ | |
| Output | Voltage (V) | VOUT: 12VDC |
| Current(A) | 5A | |
| Voltage Tolerance | 1％ | |
| Load Regulation | 3％ | |
| Wave (MVP-p) | 100mv | |
| Protection | Over-current Protection | In the case of rated output, if the rated current is 5.3A±0.25A, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears. |
| Short Circuit Protection | Equal to maximum current 5A output voltage 0V | |
| Insulation | Input-Output | Non-isolated |
| Waterproof | Fully sealed and waterproof | |

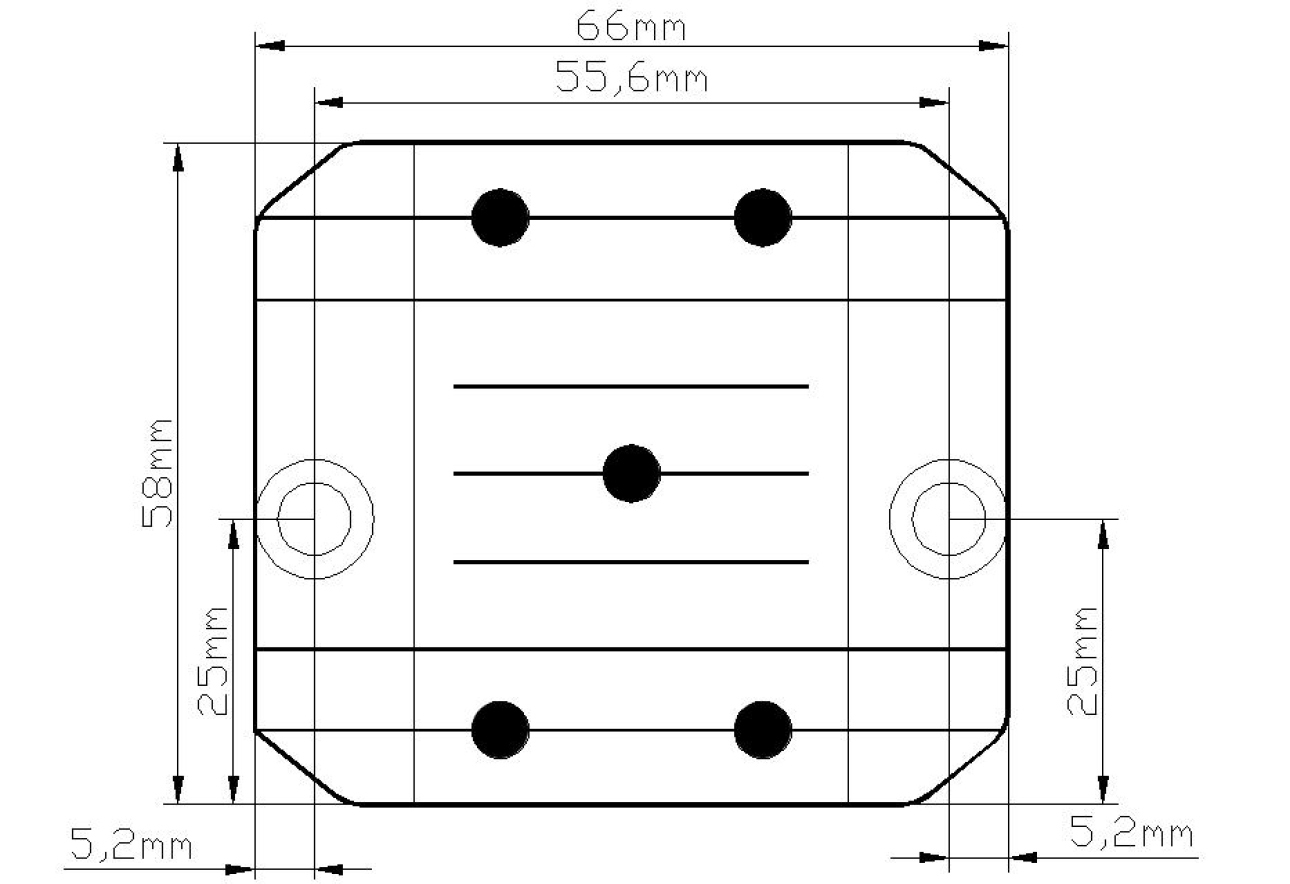

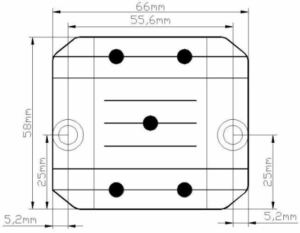

| Others | Dimension | 66*58*23mm |
| Cooling Method | Natural Method | |
| Rated Temperature rise (℃) | 45℃ | |
| Reliability | ＞100000h | |
| Wire Indicator | Input Positive (Red)，Input/Output Negative (Black)，Output Positive (Yellow) Length=160mm± 10mm □ |
DC-DC Buck Converter, 24V to 12V 5A
The 24V to 12V mini DC-DC buck converter series is an inexpensive, compact, and highly reliable power converter with a wide input voltage from 18V to 36, a wide power range from 18W to 1200W, and low energy consumption.
It is an industrial-grade buck converter with up to 97% efficiency. With such a wide range of input voltage and power, this converter is perfect for use in a variety of industries.
If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.
- Description
● The DC-DC buck converter has a wide input voltage range of 18V to 32V.
● The DC-DC buck converter adopts a new die-casting aluminum casing, high-quality design, and the highest transmission efficiency reaches 97%.
● The DC-DC buck converter has an IP68 waterproof rating, making it resistant to moisture and shocks.
● The DC-DC buck converter will automatically reset itself once the device has resumed functioning as normal.
● DC-DC buck converter with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, short circuit protection functions
● Industrial grade 24VDC to 12VDC buck converter, widely used in automobile, electric power, monitoring system, railway signal, and other fields
